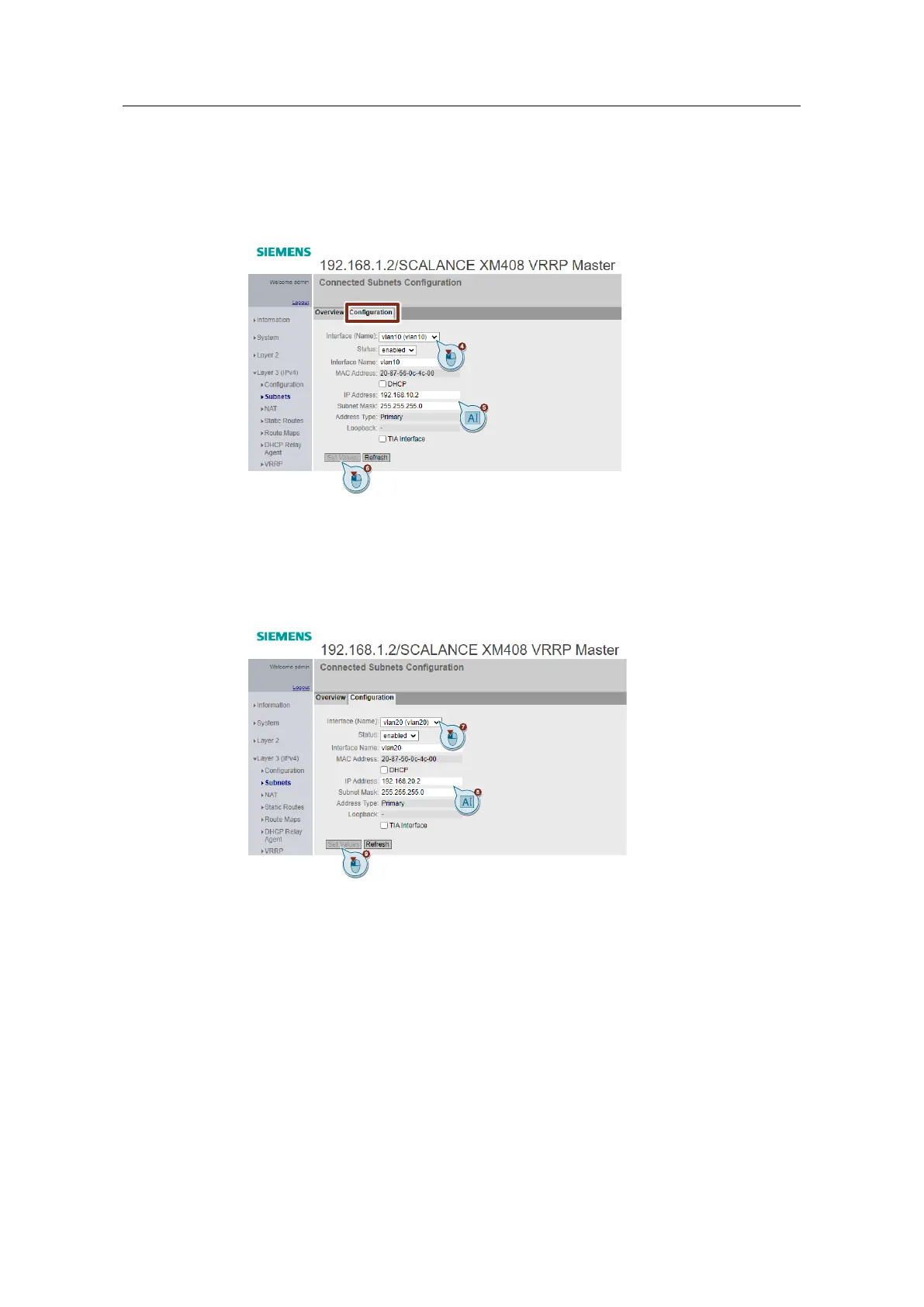

4. Under the "Configuration" tab, select the interface whose IP address you wish
to change.
5. For the "VLAN 10", enter the IP address 192.168.10.2 and the subnet mask
255.255.255.0.
6. Click the "Set Values" button.
7. Now select VLAN 20 from the dropdown menu.
8. For this VLAN, assign the IP address 192.168.20.2 and the subnet mask
255.255.255.0.
9. Click the "Set Values" button.
