Siemens SCALANCE XR-500 Instructions

6 Useful information
VRRP
Entry-ID: 109798556, V1.0, 09/2021
55
© Siemens AG
2021 All rights reserved

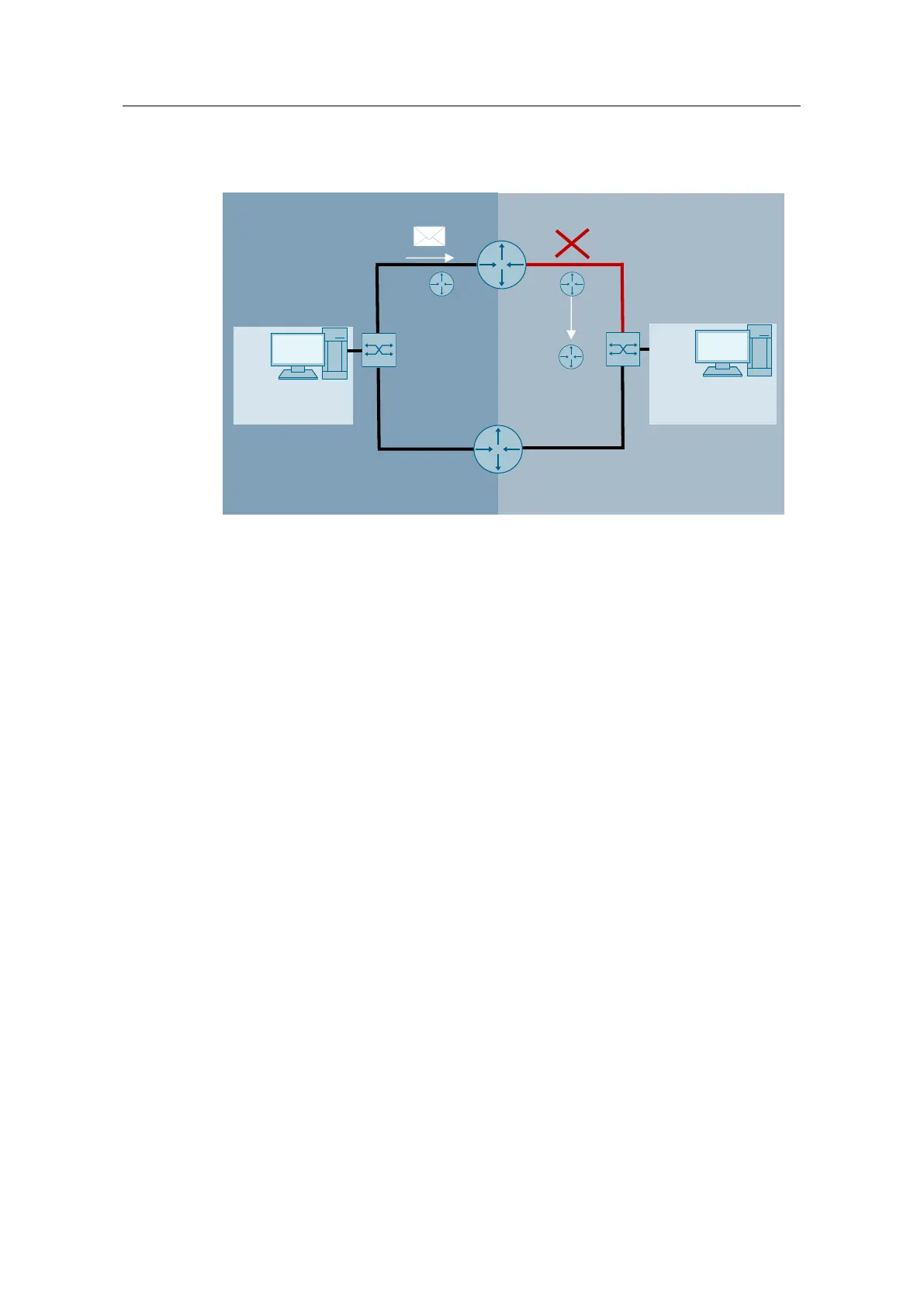

6.2.2 Failure of a connection cable
Figure 6-3
Subnet A
Router 1
PC 1
PC 2
Router 2
Subnet B
Virtual router
Shared IP:
192.168.0.1
Virtual Router ID
(VRID): 1
192.168.0.100
255.255.2550
Router: 192.168.0.1
192.168.1.100
255.255.255.0
Router: 192.168.1.1
Virtual router
Shared IP:
192.168.1.1
Virtual Router ID
(VRID): 2
Master → Backup
Master
Backup Backup →Master
1. Failure
Connection
ping
If only one interface of the active master fails in the example shown above, then
the backup router assumes the role of master only for this interface. If nothing else
is done, IP telegrams from PC1 would no longer be routed to PC2.
