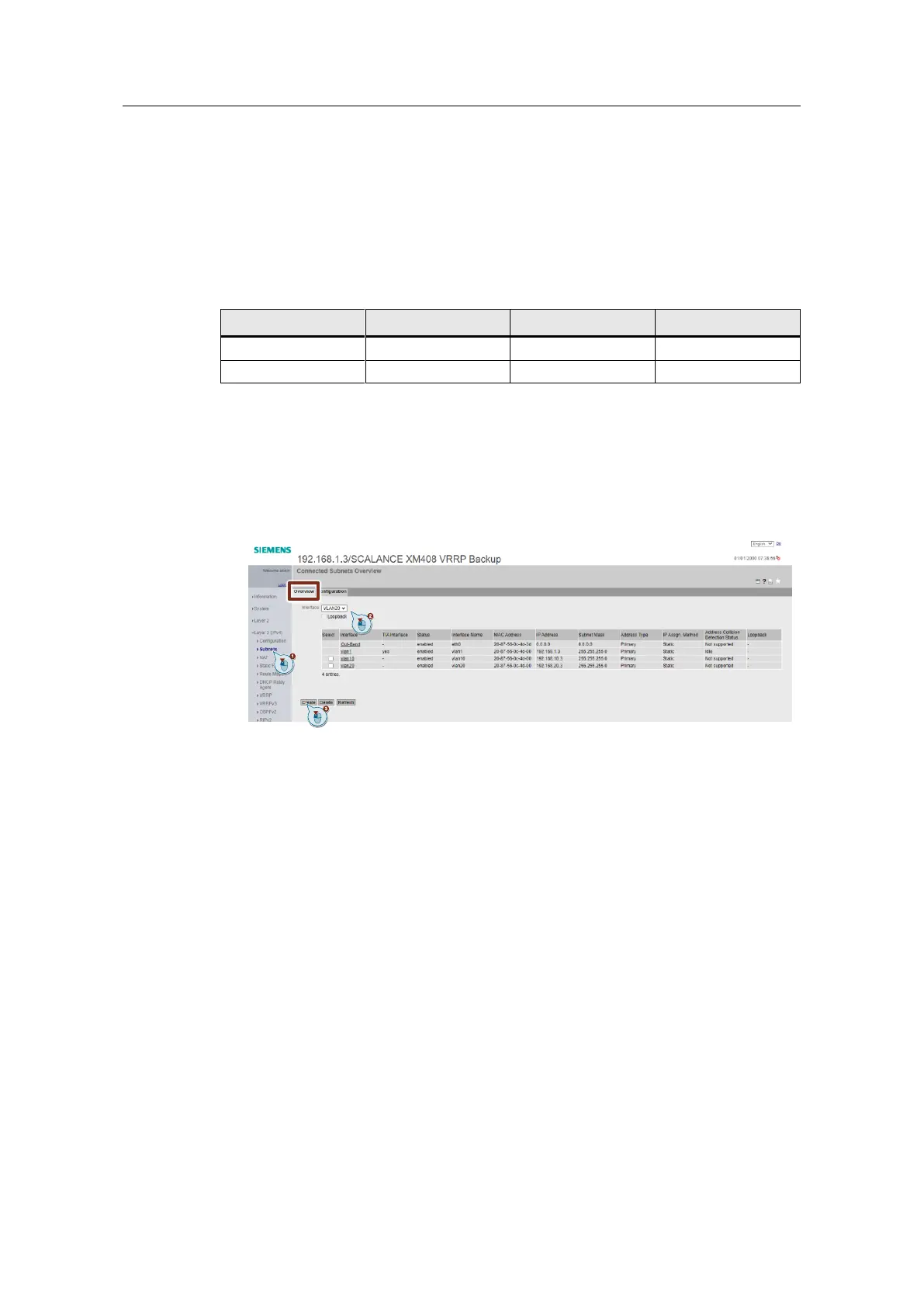

3.4.4 Create subnets
In its function as an IP router, the SCALANCE needs a separate IP address and
subnet mask for each adjoining subnet. This is the only way it can send IP packets
from one subnet to another subnet. Automatic routes will be created for the
subnets entered.
The following table shows the IP addresses with which the subnets are configured.
Table 3-4
Create interface
1. In "Layer 3 (IPv4) > Subnets", navigate to the "Overview" tab. Subnets are
assigned to the interfaces in this dialog.
2. Select a VLAN (VLAN20) from the dropdown menu.
3. Click the "Create" button to generate an interface for the switch in this VLAN.
The default IP address of the new interface is always 0.0.0.0.
4. Also create an interface for VLAN10 in the same way.
Interface configuration
1. Switch to the "Configuration" tab to modify the address and the subnet mask of
an interface.
2. Select vlan10 (vlan10) from the "Interface (Name)" dropdown menu.
3. For the "VLAN 10", enter the IP address 192.168.10.3 and the subnet mask
255.255.255.0.
