Installation position
Only the following installation position is permitted for all installation types of the devices:
• Horizontal
The horizontal installation position is shown using the example of a control cabinet.

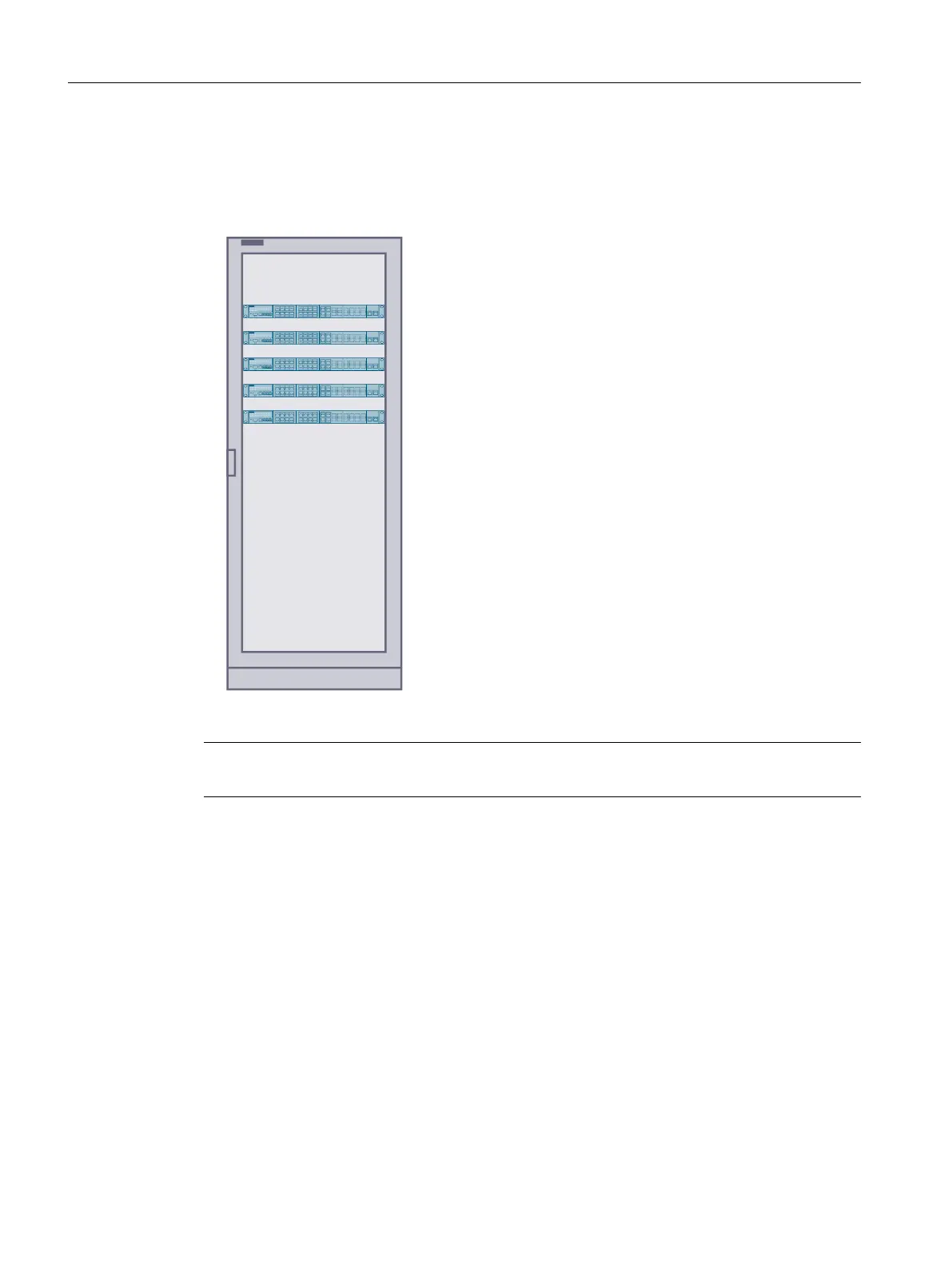

Figure5-1 Horizontal installation position of devices in a control cabinet
Note
Other installation positions are not permitted.
Cooling
The devices do not require any air 󹪞ow generated by a fan for cooling in the control cabinet.
SFP transceivers
Information about pulling and plugging SFP or SFP+ transceivers can be found in the section
"Inserting and removing pluggable transceivers (Page58)".
Installing and removing
5.2Types of installation
SCALANCE XR-500
52 Operating Instructions, 07/2023, C79000-G8976-C692-01
