11
Graphics
11.1 Dimension drawing
Note
The IE Switches X-300 a
re available in small, medium and large variants.
The dimension drawings are shown below.
Small design

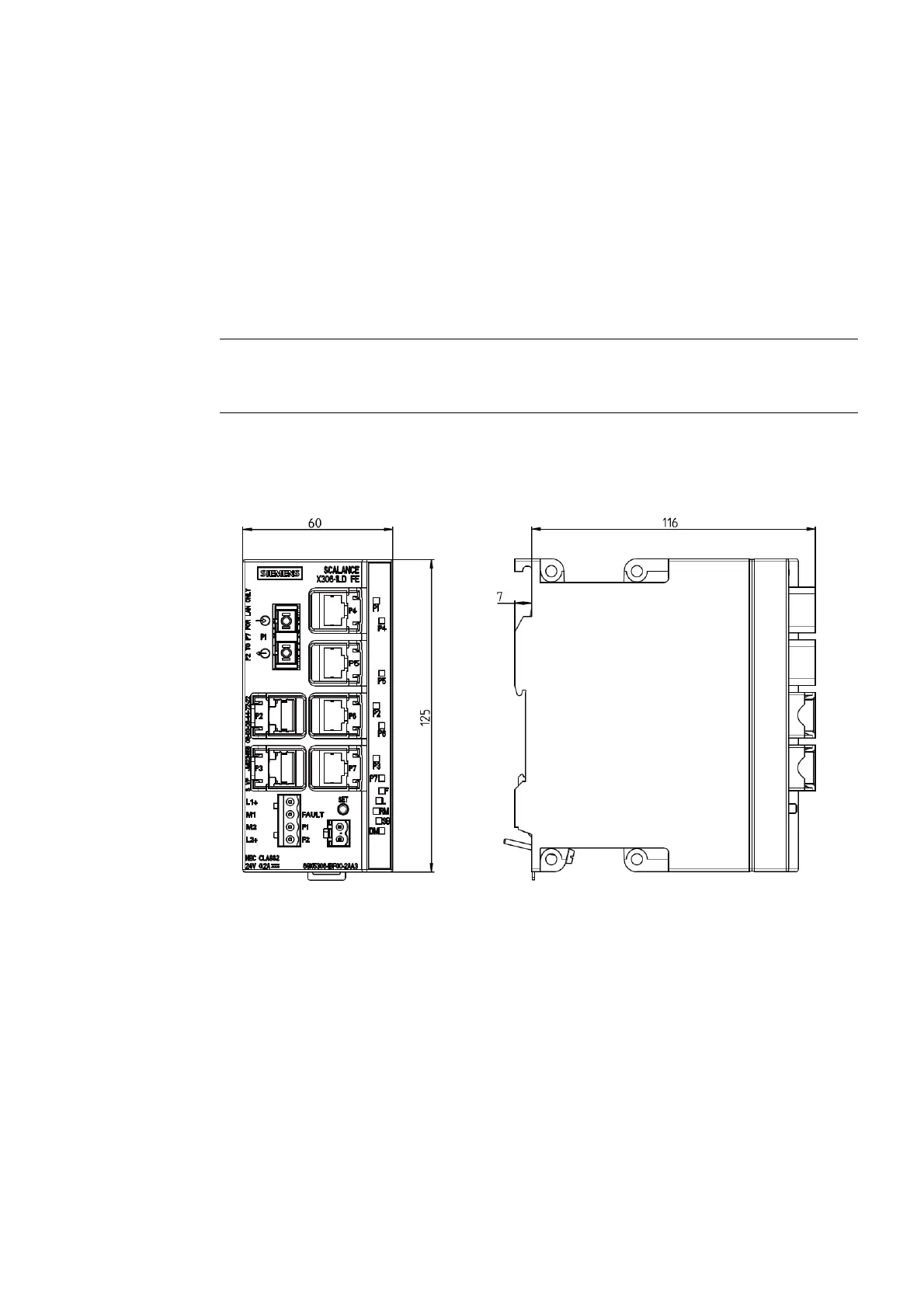

Figure 11-1 Small design dimension drawing (example used here SCALANCE X306-1LD FE)
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
279

Siemens SCALANCE XR324-4M EEC Specifications

General

Product Type	Industrial Ethernet Switch
Operating Temperature	-40 °C to +70 °C
Protection Class	IP30
Layer	Layer 2
Ports	24 x 10/100/1000Base-T, 4 x 100/1000Base-X
Power Supply	24 V DC
Mounting Type	DIN Rail
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q
