11.5 XR-300M EEC dimension drawings
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
291
11.5 XR-300M EEC dimension drawings

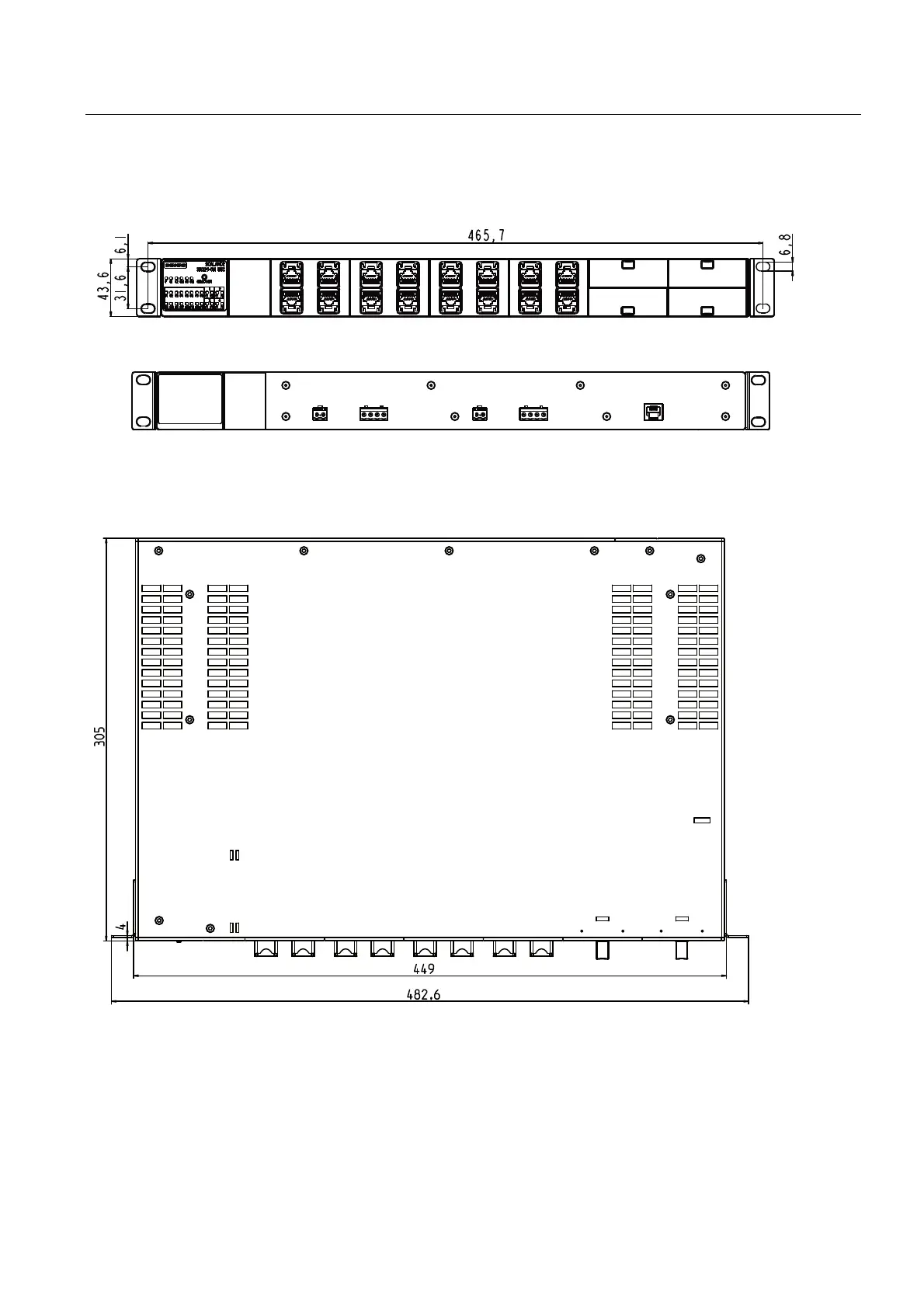

Figure 11-16 Housing front and rear
Figure 11-17 Top of the housing
