3.5 Redundant coupling of network segments
SCALANCE X-300
42 Operating Instructions, 02/2012, A5E01113043-12
3.5 Redundant coupling of network segments
Redundant coupling of network segments
The example of redundant coupling of two network segments as shown here, for example
rings with a redundancy manager, can be implemented homogeneously with all SCALANCE
X300 variants.

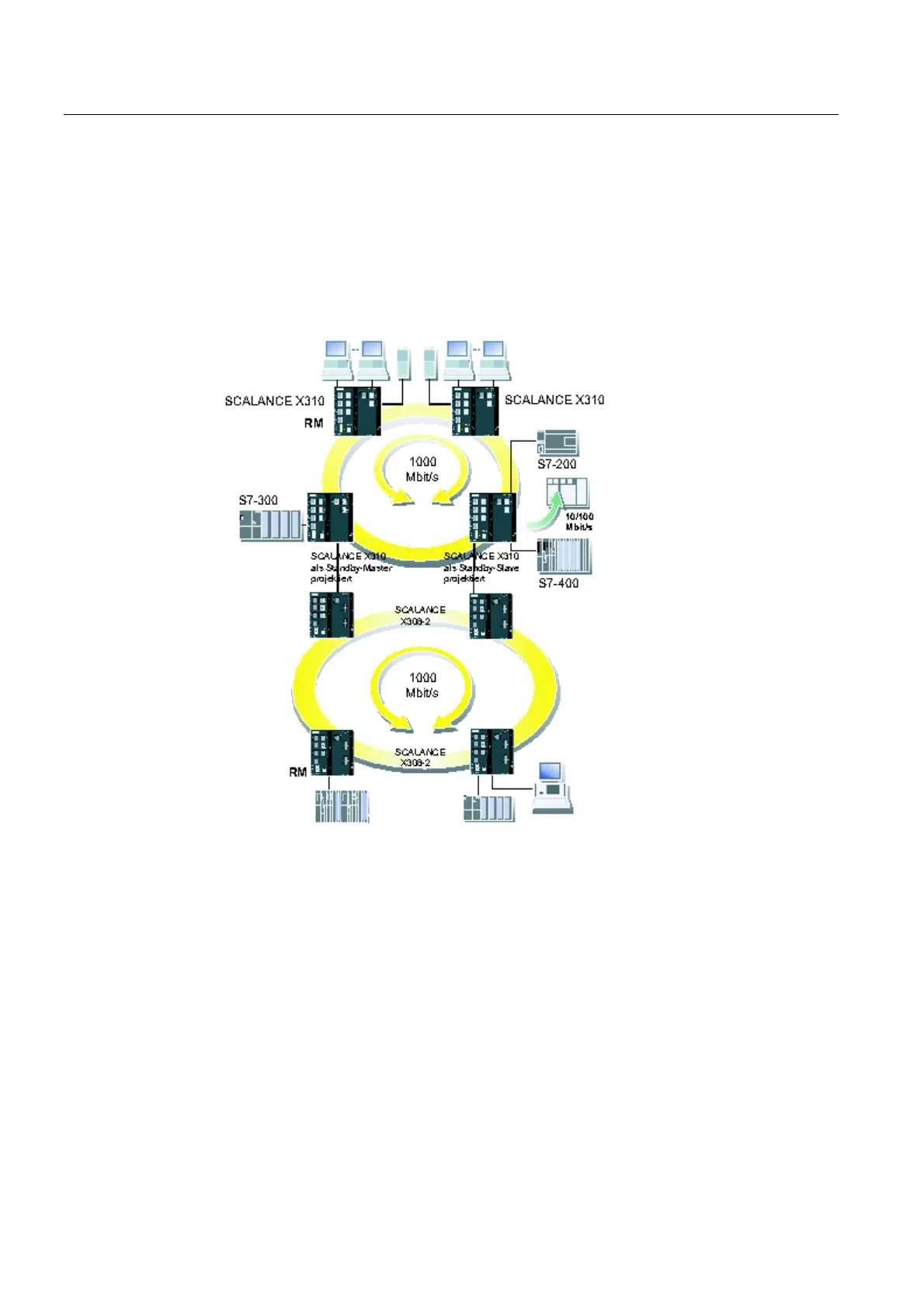

Figure 3-7 Redundant coupling of two subnets in mixed operation with SCALANCE X310 and
SCALANCE X308-2
