Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
69
4.2.5 XR-300M EEC product group
4.2.5.1 SCALANCE XR324-4M EEC product characteristics
Possible attachments
The SCALANCE XR324-4M EEC is a partially modular device and has 24 ports.
● 16 fixed ports in the base device:
16 RJ-45 jacks for connection of end devices or other network segments.
● 8 modular ports via module slots:
4 modules can be combined using slots (S1-S4) depending on the application. End
devices and other network segments are connected according to the modules being
used.

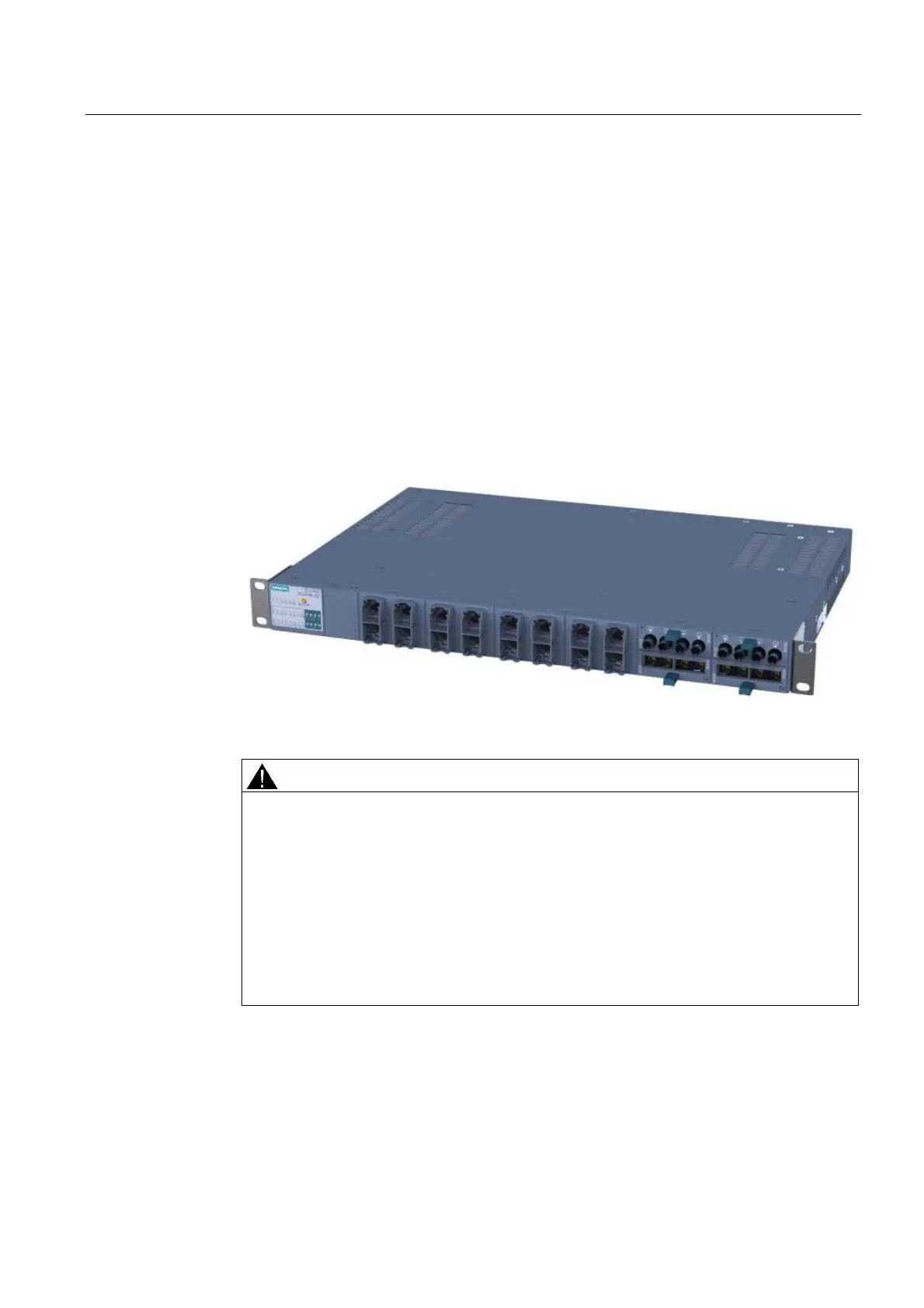

Figure 4-21 XR324-4M_EEC
CAUTION
Use only approved modules in the slots
Possible module connection types:
• 2 x RJ-45
• 2 x FX100
• 2 x FX1000
• or 2 x SFP slots
With FX, single mode fibers or multimode fibers are possible.
Connecting end devices or other network segments does not depend on the module
slots.
