4.2.3 Product group XR-300M
Possible attachments
The SCALANCE XR324-12M is a fully modular device and has 24 ports.
● 0 fixed ports on the base device
● 24 modular ports via module slots:
12 media modules (optical or electrical as required) can be combined using slots (S1-
S12) depending on the application. End devices and other network segments are
connected according to the modules being used.
Note
Whe
n shipped, the slots for the media modules have a dummy cover fitted.

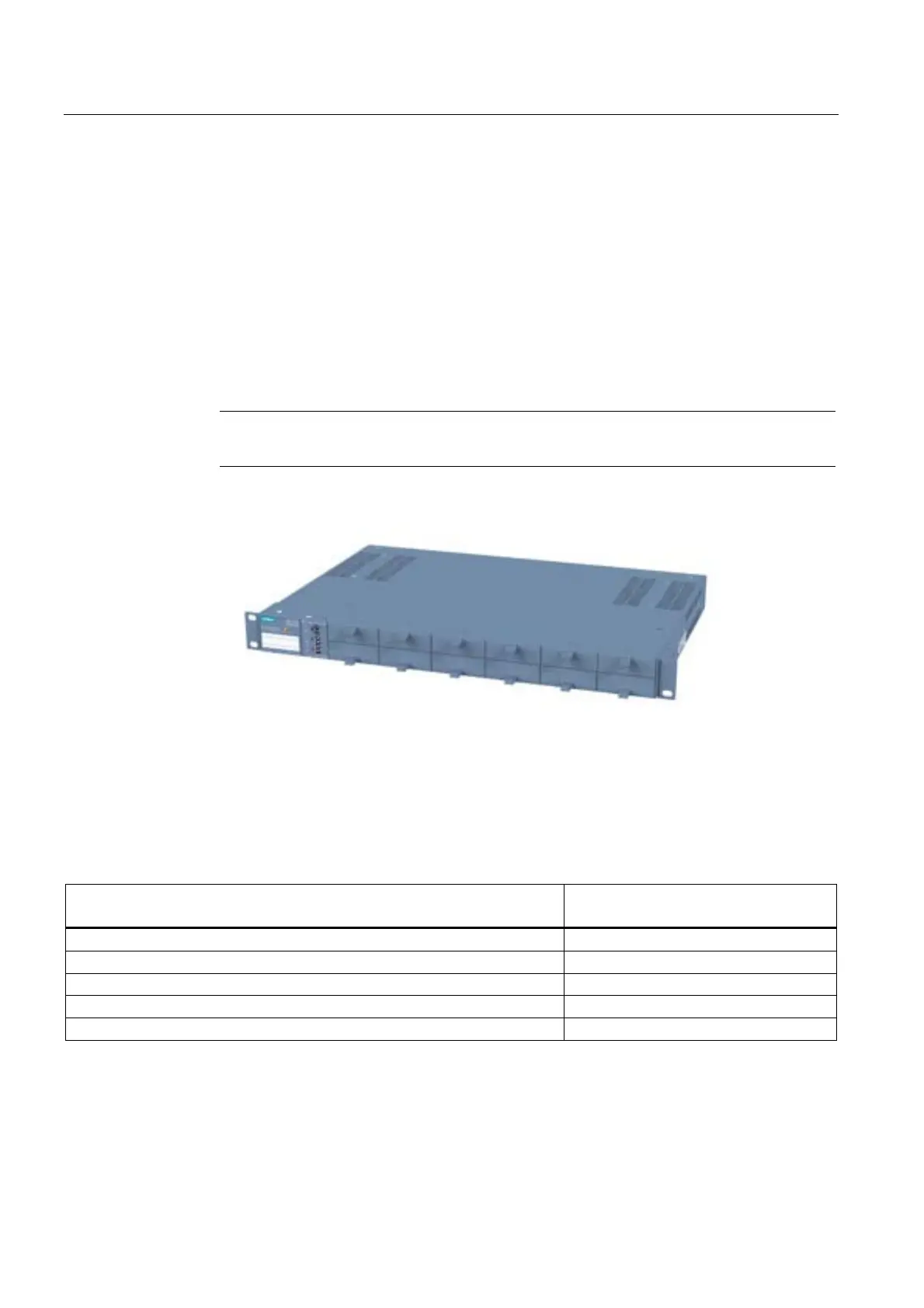

Figure 4-15 SCALANCE XR324-12M with blind covers
Overview of the SCALANCE XR324-12M product
Device:
SCALANCE
Order number [MLFB]
XR324-12M (2 x 24 VDC, cable outlet front) [6GK5 324-0GG00-1AR2]
XR324-12M (1 x 100 to 240 VAC, cable outlet front) [6GK5 324-0GG00-3AR2]
XR324-12M (2 x 24 VDC, cable outlet rear) [6GK5 324-0GG00-1HR2]
XR324-12M (1 x 100 to 240 VAC, cable outlet rear) [6GK5 324-0GG00-3HR2]
XR324-12M TS (2 x 24 VDC, cable outlet front, modules varnished) [6GK5 324-0GG00-1CR2]
