Appendix
A.2 Fitting the IE FC RJ-45 Plug
SCALANCE X-300
310 Operating Instructions, 02/2012, A5E01113043-12
Removing the IE FC RJ-45 Plug
1. Press on the locking lever of the IE FC RJ-45 Plug gently to remove the plug.

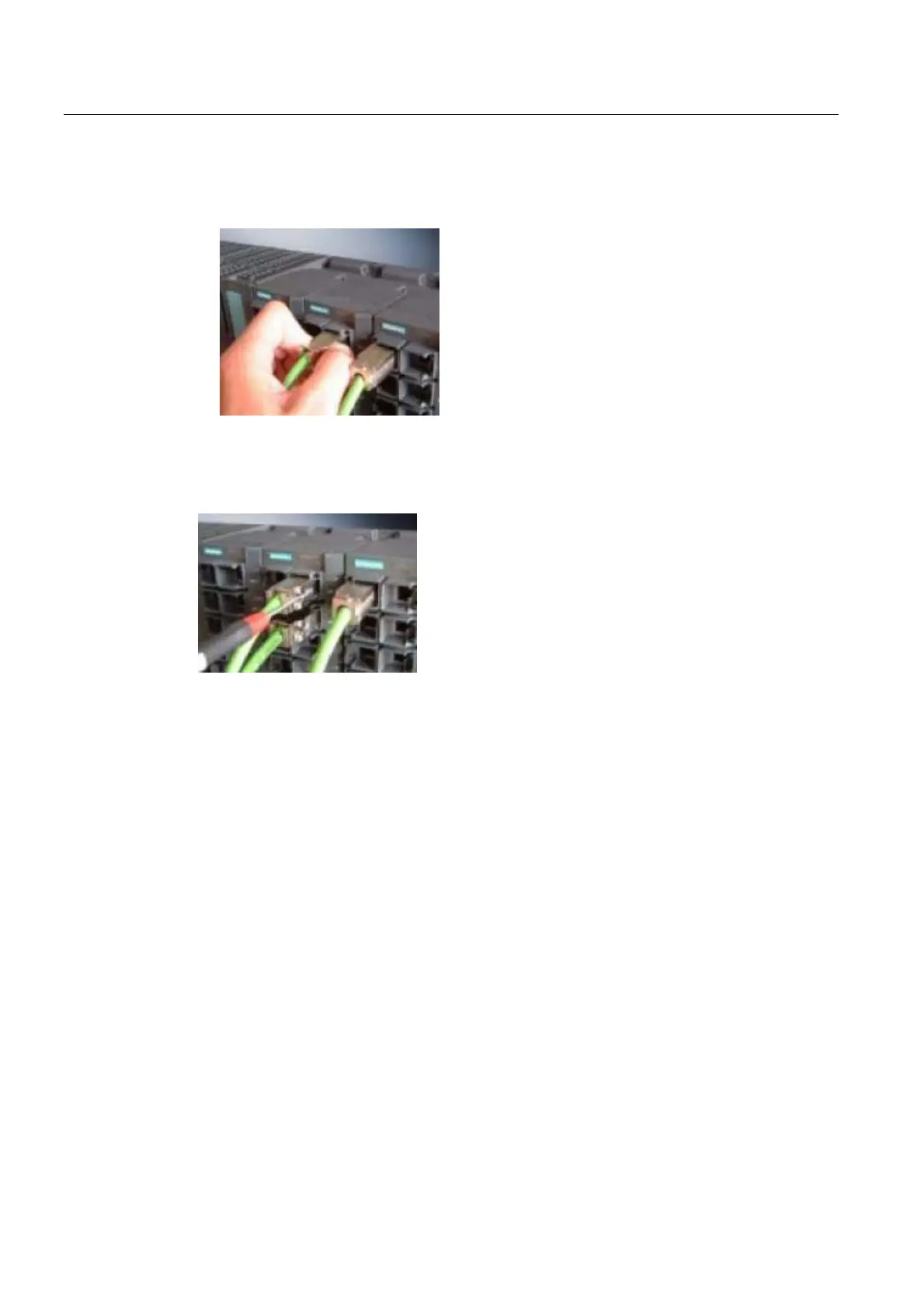

Figure A-3 Releasing the RJ-45 plug (based on the example of the IE FC RJ-45 Plug 180)
If there is not enough space to release the lock with your hand, you can also use a 2.5 mm
screwdriver. You can then remove the IE FC RJ-45 Plug from the twisted pair socket.
Figure A-4 Releasing the RJ-45 plug with a screwdriver (based on the example of the IE FC RJ-45
Plug 180)
