Description of the device
4.4 C-PLUG (configuration plug)
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
95

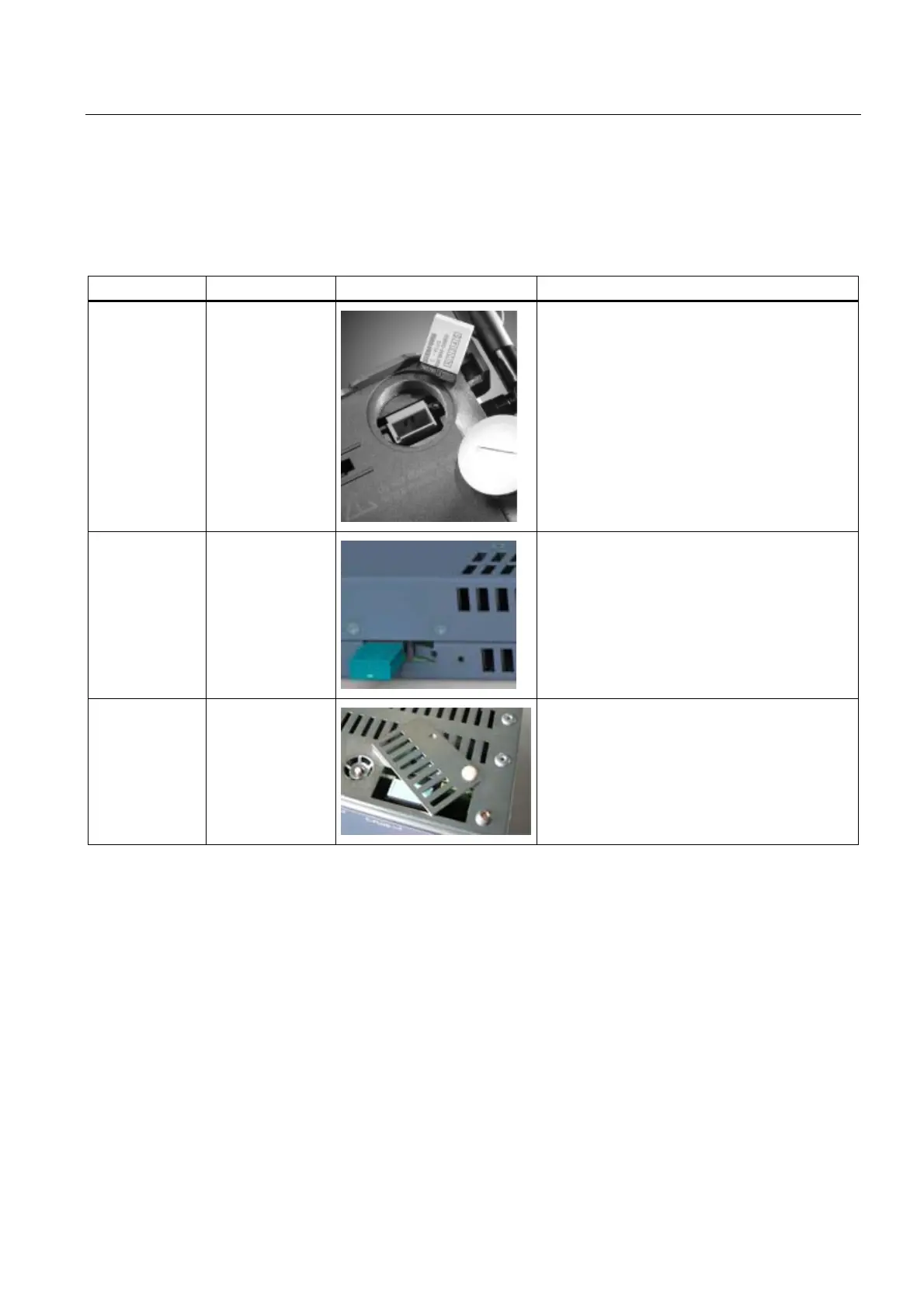

Removing the C-PLUG from the IE Switch X-300
It is only necessary to remove the C-PLUG if the IE Switch develops a fault.
The C-PLUG can be removed from the slot using flat pliers, tweezers, or a small screwdriver.
Product group Slot Figure
X-300
X-300M
Rear of the device
1. Remove the screw cover.
2. Remove the C-PLUG.
3. Close the screw cover again correctly.
XR-300M Rear of the device
- right
1. Remove the cover.
2. Remove the C-PLUG.
3. Close the cover again correctly.
X-300EEC Top of the housing 1. Open the slider.
2. Remove the C-PLUG.
3. Close the slider.
