Assembling
4.3 19" rack mounting
SCALANCE XR-500
42 Operating Instructions, 05/2017, A5E03275845-11

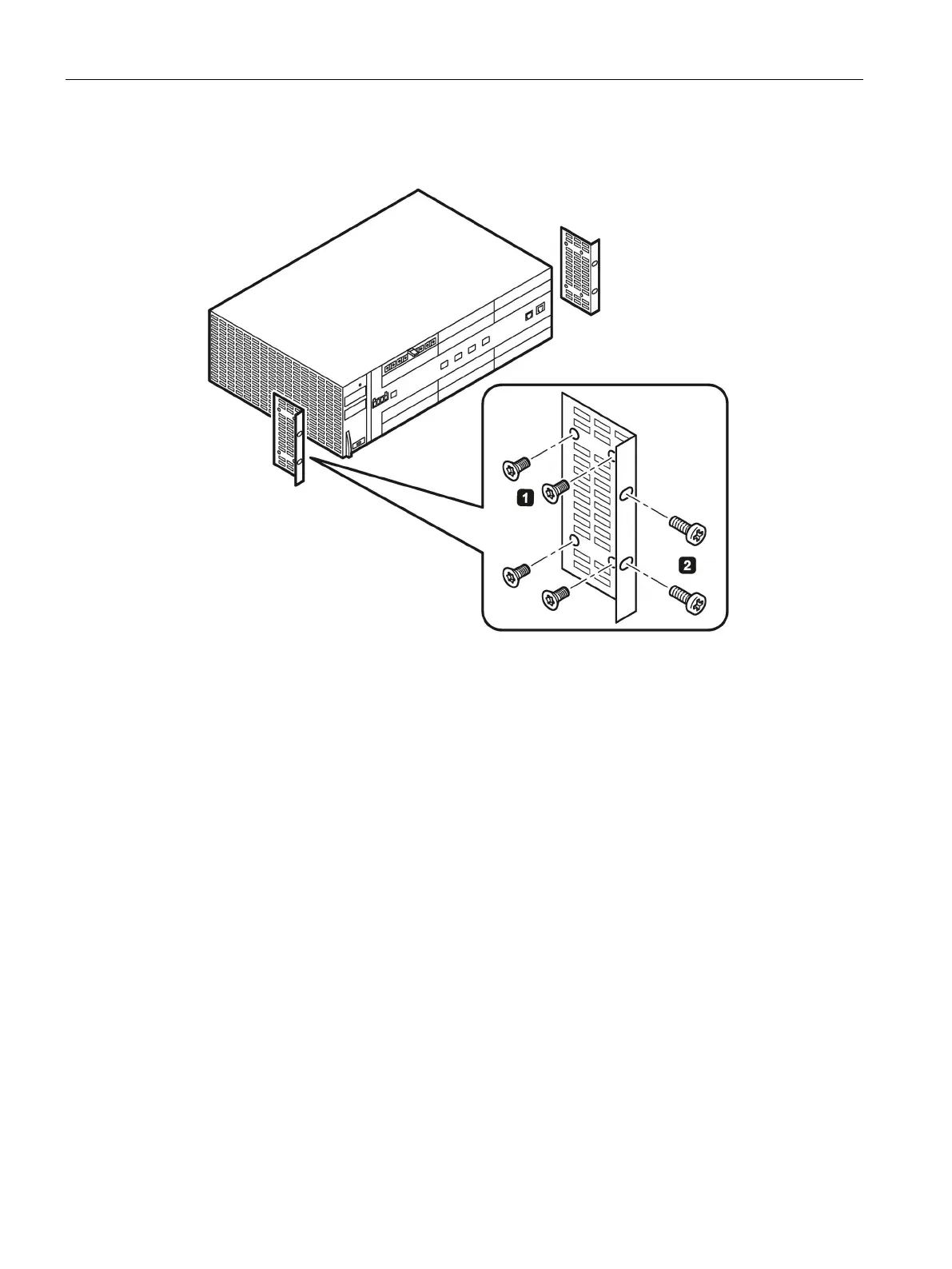

Figure 4-1 19" rack mounting of the SCALANCE XR552-12M. SCALANCE XR524-8C, SCALANCE
XR526-8C and SCALANCE XR528-6M are mounted in the same way.
To mount the device in a 19" rack, follow the steps below:
1. Secure the two mounting brackets with four screws each (M3 x 6 supplied with the
product) to the side panels of the device
①.
The maximum tightening torque for these screws is 0.5 Nm.
The dimensions of the mounting brackets depend on the height units of the device.
2. Position the device at the required location and screw the device to the 19" rack
②.
