Assembling
4.8 Mounting power supply units
SCALANCE XR-500
54 Operating Instructions, 05/2017, A5E03275845-11

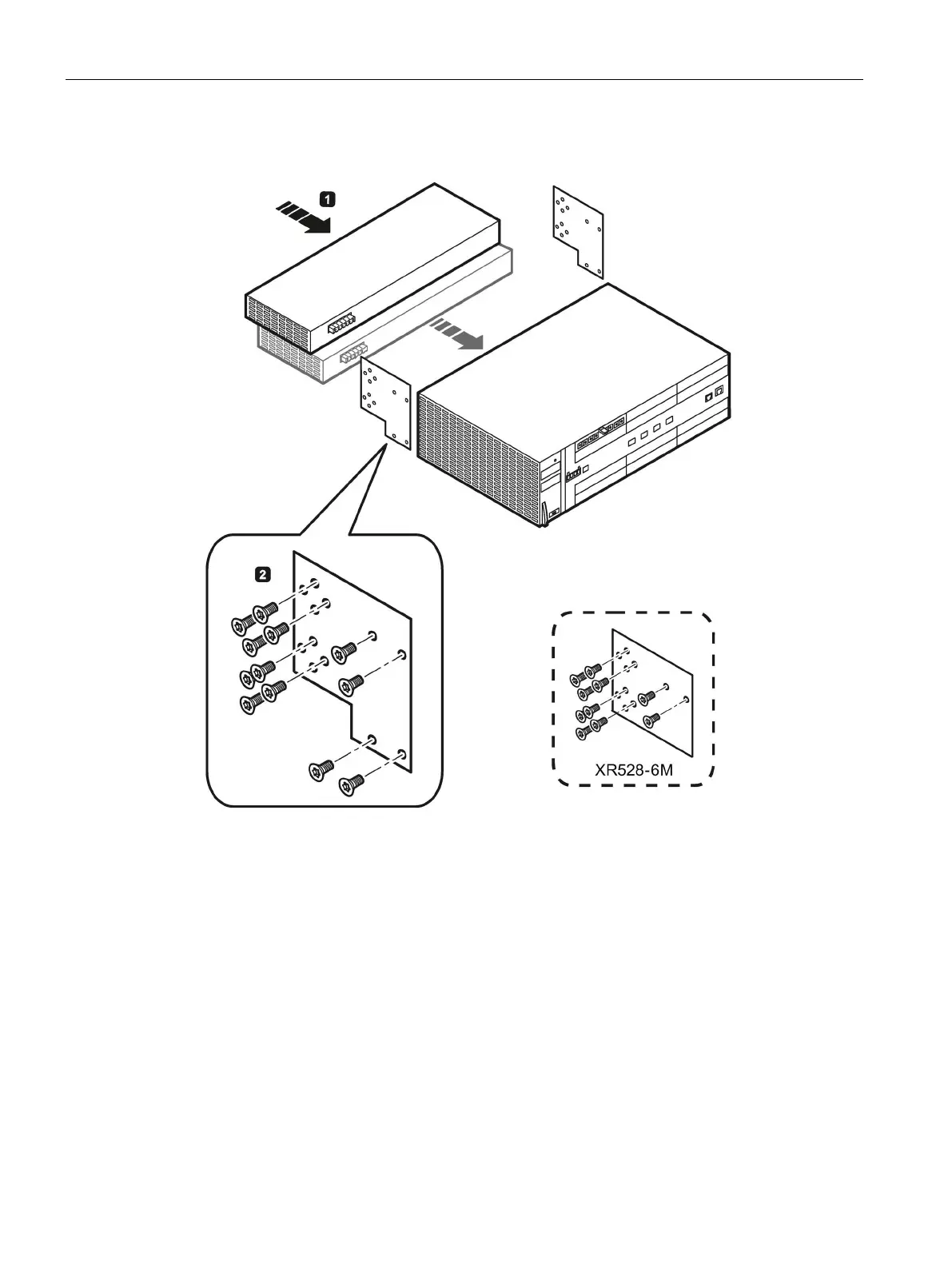

Figure 4-5 Rear panel mounting of the SCALANCE XR552-12M. SCALANCE XR528-6M is used
analogously.
On the rear panel of an IE switch, there are sockets for the direct connection of a maximum
of two PS598-1 power supply units. On the rear of the PS598-1 power supply unit there is a
corresponding plug.
To mount the PS598-1 power supply unit on the rear panel of an IE switch, follow the steps
below:
1. Fit the PS598-1 power supply unit and the IE switch together
①.
The two devices are equipped with positioning elements that must engage during
installation and protect the plug from excessive bending strain.
2. Screw the two devices to the mounting plates supplied with the main device
②.
The maximum tightening torque of the screws is 0.5 Nm.
