Dimension drawings
9.4 Mounting brackets for use on ships
SCALANCE XR-500
98 Operating Instructions, 05/2017, A5E03275845-11
You will find the more information on the construction of the mounting brackets in the section
"Technical data (Page 83)".
Note
Different mounting brackets
For the SCALANCE XR524
-8C and SCALANCE XR526-8C, the mounting brackets for left
-6M and SCALANCE XR552-12M, you require different mounting
brackets. The mounting brackets on one side are identical but the mounting brackets for left
and right are different.
Note
ISO tolerance and punching burr
For dimensions without tolerance details, the general tolerances "medium" acc. to DIN ISO
2768 apply. No punching burrs are permitted.

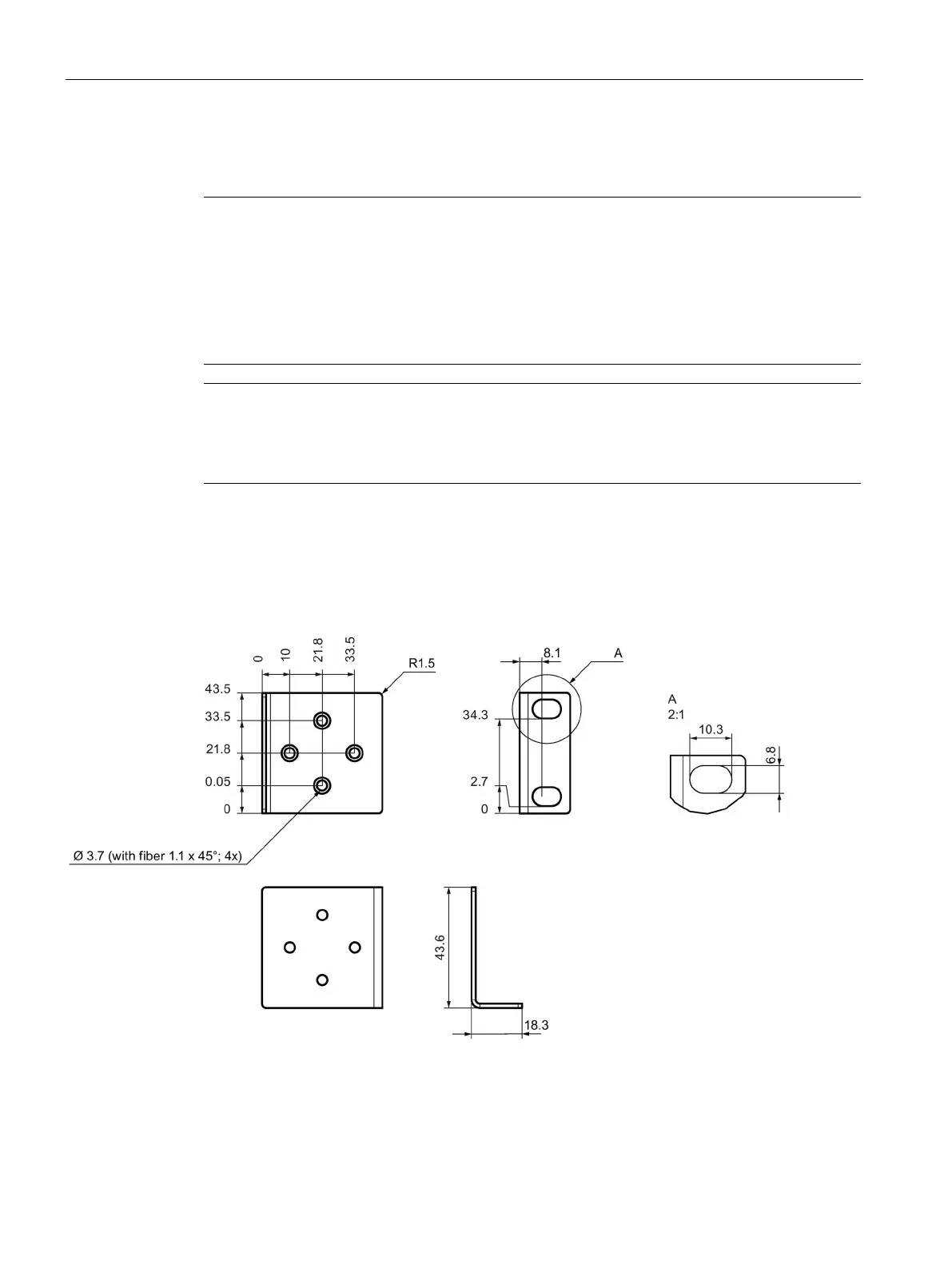

Brackets for the SCALANCE XR524-8C and SCALANCE XR526-8C
View from the front, top, and side
Dimensions are specified in mm.
