SCALANCE XR-500
Operating Instructions, 05/2017, A5E03275845-11
95
Dimension drawings
9
9.1
SCALANCE XR524-8C and SCALANCE XR526-8C

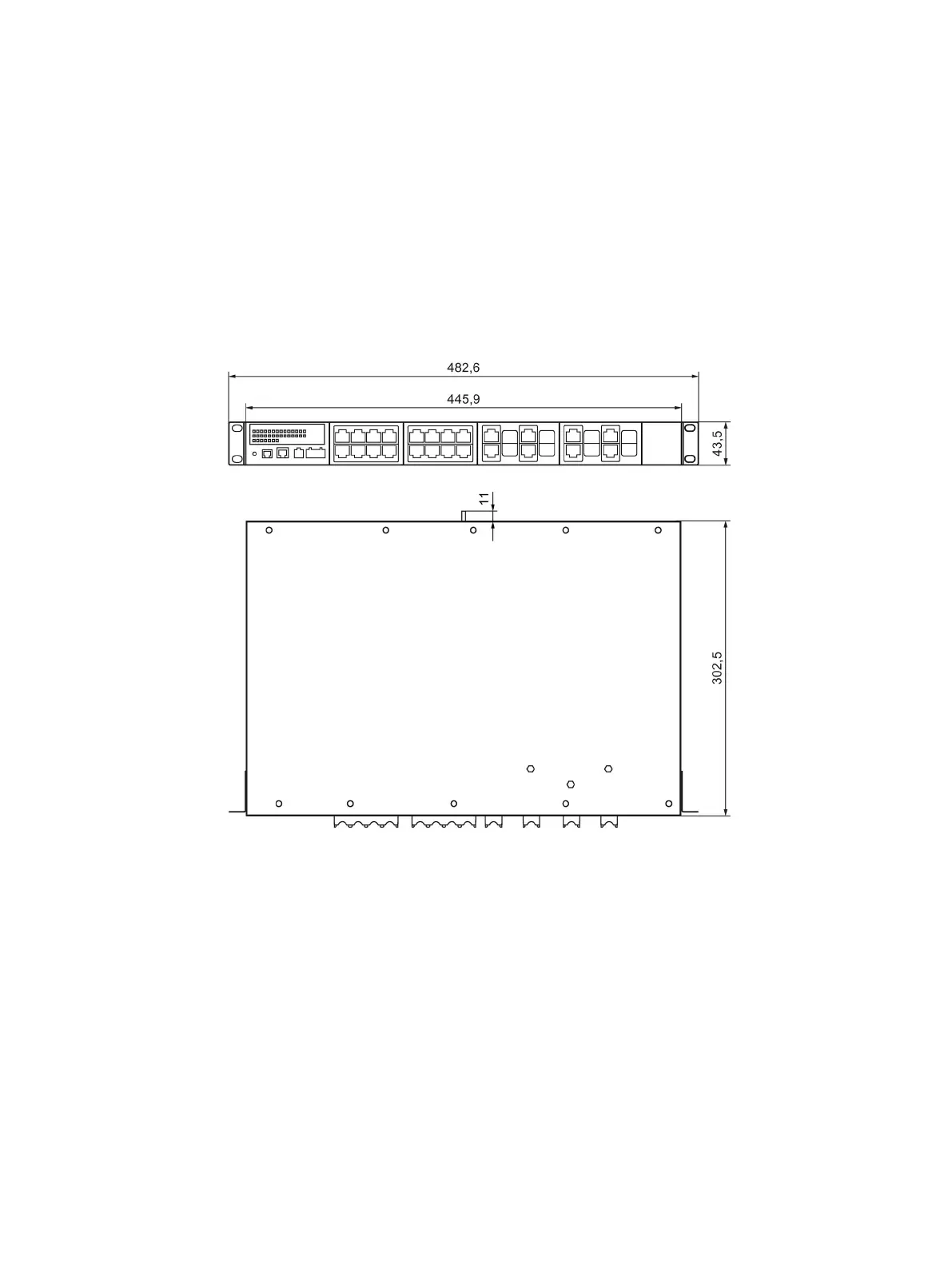

View from front and above
Dimensions are specified in mm.
