Description of the device
3
3.1
Product overview

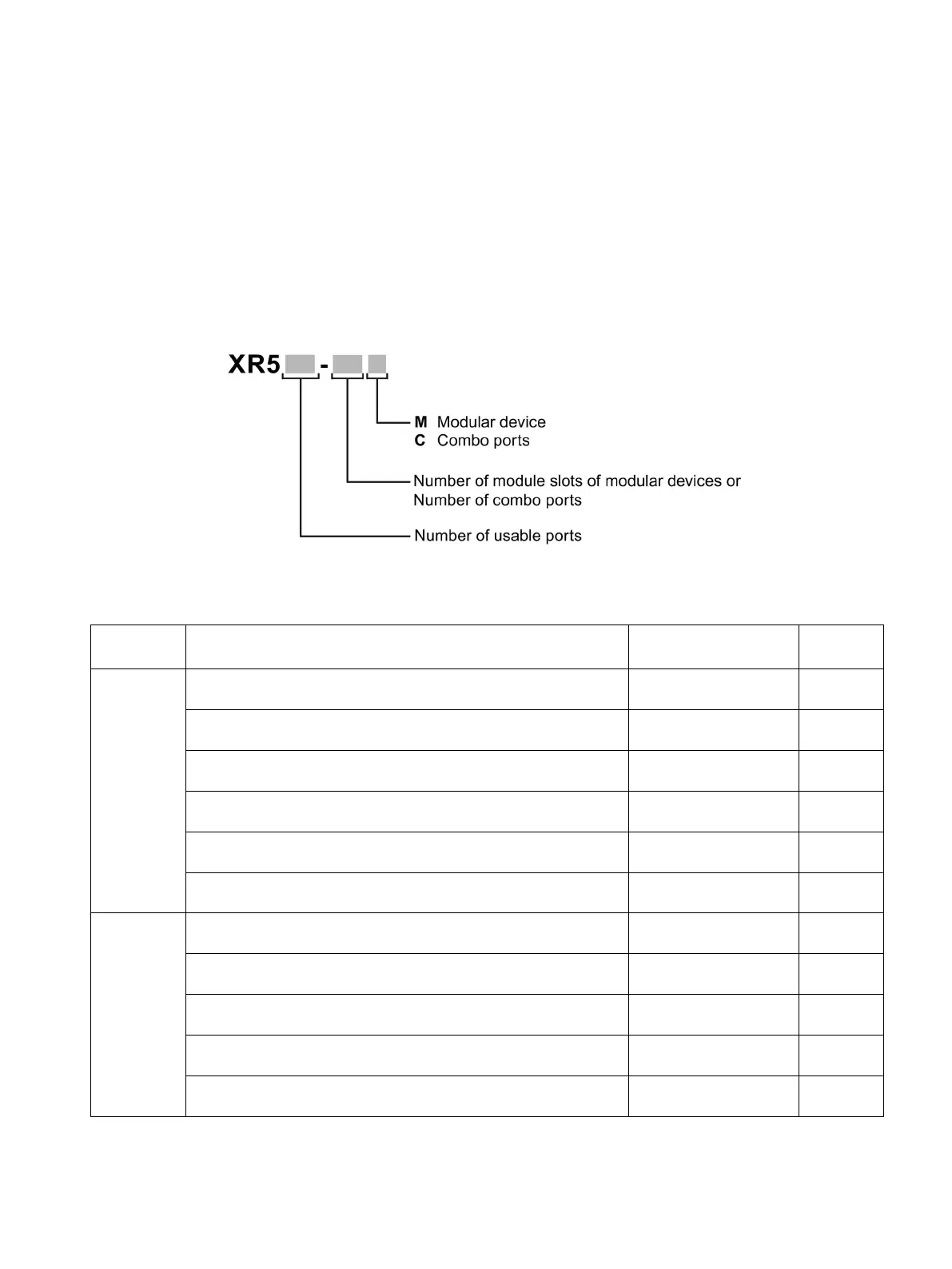

The type designation of a SCALANCE XR-500 IE switch is made up of several parts that
have the following meaning:
Article numbers
Device
Properties
Article number
Firmware
version
XR524-8C 1 height unit, 2 x 24 VDC, connector for the power supply on the
front, layer 3 with KEY-PLUG
6GK5 524-8GS00-2AR2 as of V4.1
1 height unit, 2 x 24 VDC, connector for the power supply on the
front, layer 3 integrated
6GK5 524-8GR00-2AR2 as of V4.1
1 height unit, 1 x 100 to 240 VAC, connector for the power supply
on the rear, layer 3 with KEY-PLUG
6GK5 524-8GS00-3AR2 as of V4.2
1 height unit, 1 x 100 to 240 VAC, connector for the power supply
on the rear, layer 3 integrated
6GK5 524-8GR00-3AR2 as of V4.2
1 height unit, 2 x 100 to 240 VAC, connector for the power supply
on the rear, layer 3 with KEY-PLUG
6GK5 524-8GS00-4AR2 as of V4.2
1 height unit, 2 x 100 to 240 VAC, connector for the power supply
on the rear, layer 3 integrated
6GK5 524-8GR00-4AR2 as of V4.2
XR526-8C This 1 height unit, 2 SFP+ slots, 2 x 24 VDC, connector for the
power supply on the front, layer 3 with KEY-PLUG *
)
6GK5 526-8GS00-2AR2 V4.3
1 height unit, 2 SFP+ slots, 2 x 24 VDC, connector for the power
supply on the front, layer 3 integrated *
)
6GK5 526-8GR00-2AR2 V4.3
1 height unit, 2 SFP+ slots, 1 x 100 to 240 VAC, connector for the
power supply on the rear, layer 3 with KEY-PLUG
6GK5 526-8GS00-3AR2 V4.3
1 height unit, 2 SFP+ slots, 1 x 100 to 240 VAC, connector for the
power supply on the rear, layer 3 integrated
6GK5 526-8GR00-3AR2 V4.3
1 height unit, 2 SFP+ slots, 2 x 100 to 240 VAC, connector for the
power supply on the rear, layer 3 with KEY-PLUG
6GK5 526-8GS00-4AR2 V4.3
