04/99 Symbolic Addressing
Getting Started with C7-621-AS-i 51

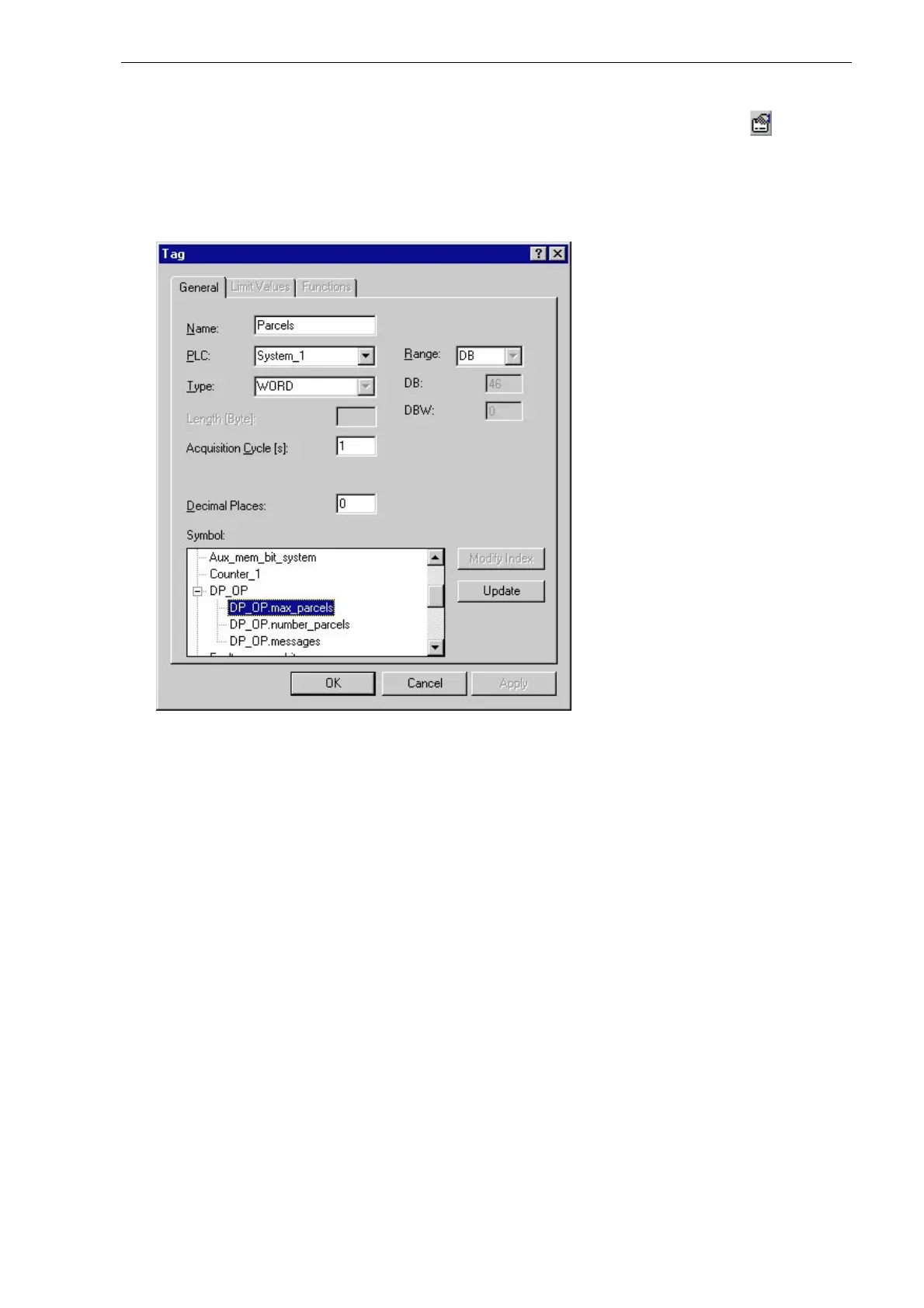

Open the
Parcels_1
screen, double-click the variable
Parcels
and click the
Edit
button in the
Input/Output field
dialog window
.
In the dialog window that now appears, the symbolic names are
displayed under
Symbol
.
Select the name
DB_OP.max_parcels
under
DB_OP
in the variable list. The absolute addresses
are displayed on a gray background. Confirm the entry with
OK
.
Repeat the steps for the variable
Number
with the symbolic name DB_OP.number_parcels. Close
the window with
OK
.
