Special Features of the C7-635
4-6
C7-635 Control System
A5E00155581-04
Connecting Additional S7-300 Modules Directly on the Device
In the figures below, the C7-635 Touch is used as an example. The installation
steps are the same for the C7-635 Key.
2-Module I/O set
As a prerequisite, you must have the “2-module I/O set” accessory specifically for
the C7-635.
Use the following procedure to connect the additional S7-300 modules:
1. Screw the mounting plate to the back wall of the C7-635 housing.
2. Install the C7-635 in the control cabinet door. Refer to the notes in Chapter 3.2
for this.
3. Connect the C7-635 to the module (inserted on the left in the figure) using the
connecting cable (0.25 m).
4. Connect the two modules using the connecting cable (0.08m).
5. Mount the modules on the S7 DIN rail.
S7-300 modules
C7-635
Mounting plate

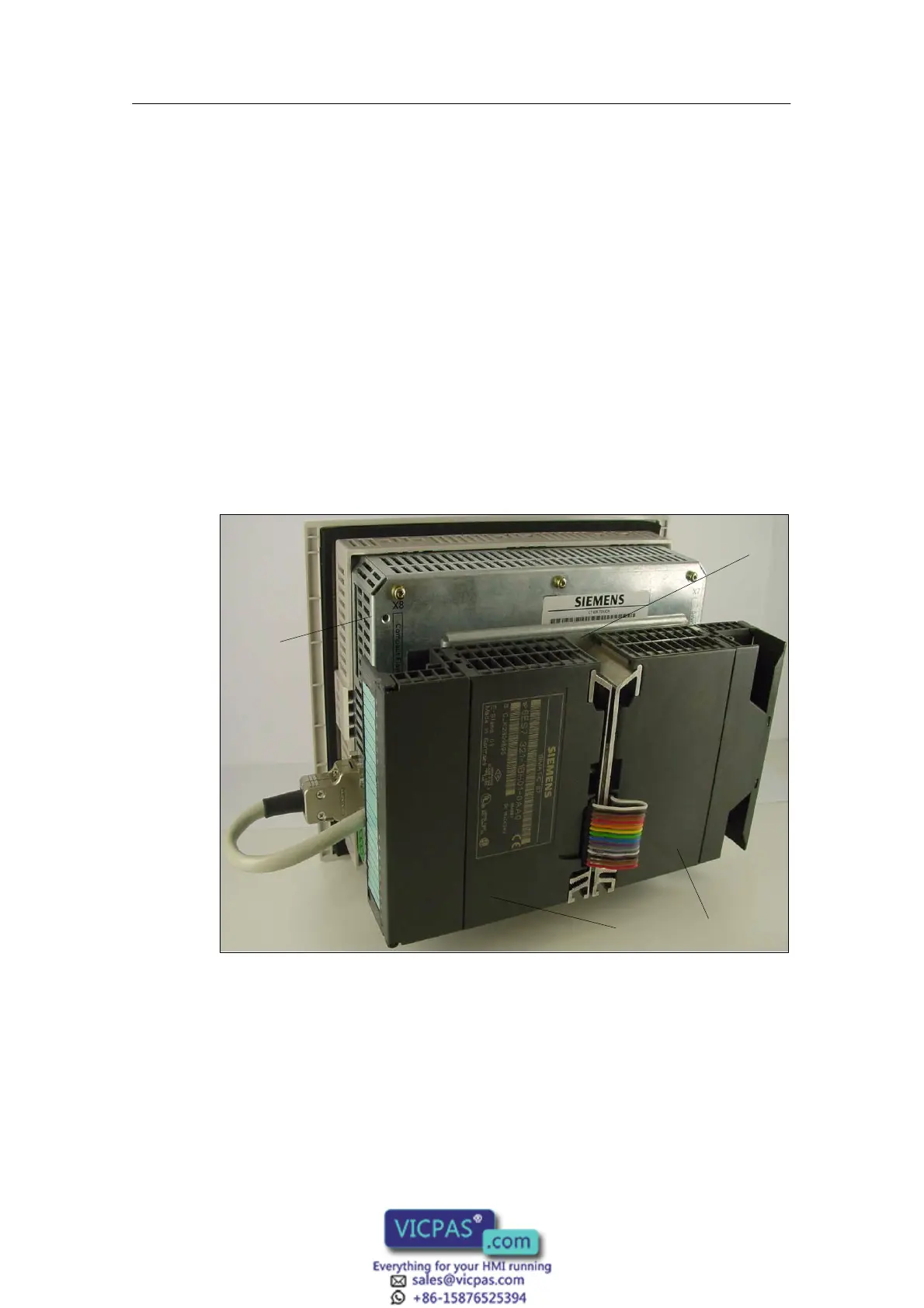

Figure 4-2 Connecting Additional S7-300 Modules Directly on the Device Using the
2-Module I/O Set
