Digital output module DQ 8x24VDC/0.5A SNK BA (6ES7132-6BF61-0AA0)
Manual, 09/2017, A5E32855878-AB
11
Product overview
2
2.1
Properties
Part number
6ES7132-6BF61-0AA0
View of the module
①
Module type and name
⑦
Function class
②
LED for diagnostics
⑧
Color coding module type
③
2D matrix code
⑨
Function and firmware version
④
Wiring diagram
⑩
Color code for selecting the color identification labels
⑤
LEDs for channel status
⑪
BU type
⑥
LED for supply voltage
⑫
Article number

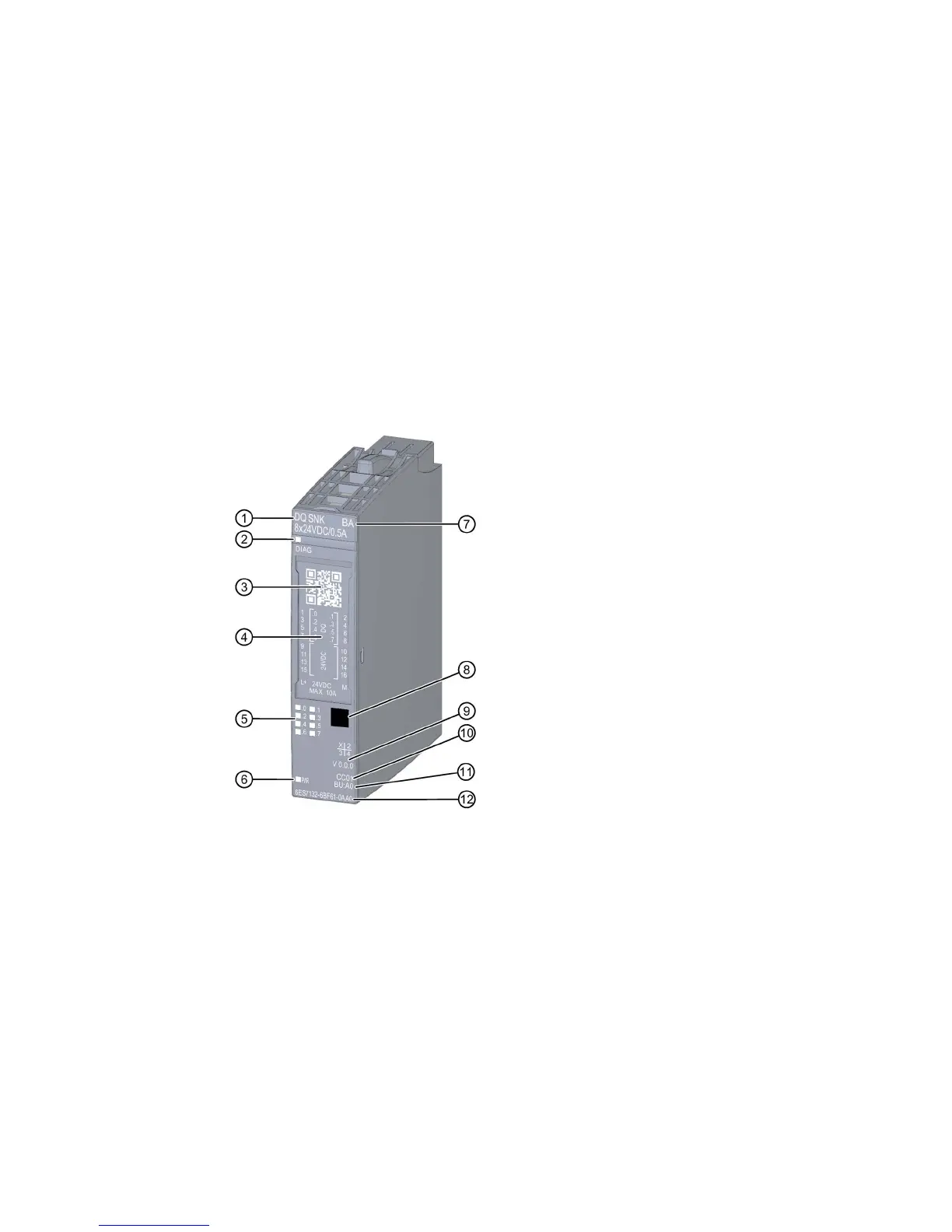

Figure 2-1 View of the DQ 8×24VDC/0,5A SNK BA module
