Parameters/address space
4.3 Address space
Digital output module DQ 8x24VDC/0.5A SNK BA (6ES7132-6BF61-0AA0)
Manual, 09/2017, A5E32855878-AB
17
4.3
Address space
The module can be configured differently in STEP 7; see following table. Depending on the
configuration, additional/different addresses are assigned in the process image of the inputs.
Configuration options of DQ 8x24VDC 0.5A SNK BA
You can configure the module with STEP 7 (TIA Portal) or with a GSD file. If you configure
the module using a GSD file, the configurations are available under various short
designations/module names; see the table below. The following configurations are possible:
Table 4- 2 Configuration options with GSD file
Configuration
Short designation/module
name in the GSD file
Configuration software, e.g. with STEP 7 (TIA Portal)
Integrated in hardware
catalog STEP 7
GSD file
PROFINET IO
GSD file
PROFIBUS DP
1 x 8-channel with-
out value status
DQ 8x24VDC/0,5A SNK BA
V0.0
V14, SP1 or higher with
HSP 0222
X X
Address space of the digital output module DQ 8x24VDC/0,5A SNK BA
The figure below shows the assignment of the address space for
DQ 8x24VDC/0,5A SNK BA

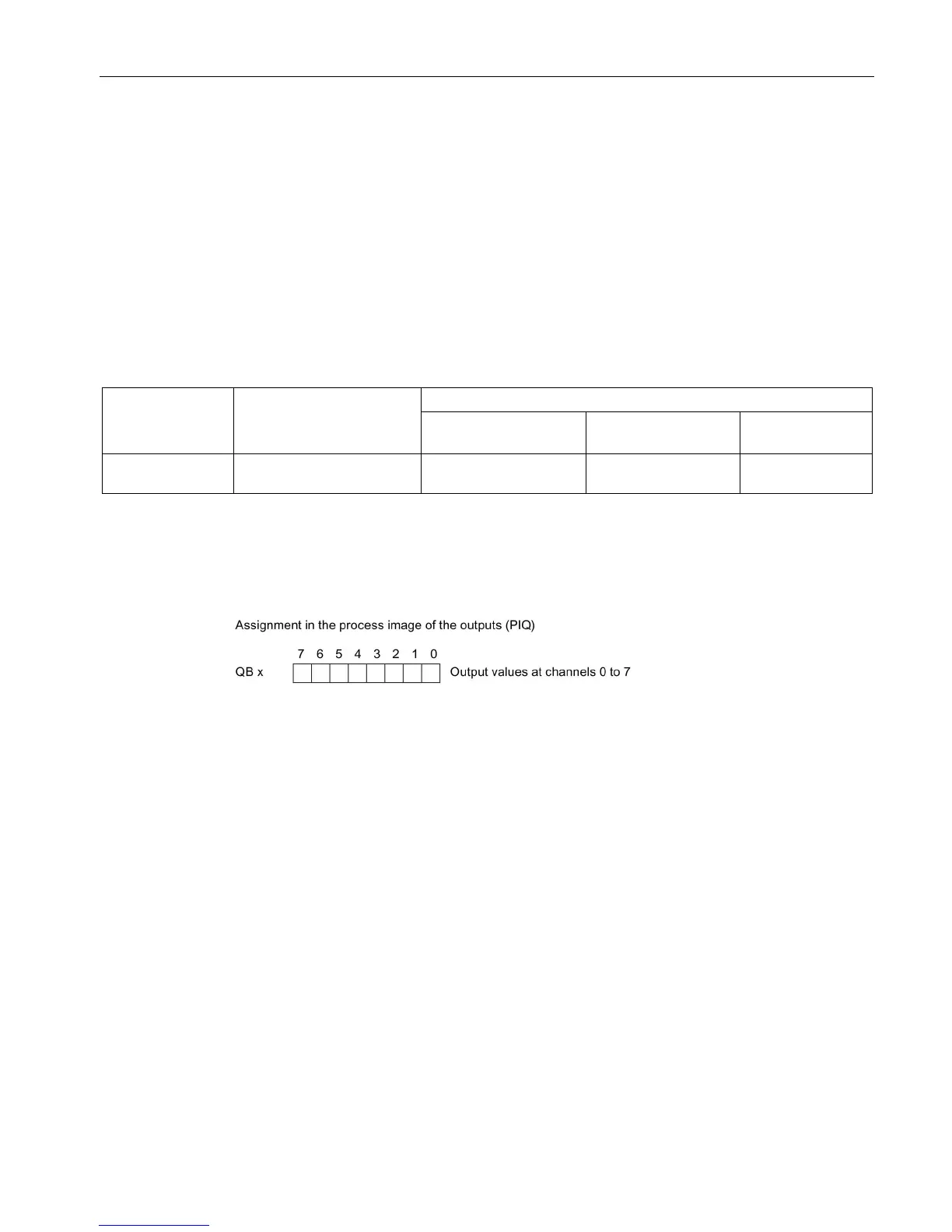

Figure 4-1 Address space of the digital output module DQ 8x24VDC/0,5A SNK BA
