Siemens SIMATIC EP200SP - Parameters

Parameter data record
A.1 Parameter assignment and structure of parameter data record
Digital output module DQ 8x24VDC/0.5A SNK BA (6ES7132-6BF61-0AA0)
Manual, 09/2017, A5E32855878-AB
27
Parameters
The figure below shows the structure of the parameters for channels 0 to 7.
Enable a parameter by setting the corresponding bit to "1".

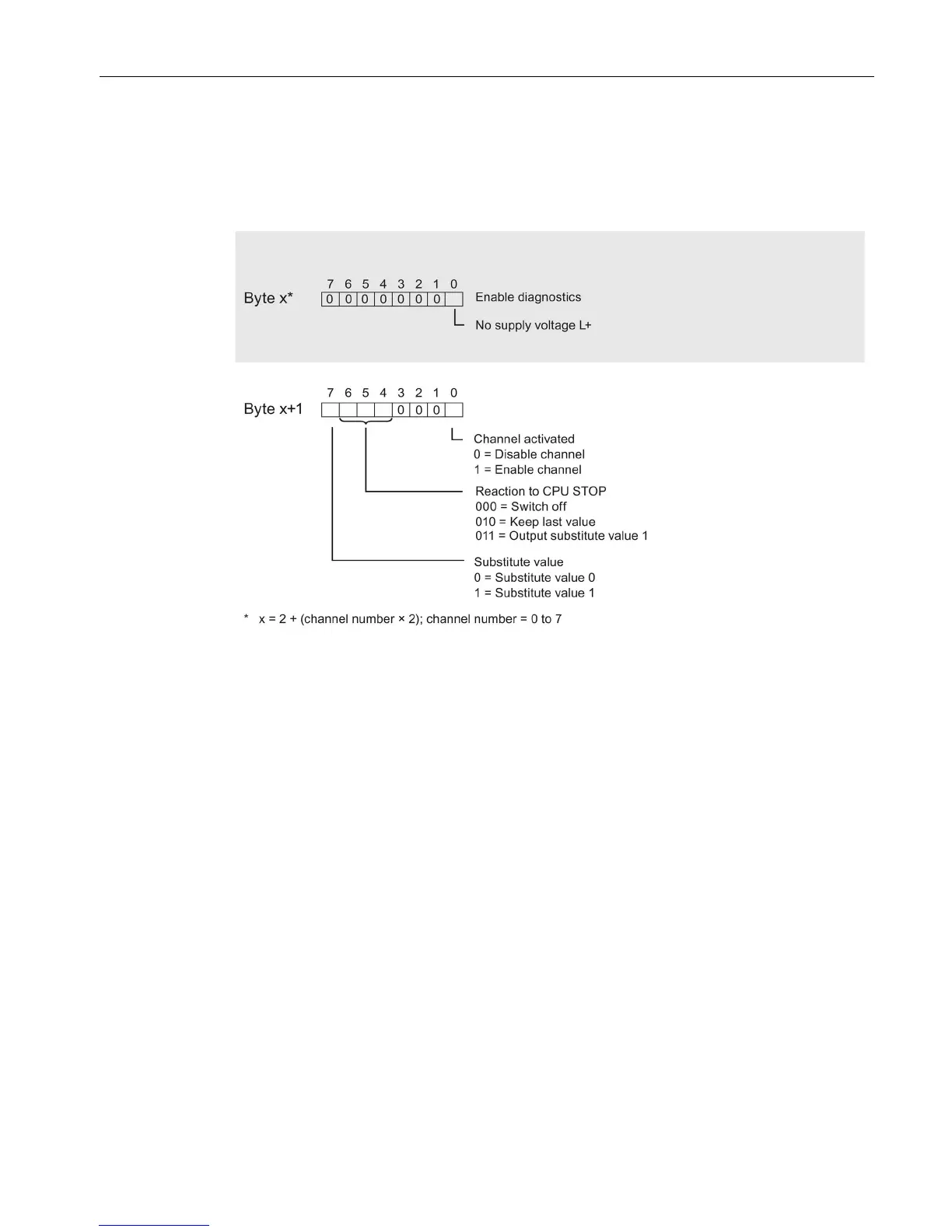

Figure A-3 Structure byte x to x+1 for the channels 0 to 7
