3.2 Configuration in network mode
From LOGO! Soft Comfort V8 onwards, you are now able to interconnect several
LOGO! base modules with each other and with other devices (WinCC and S7-
CPUs) in the new network view.
Communication between the devices will be configured automatically.
In addition, it is possible to display three programs at once and to drag&drop
signals from one program to the other.
3.2.1 Creating a project in network view and two-way programming
Adding a device in network view
Table 3-1

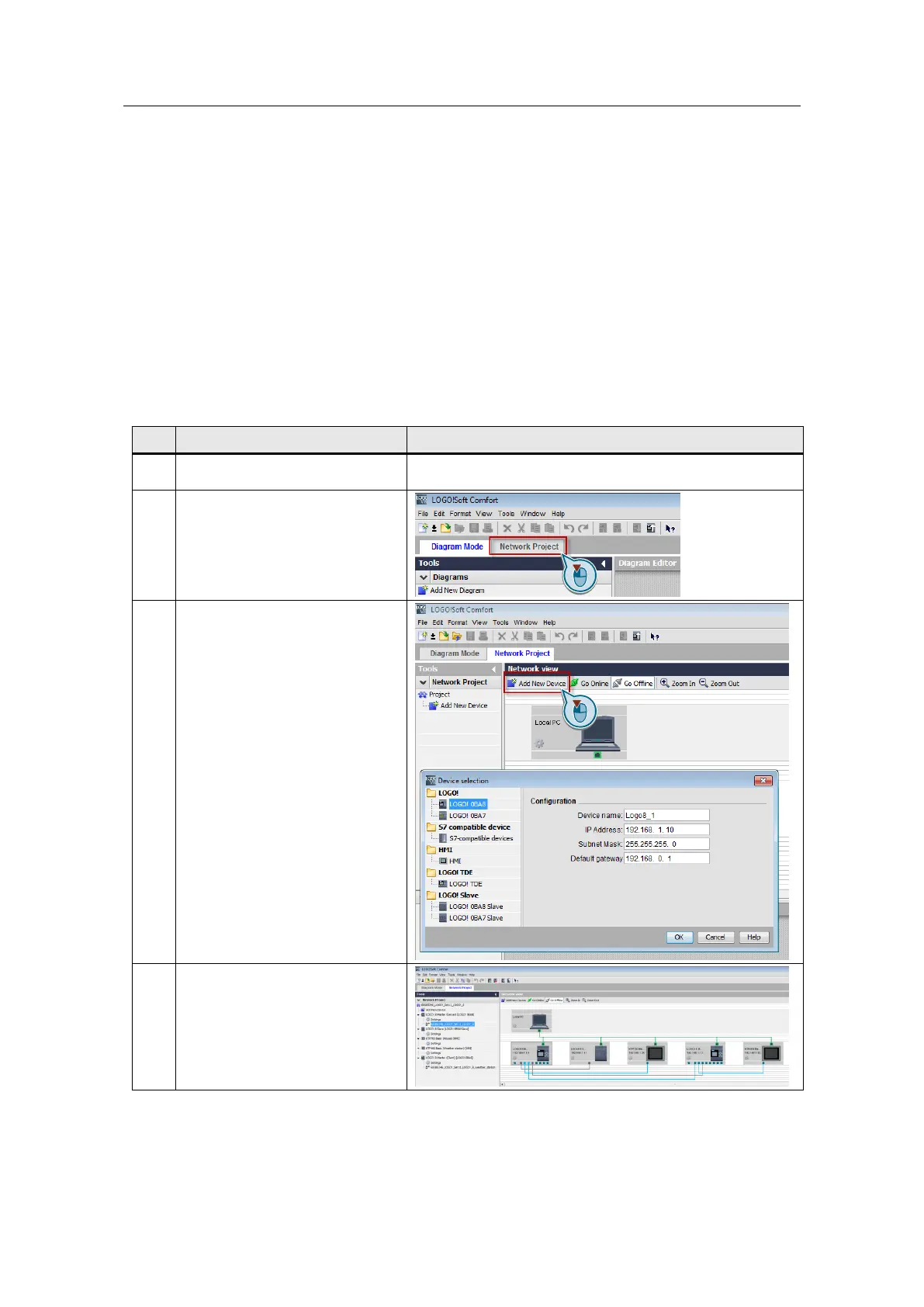

No.
Action/response
LOGO!Soft Comfort V8
1.
Start LOGO!Soft Comfort V8.
2.
Click on "Network project” tab to
open the network project view.
3.
Click on "Add new device”.
The subsequent window enables
you to add devices you want to
use to the network.
4.
The network view gives you an
overview of the devices used in
your network.

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
