5 Operation
House Control and Weather Sensors - LOGO! Set 11
Entry ID: 68585346, V2.1, 09/2018
29
 Siemens AG 2018 All rights reserved
5.1.4 System functions

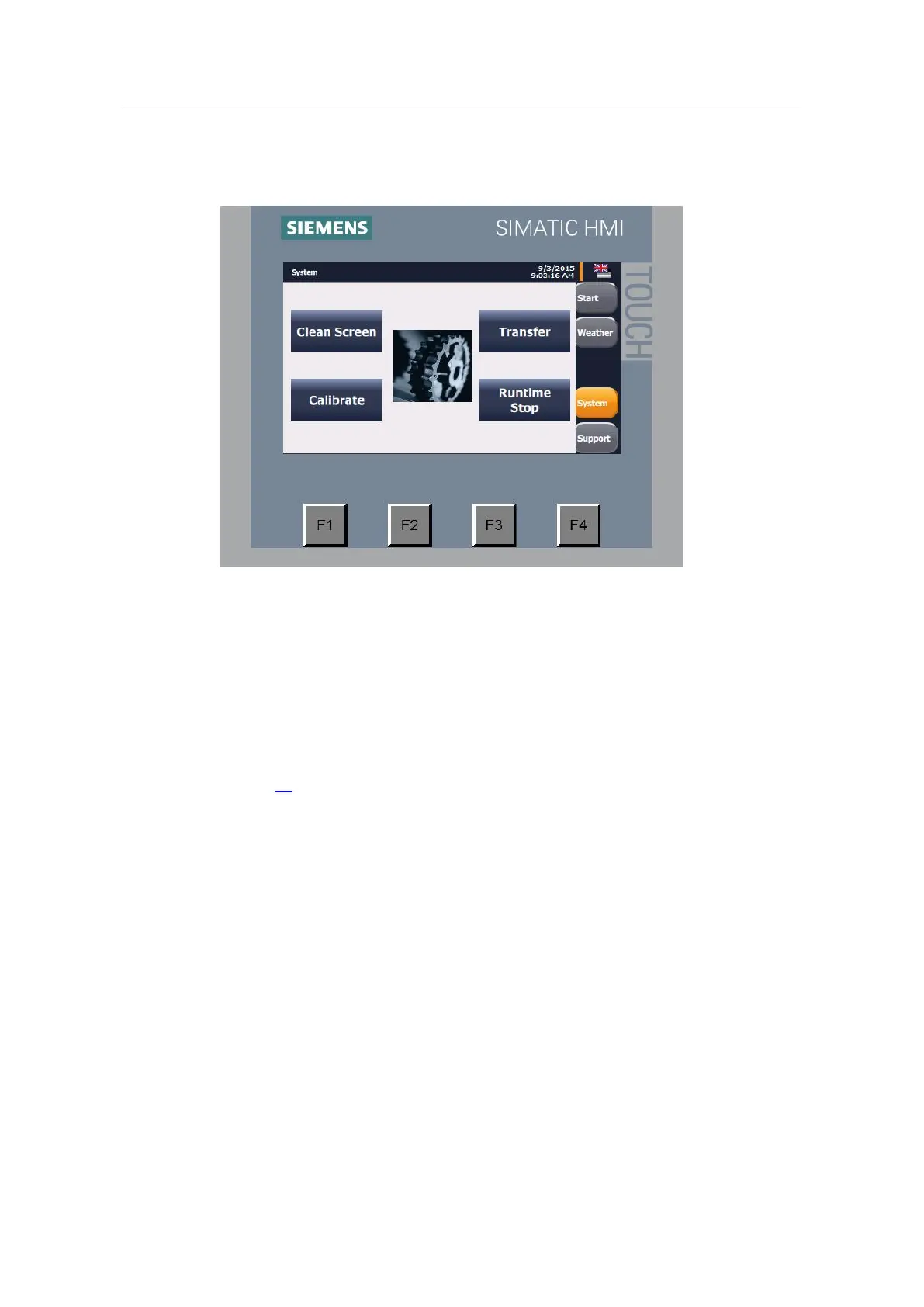

Figure 5-3
This screen provides system functions:
 Clean screen
 Calibrate
 (Data) transfer
 Runtime Stop
More information on the system functions can be found in the Basic Panel
manual \4\.

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
