4.3.3 Assigning devices and programs
Table 4-6
No.
Device
Program for the device in the zip file
1.
KTP400 weather station (Set 11)
68585346_LOGO!_Set11_weather_station_V21.ap15
2.
KTP700 (Set 10)
68585346_LOGO!_Set11_HMI_WinCC_V21.ap15
3.
LOGO! weather station (Set 11)
68585346_LOGO!_Set11_LOGO!8_weather_station.lsc
contained in the network project
68585346_LOGO!_Set11_LOGO!_8.lnp
4.
Master LOGO! (Set 9)
68585346_LOGO!_Set11_LOGO!_8.lsc
contained in the network project
68585346_LOGO!_Set11_LOGO!_v20.lnp
5.
Slave LOGO! (Set 9)
6.
LOGO! TDE (Set 9)

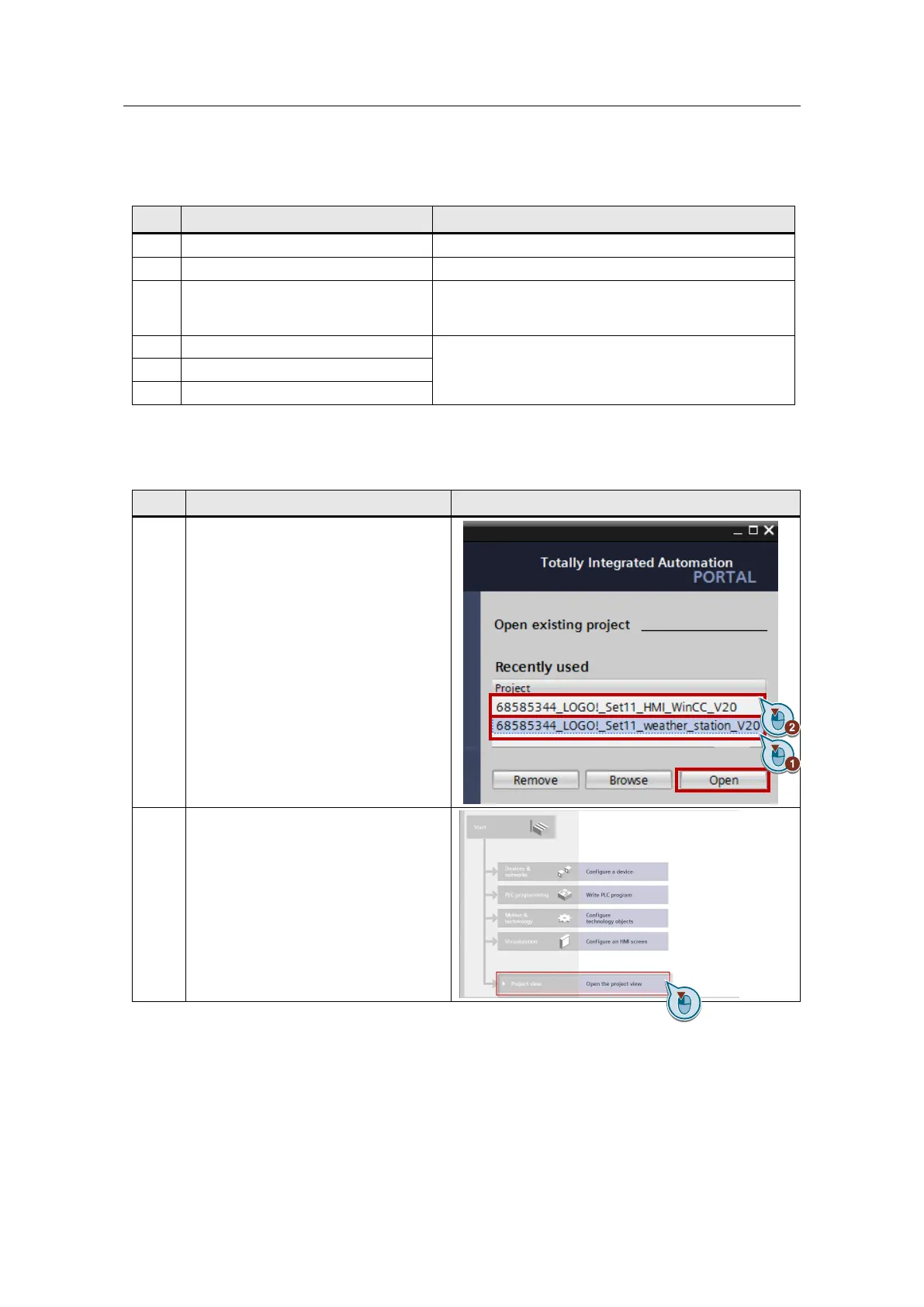

4.3.4 Loading the programs into the KTP400 and KTP700
Table 4-7
No.
Action/response
WinCC
1.
Start WinCC and with "Browse”, open
the project "68585346_LOGO!_
Set11 _weather_station_V20”.
Then click "Open”.
Note:
Repeat the steps of this table for the
project "68585346_LOGO!_Set11_
HMI_WinCC_V20" of the KTP700,
unless you would like to operate
Set 11 separately.
2.
Click on "Open the project view” to
open it.

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
