5 Operation
House Control and Weather Sensors - LOGO! Set 11
Entry ID: 68585346, V2.1, 09/2018
27
 Siemens AG 2018 All rights reserved
5 Operation
Hinweis
Operating via integrated and user defined webserver, the LOGO! display and
LOGO! TDE is described in LOGO! Set 9. For LOGO! Set 9 refer to the following
entry:
Building Automation Systems: House control with LOGO! and Master-Slave
communication (LOGO! Set 9)
https://support.industry.siemens.com/cs/ww/en/view/64143308
5.1 Monitoring with the KTP400
5.1.1 KTP400 screens
All KTP screens have a uniform toolbar on the right:
Press one of the buttons to go to the following screens:
 Start
 Weather
 System
 Support
 Language switching
Note
Synchronized language change from Basic Panel to LOGO! 8:
If the KTP400 is used to change the language with the button, the display
language on the LOGO! display and LOGO! TDE will also change.

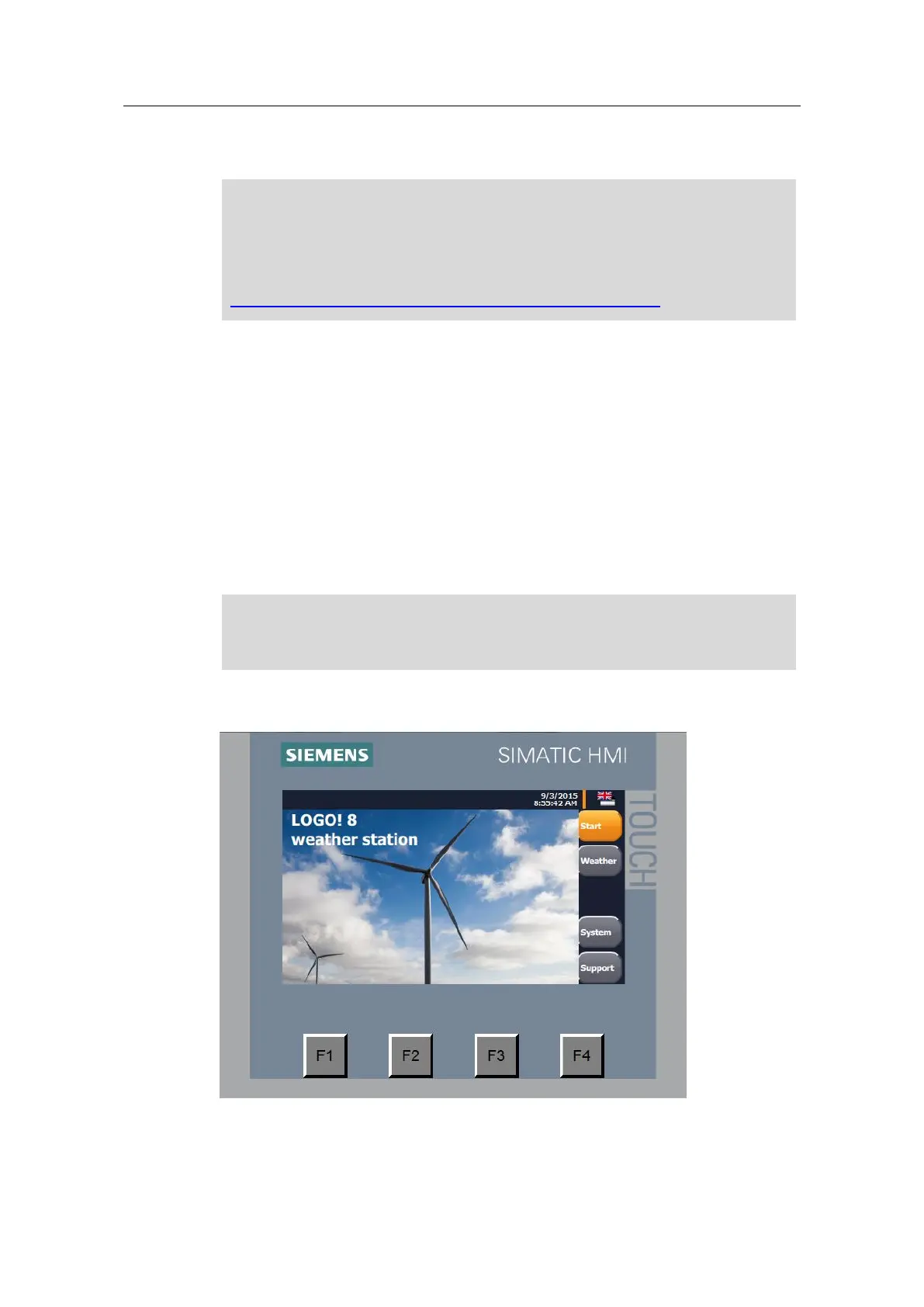

5.1.2 Start screen
Figure 5-1
This screen is displayed right after system start.

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
