Siemens SIMATIC HMI KTP400 User Manual

4 Installation and Commissioning
House Control and Weather Sensors - LOGO! Set 11
Entry ID: 68585346, V2.1, 09/2018
16
 Siemens AG 2018 All rights reserved
4.3 Commissioning
Note
For the following points you find information in LOGO! Set 9:
 Download LOGO! program in LOGO! controller
 Settings for web server access
For LOGO! Set 9 refer to the following entry:
Building Automation Systems: House control with LOGO! and Master-Slave
communication (LOGO! Set 9)
https://support.industry.siemens.com/cs/ww/en/view/64143308
4.3.1 Basic settings for the KTP400
Note
The IP address of the HMI panel can only be changed if Runtime has been
"stopped”.

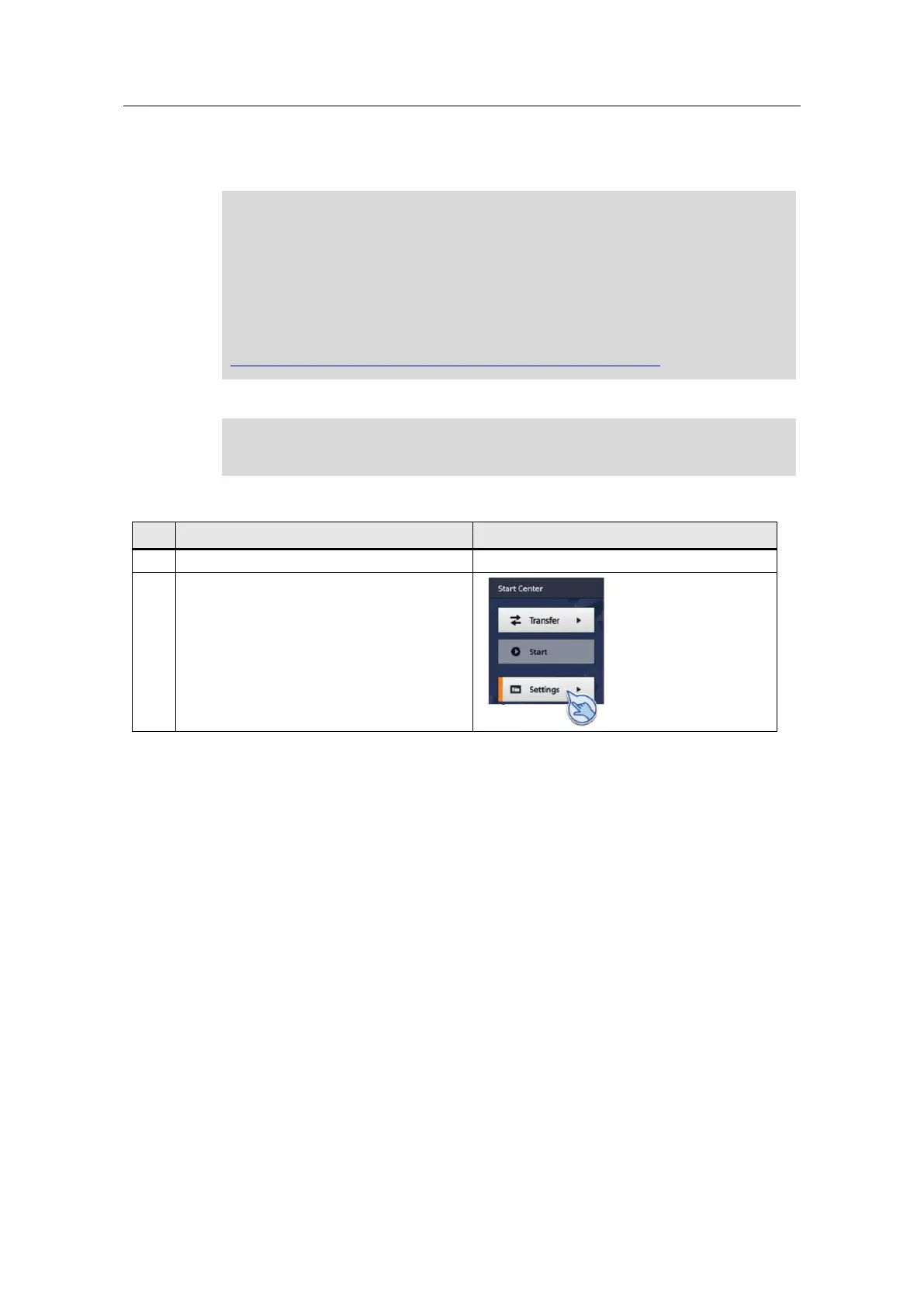

Table 4-4
No.
Action/response
KTP400 display
7.
Switch on the KTP400.
8.
Press "Settings" to open the panel settings.

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
