Siemens SIMATIC HMI KTP400 User Manual

5 Operation
House Control and Weather Sensors - LOGO! Set 11
Entry ID: 68585346, V2.1, 09/2018
31
 Siemens AG 2018 All rights reserved
5.2 Operator Control and Monitoring with KTP700 and
KTP400
Table 5-1

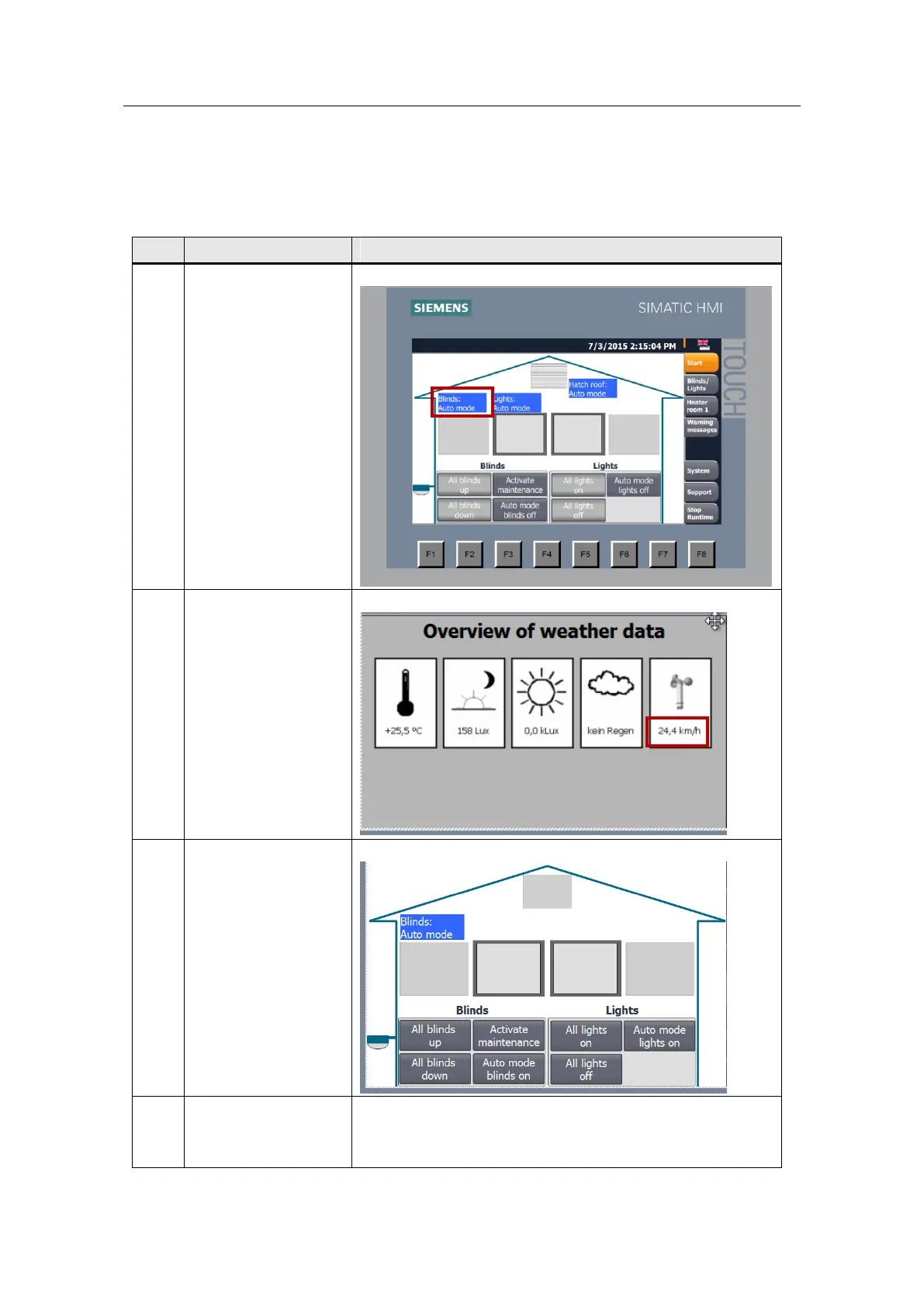

No.
Action/response
KTP700 and KTP400
1.
Verify on the KTP700
(LOGO! Set 10) that
"Automatic mode” for
the blinds is activated.
KTP700
2.
The wind speed
exceeds 20 km/h.
KTP400
3.
All blinds move up and
stay in this final position
for as long as the wind
is strong (>20 km/h).
KTP700
4.
The KTP700 displays a
warning message that
the wind speed has
increased.

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
