4 Installation and Commissioning
House Control and Weather Sensors - LOGO! Set 11
Entry ID: 68585346, V2.1, 09/2018
15
 Siemens AG 2018 All rights reserved

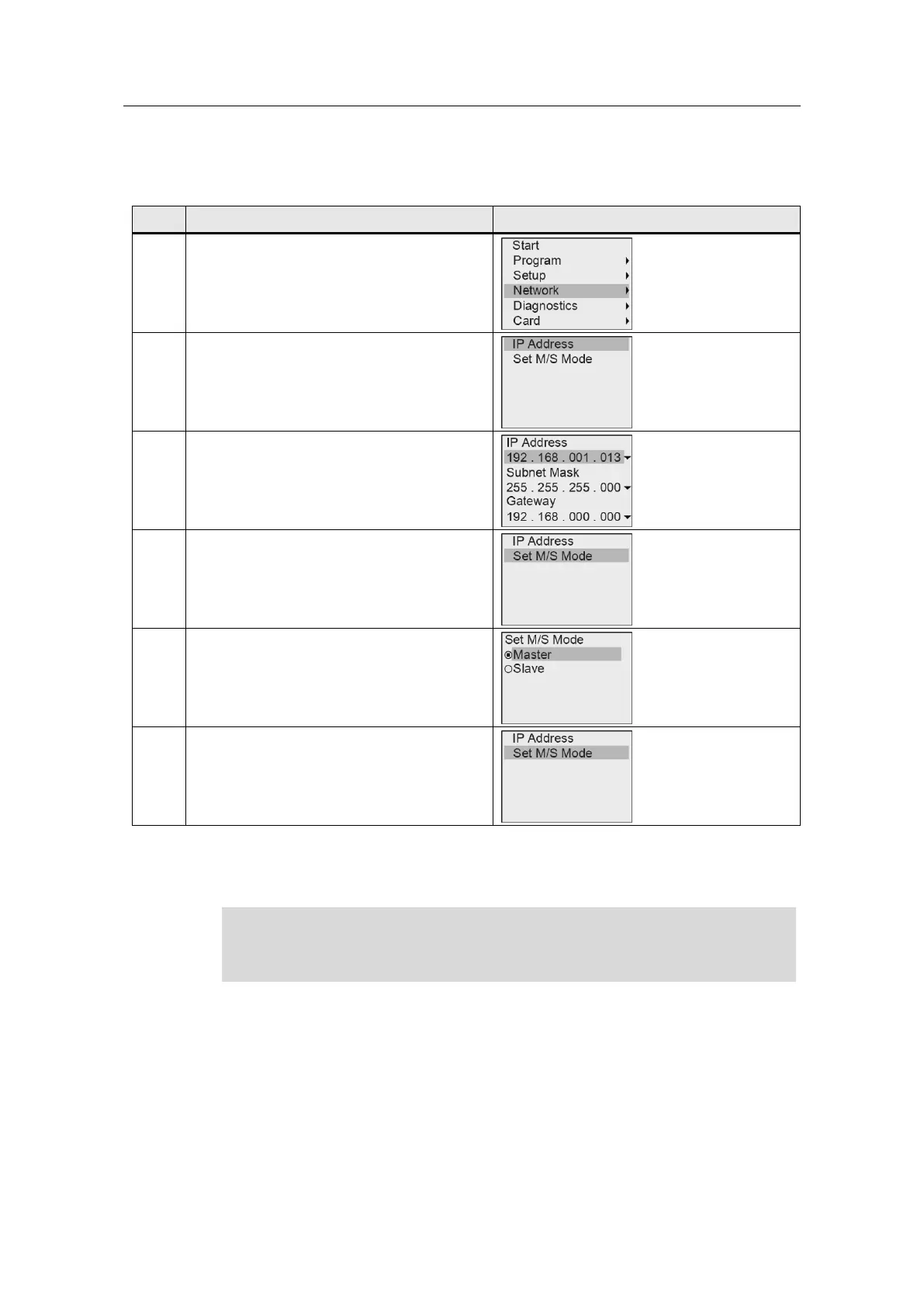

4.1.3 Assigning IP addresses to LOGO and setting the master mode
Table 4-3
No.
Action/response
LOGO! Display
1.
Go to the "Network” item via the LOGO!
display using the arrow keys C1▲ or C2▼ of
the LOGO! 8 and press OK.
2.
Select the "IP address” item.
3.
Press the OK button of the LOGO! controller
and use the arrow keys C1▲, C2▼, C3 ◄ and
C4 ► to enter your LOGO!’s IP address (here:
192.168.1.13). Confirm with the OK button.
4.
Press the ESC key to return to the previous
menu item and select "Set M/S mode”.
5.
For configuring the master LOGO!, select
"Master”.
6.
The configuration of the IP address and the
mode for the LOGO! is now complete. Press
ESC to return to the main menu
4.2 Software installation (download)
Note
It is assumed that the required software LOGO!Soft Comfort V8 and WinCC
have been installed on your PC. No previous experience with the software is
required.

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
