4 Installation and Commissioning
House Control and Weather Sensors - LOGO! Set 11
Entry ID: 68585346, V2.1, 09/2018
21
 Siemens AG 2018 All rights reserved

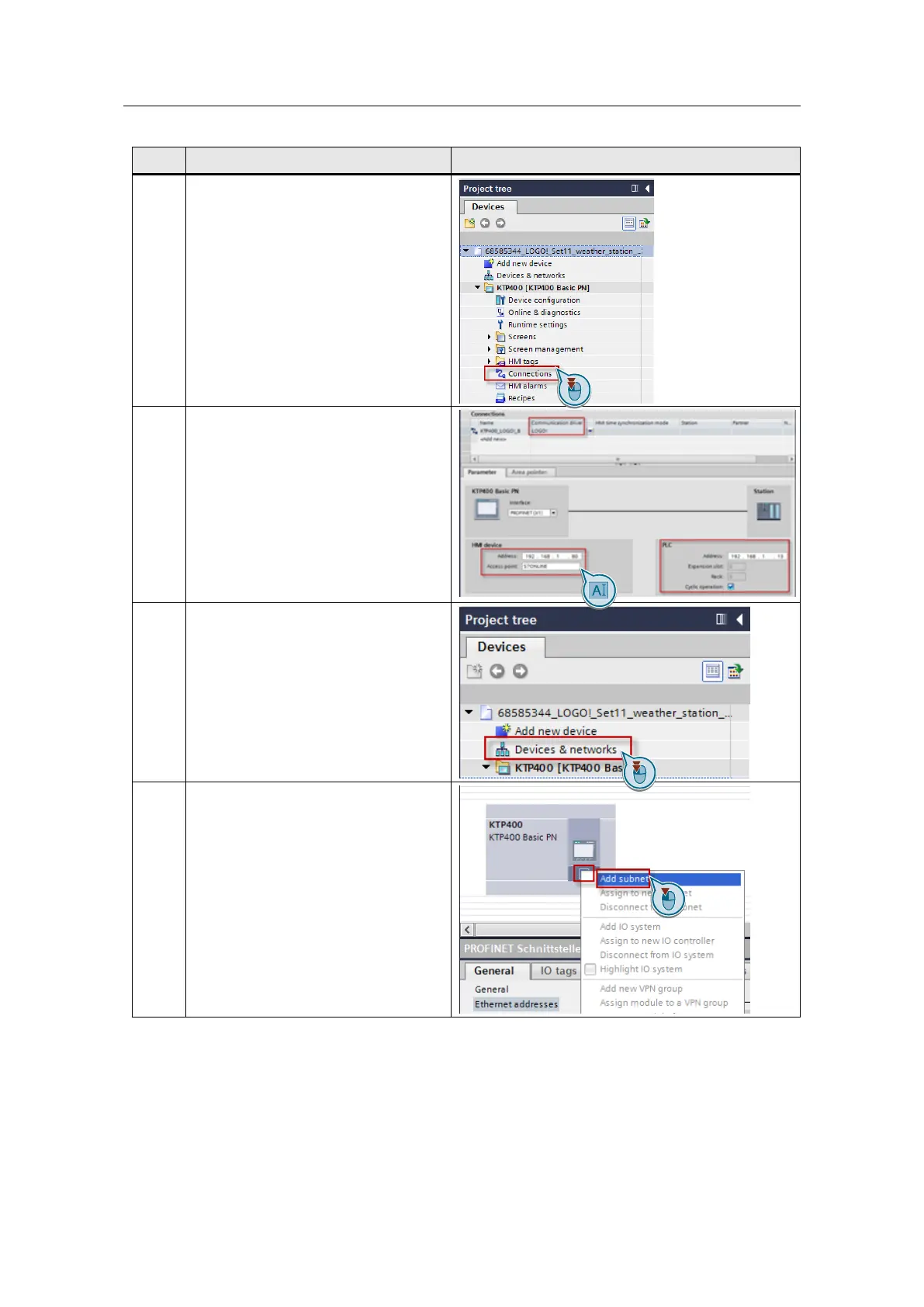

No.
Action/response
WinCC
3.
In the project tree under "KTP400
[KTP400 Basic PN]" go to
"Connections” and select it with a
double click.
4.
In "HMI device”, enter the IP address of
your Basic Panel (here: 192.168.1.80)
and press Enter to confirm.
Make sure that
 "S7ONLINE” is specified under
"Access point”.
 the master LOGO! IP address
is specified under "PLC” (here:
192.168.1.13).
 the check box "Cyclic
operation” is ticked.
5.
In the project tree, go to "Devices &
networks” and select it with a double
click.
6.
Make sure a subnet has been added to
the network. To create a subnet in the
network, open the context menu with a
right click on the Ethernet interface and
click on "Add subnet”.
Note:
In this application example, the subnet
has already been added in the WinCC
project.

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
