3 Mode of Operation

House Control and Weather Sensors - LOGO! Set 11

Entry ID: 68585346, V2.1, 09/2018

No.

Action/response

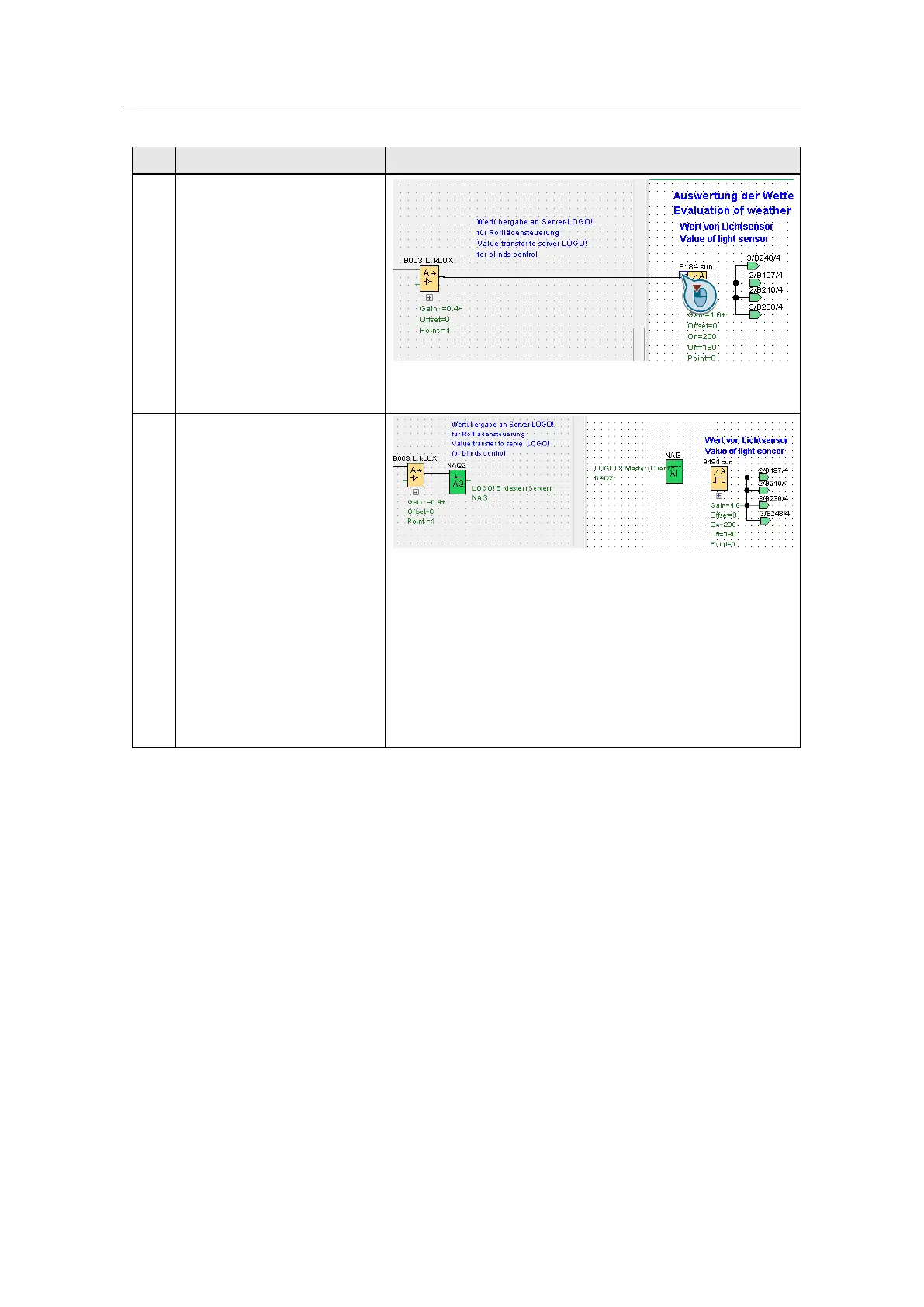

LOGO!Soft Comfort V8

Move the mouse pointer to the

output connection of one of the

function blocks you want to

connect and keep holding the

mouse button down.

Then, move the mouse pointer

to the function block you want

to connect the first function

block with.

When you release the mouse

button, LOGO!Soft Comfort V8

will connect both function

blocks.

Once both function blocks are

connected, LOGO!Soft

Comfort V8 will create a

function block pair and an

Ethernet connection and a

data transfer mechanism.

When the function blocks are

displayed in green,

configuration of the

communication between the

two LOGO! devices is

complete.

Note:

If one of the two function

blocks is displayed in red,

configuration of the

communication between the

two LOGO! devices is not yet

complete.
