4 Installation and Commissioning
House Control and Weather Sensors - LOGO! Set 11
Entry ID: 68585346, V2.1, 09/2018
24
 Siemens AG 2018 All rights reserved

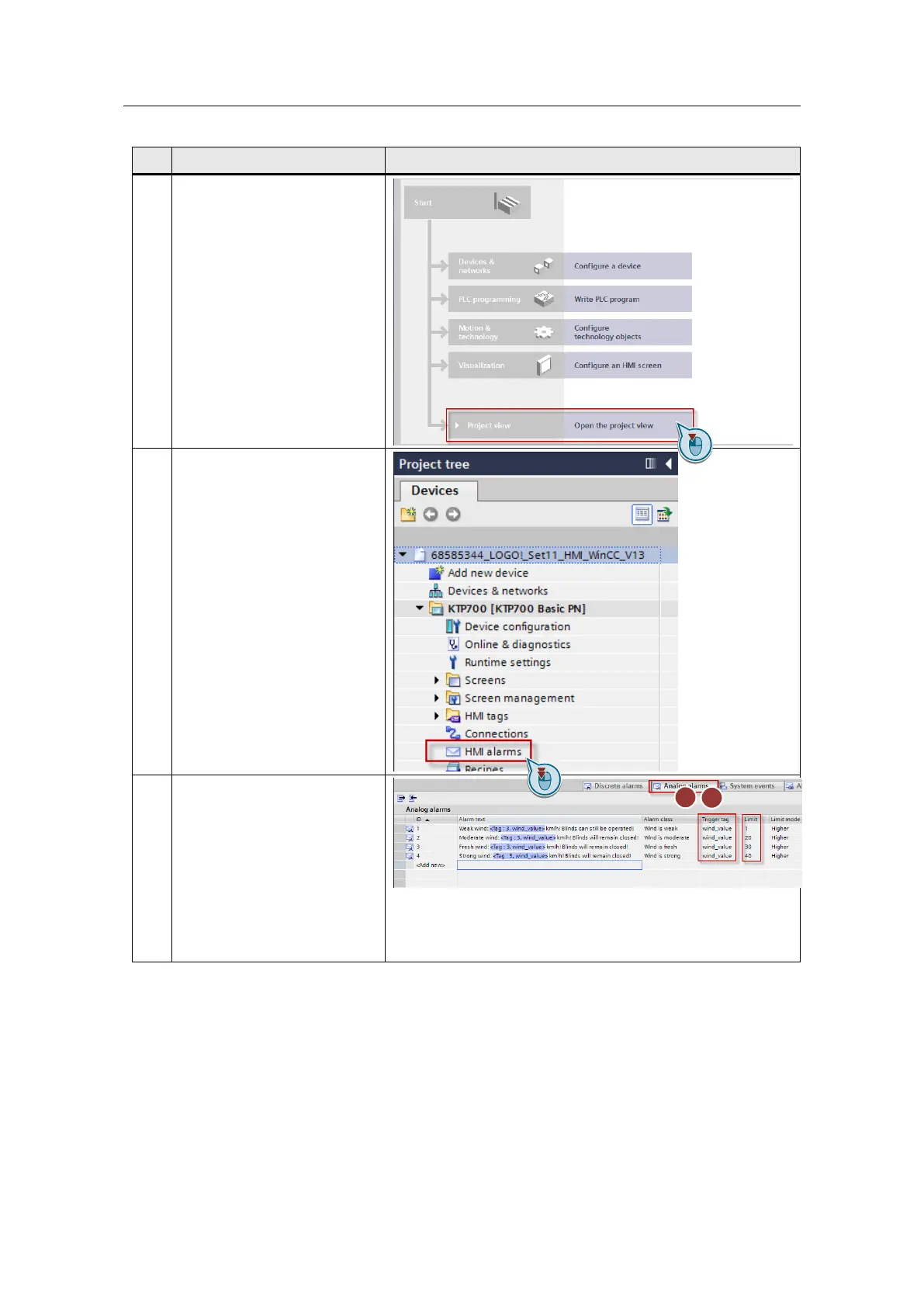

No.
Action/response
WinCC Basic
2.
Click on "Open the project
view” to open it.
3.
In the project tree under
"KTP700 [KTP700 Basic PN]",
go to "HMI alarms” and select it
with a double click.
4.
Navigate to the "Analog
alarms” tab. The following
options are provided:
1. "Trigger tag” allows you to
specify which tag to use for
monitoring the threshold
(here for wind).
2. Enter the limit value in
"Limit” to define when a
specific warning message
is displayed.
1
2

Siemens SIMATIC HMI KTP400 Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Color Depth	64k colors
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Voltage Supply	24 V DC
Mounting Type	Panel Mount
Number of Keys	4 function keys
Touchscreen	Yes
Relative Humidity	10% to 90% (non-condensing)
Protection Class	IP65 (front)
Communication Interfaces	PROFINET, USB
