Introduction
1-4
TP 070 Equipment Manual
Release 03/00

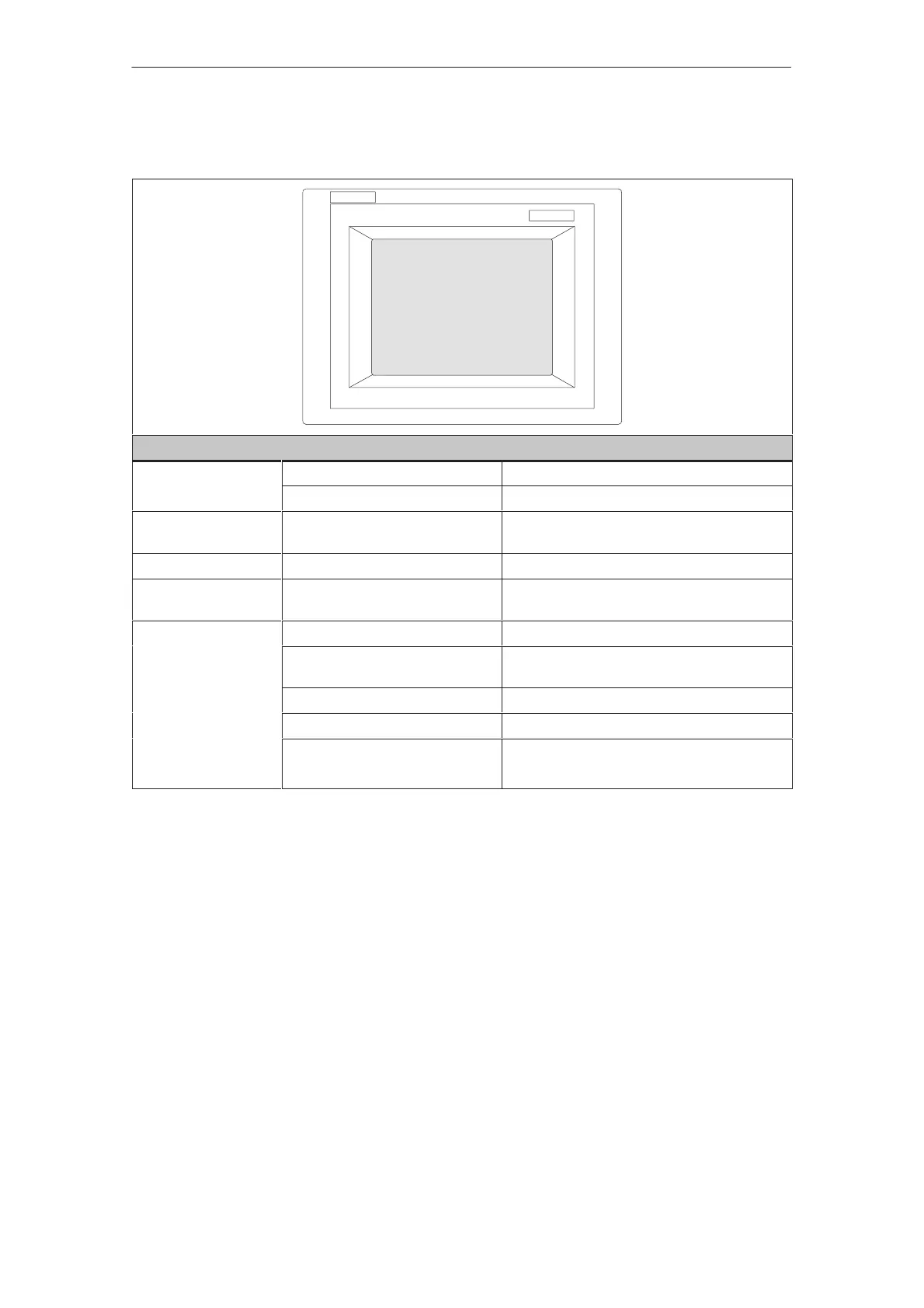

Overview of the TP 070
Overview: Model TP 070
Processor Type 32 bit RISC
Clock frequency 66 MHz
Configuration
memory
Capacity 128 kB
Software Operating system MicrosoftR WindowsR CE
Interfaces Serial interface to connect PLC,
PC/PU
1 × RS485
Display Type STN LCD/Blue mode
Active screen area
(B × H) in mm
116 × 87 (5.7’’)
Resolution (pixels) 320 × 240
Monochrome 4–level
Back–lighting CCFL tube
Half Brightness Life
1)
approx. (h) 50,000
1) Refer to the Glossary for a definition.
Further information
Detailed information on the technical data of the operating unit is provided in
appendix A of this manual.
Information concerning configuration of the operating unit is provided in the
Micro/WIN
user guide or
Micro/WIN
online help.
Connection of the operating unit to the PLC is described in chapter 7.
