Installing and connecting the device
3.3 Inserting the mounting gasket
Comfort Panels INOX, ITC INOX
18 Compact Operating Instructions, 09/2017, A5E33472156-AI

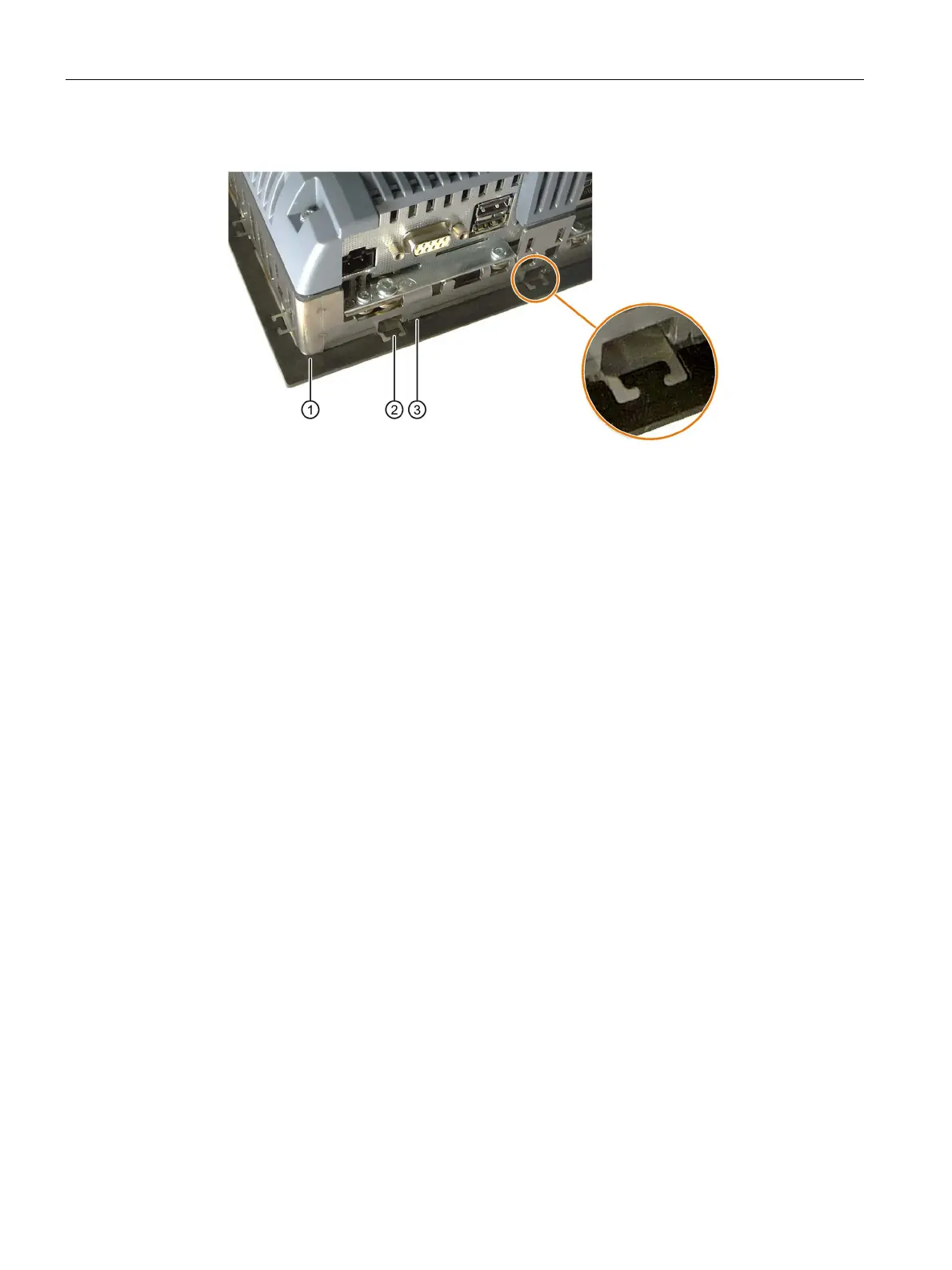

2. Place the mounting gasket as shown on the stainless steel face.
Seal rounding lies below the housing frame
Sealing clamp locks fully into the cutout
3. Check the correct fit of the mounting gasket.
The coding tap must be positioned at the location indicated. The round sections of the
seal and the seal clamps must lie in the cutouts specified for this purpose. If the mounting
gasket was inserted correctly, it lies flat and without warping on the stainless steel face.
The edge of the mounting gasket closes flush with the edge of the stainless steel face.
