1.2 Scope of delivery
Comfort Panels INOX, ITC INOX
8 Compact Operating Instructions, 09/2017, A5E33472156-AI
1.2
Scope of delivery
Depending on the order, the scope of delivery includes:
● 1 × device
● 1 × accessory pack with the following contents:
– 1 mounting gasket
– 1 clamping frame
– 1 power supply terminal
– 1 strain relief plate (only for TP700 Comfort INOX)
– Mounting clips
Device name
Number of mounting clips
TP700 Comfort INOX,
10
TP900 Comfort INOX 13
TP1200 Comfort INOX
12
TP1500 Comfort INOX 20
TP1900 Comfort INOX, ITC1900 INOX
18
● 1 × "Comfort Panels INOX, ITC INOX" product information
1.3
Layout of the devices

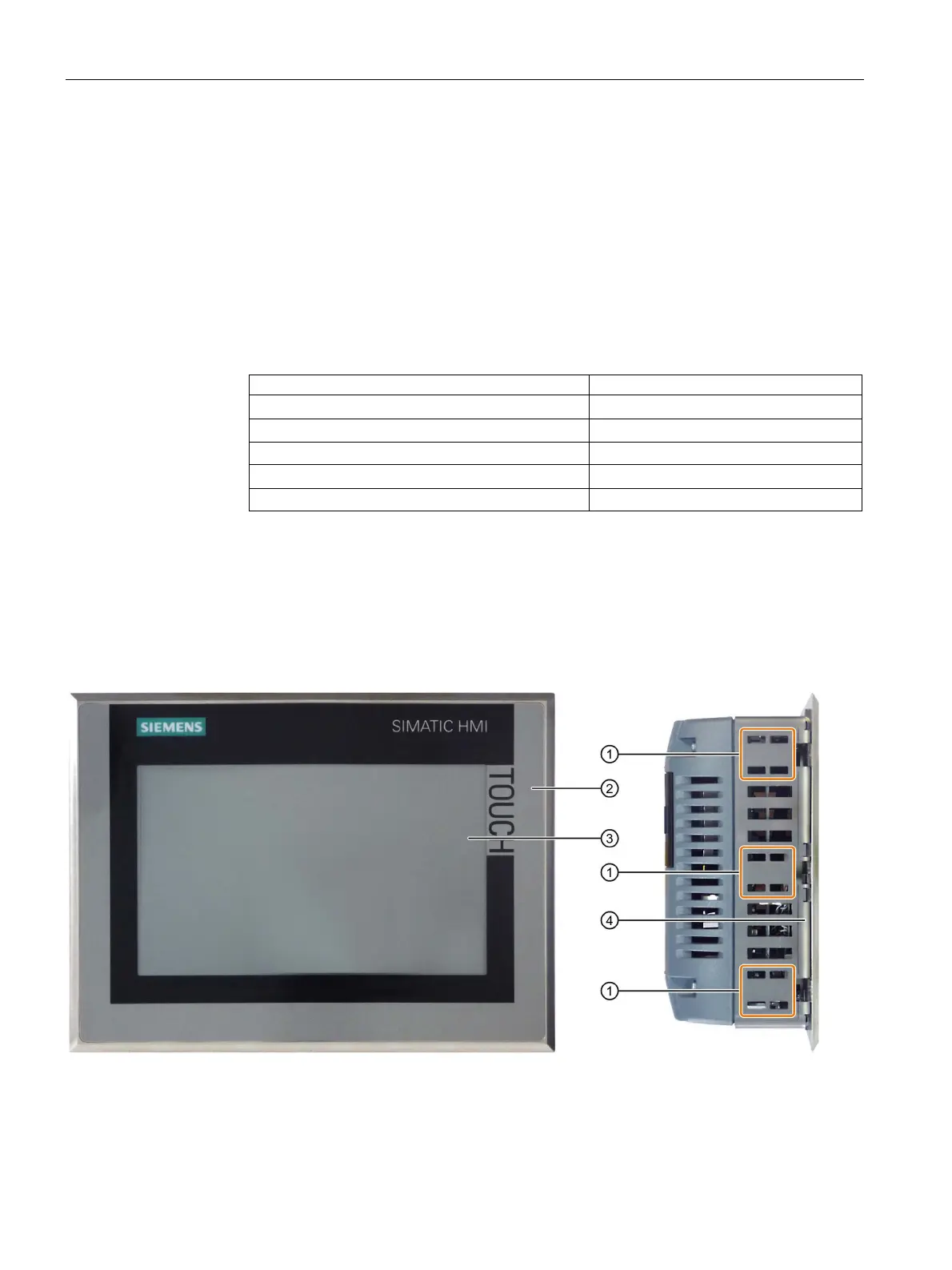

The figures in this chapter show the layout of the INOX devices using the TP700 Comfort
INOX as an example.
Front view and side view
①
Cutout for mounting clip
②
Stainless steel front
③
Display with touch screen
④
Mounting gasket
