Installing and connecting the device
3.3 Inserting the mounting gasket
Comfort Panels INOX, ITC INOX
Compact Operating Instructions, 09/2017, A5E33472156-AI
17
Inserting the mounting gasket
The following process describes the use of the mounting gasket for all devices based on the
example of the TP700 Comfort INOX.
The mounting gasket is unsymmetrical and is therefore equipped with a coding tap.
On all mounting gaskets of the INOX devices, the coding tap is on the bottom left in relation
to the rear of the device.
Note
Use a new mounting gasket, otherwise the degree of protection specified in the compact
operating instructions cannot be guaranteed.

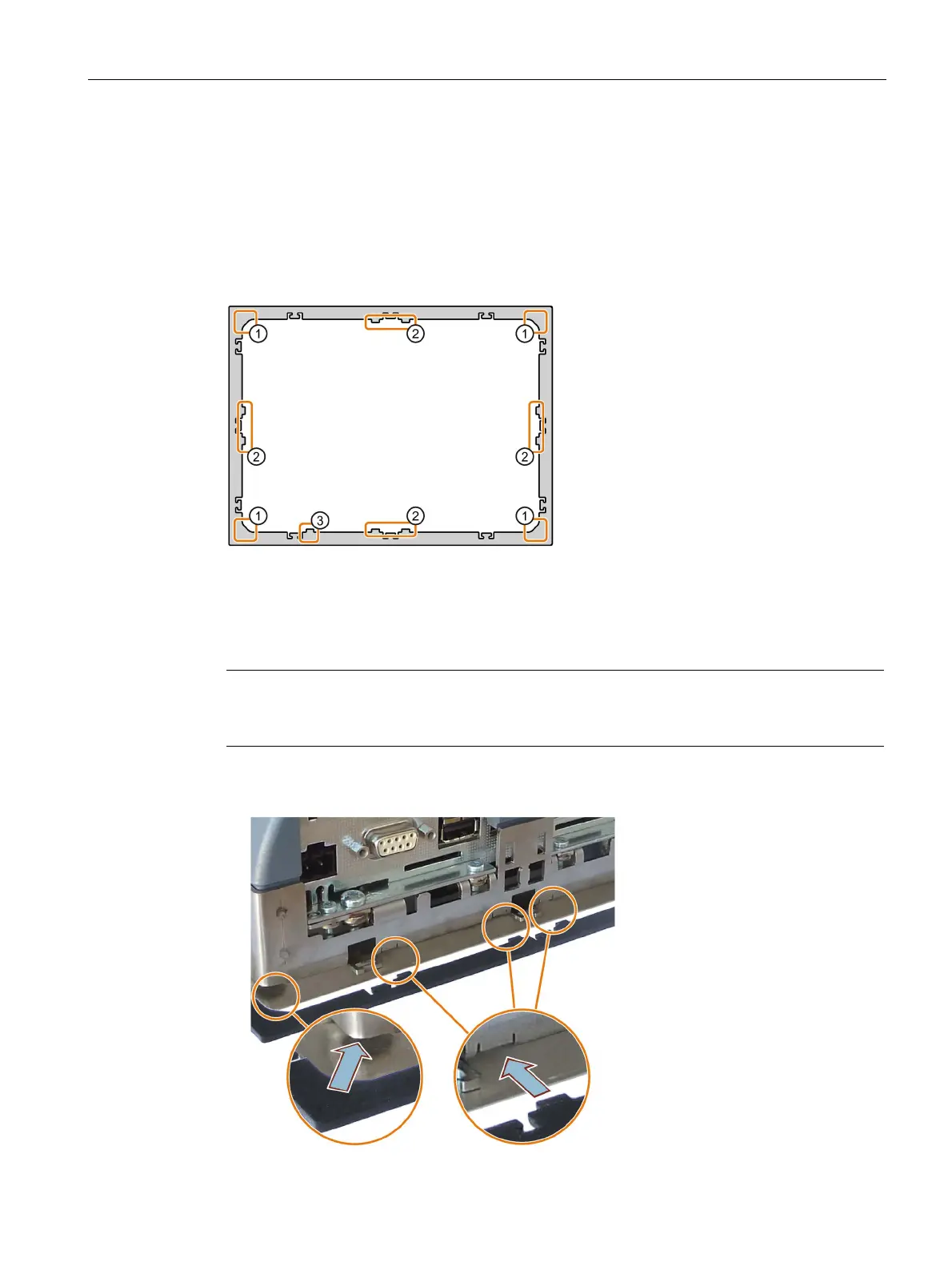

1. Find the coding tap on the mounting gasket and rotate the mounting gasket as shown in
the figure below.
