Overview
1.4 Interfaces
Comfort Panels INOX, ITC INOX
Compact Operating Instructions, 09/2017, A5E33472156-AI
9

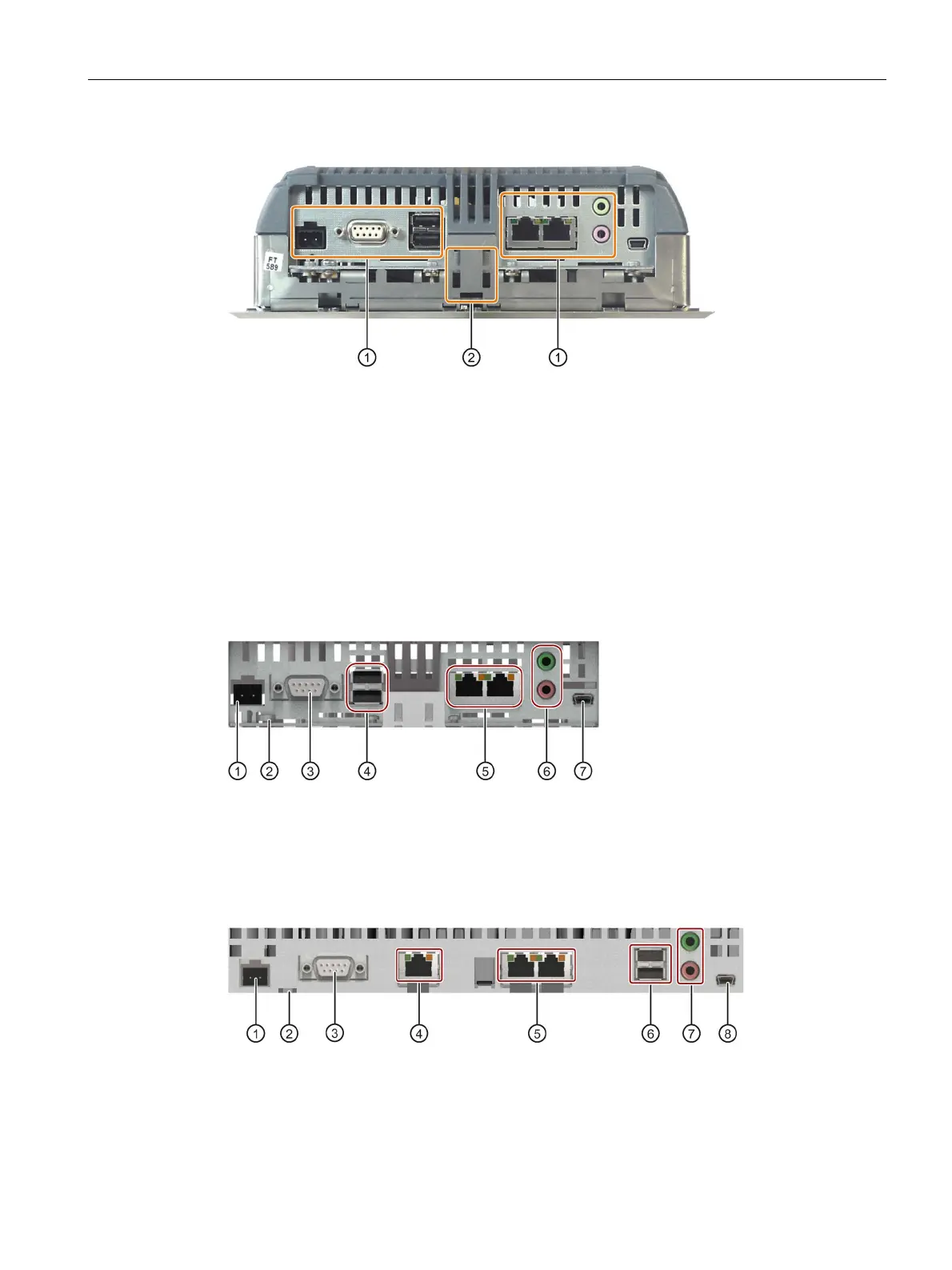

Bottom view
①
Ports
②
Cutout for mounting clip
1.4
Interfaces
Interfaces of the Comfort INOX devices
TP700 Comfort INOX, TP900 Comfort INOX, TP1200 Comfort INOX
①
X80 power supply connector
⑤
X1 PROFINET (LAN), 10/100 Mb
②
Connection for equipotential bonding (ground)
⑥
X90 Audio Line IN / OUT
③
X2 PROFIBUS (Sub-D RS422/485)
⑦
X60 USB type Mini B
④
X61 / X62 USB type A
TP1500 Comfort INOX, TP1900 Comfort INOX
①
X80 power supply connector
⑤
X1 PROFINET (LAN), 10/100 Mb
②
Connection for equipotential bonding (ground)
⑥
X61 / X62 USB type A
③
X2 PROFIBUS (Sub-D RS422/485)
⑦
X90 Audio Line IN / OUT
④
X3 PROFINET (LAN), 10/100/1000 Mb
⑧
X60 USB type Mini B
