Siemens SIMATIC IOT User Manual

Hardware descriptions
10.2 IOT2050 Advance/Basic: Motherboard
SIMATIC IOT2050
110 Operating Instructions, 03/2024, A5E39456816-AF

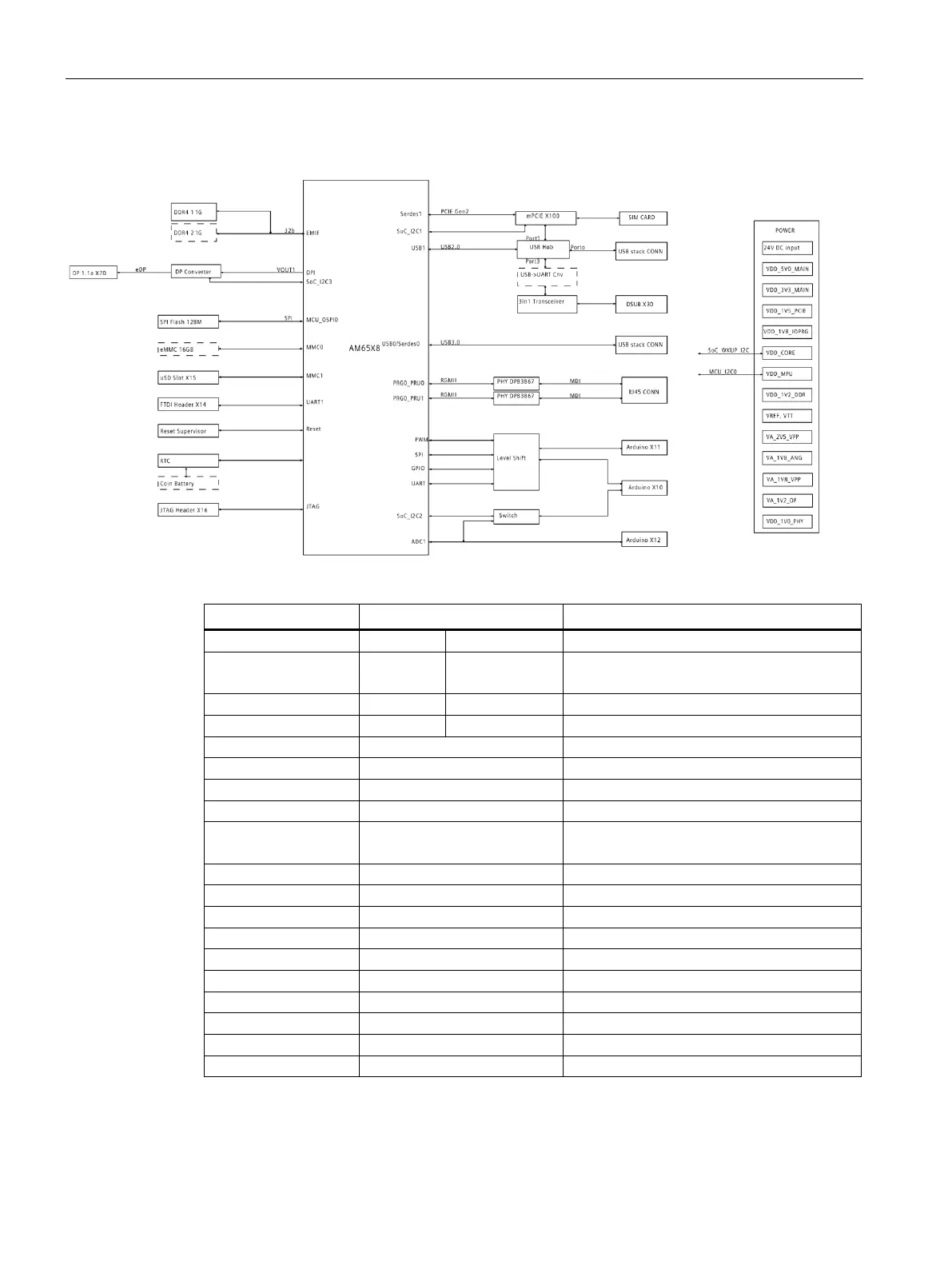

The following figures show the diagram for IOT2050 Advance/Basic.
Note: the parts in dash rectangles are only available for advanced versions.
Component/interface
Description / inscription
Meaning, comment
H2800
LEDs
PWR
Power (green)
H1801
STAT
OS is running (Green Blink).
OS is not running (Red blink).
H1300
USER1
User LED (green/red/orange), programmable
H3300
USER2
User LED (green/red/orange), programmable
S1
RESET
For a reset of the CPU
S2
USER
Status can be queried with programming
X1
Ethernet 1 and Ethernet 2
X30
COM D-Sub9
X60
USB A Host
X60-USB1: USB3.0 Type A
X60-USB2: USB2.0 Type A
X70
DisplayPort
X14
UART Debug
X40
Battery-Con
X50
µSD slot
X11, X13
Arduino, 8-pin (2x)
X10
Arduino, 10-pin
X12
Arduino, 6-pin
X15
ICSP
Part of Arduino Interface
X17
DediProg Connector
X80
Power supply
