3.2.2 Mounting on DIN rails
3.2.2.1 Secure the mounting clips
Requirement
• The DIN rail is installed at the installation site (35 mm standard profile).
• Mounting bracket and mounting clamps
• Two screws
• T8 screwdriver

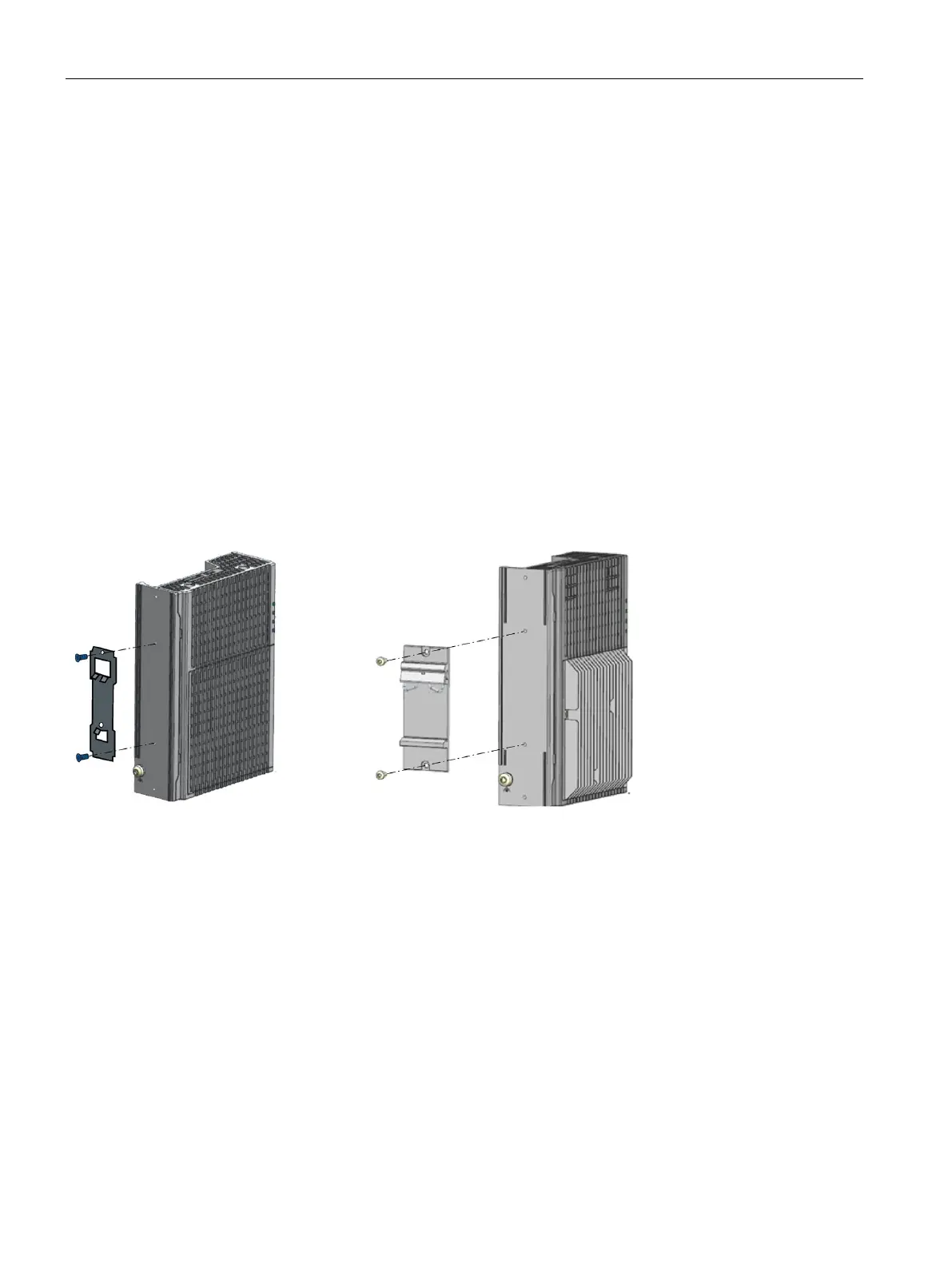

Secure the mounting clips for vertical mounting
1. Lay the rail clamp on the rear of the device.
2. Fasten the rail clamp with the supplied screws.
Other configurations for IOT2050
IOT2050 SM
Secure the mounting clips for horizontal mounting
1. Lay the rail clamp on the rear of the device.
2. Fasten the rail clamp with the two supplied screws.
3. Lay the brackets on the rear of the device. Align the bracket edge with the device edge.
4. Fasten the brackets with the supplied screws.
