Hardware descriptions
10.3 IOT2050 M.2: Motherboard
SIMATIC IOT2050
112 Operating Instructions, 03/2024, A5E39456816-AF
10.3 IOT2050 M.2: Motherboard

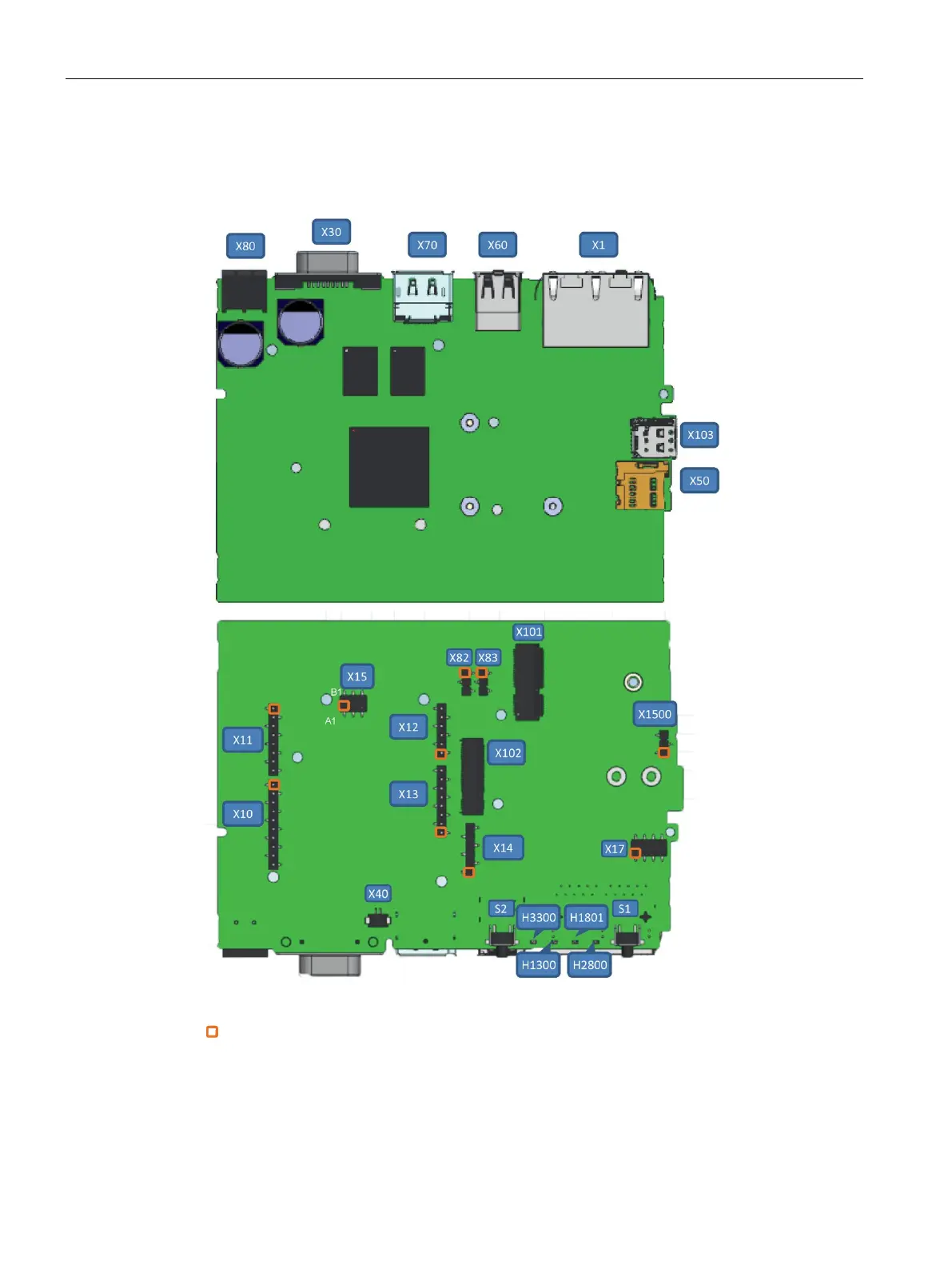

The following figures show the motherboard of MLFB 6ES7647-0BB00-1YA2.
