Expand device
5.3 Install Mini PCIe card
SIMATIC IOT2050
58 Operating Instructions, 03/2024, A5E39456816-AF
5.3.2 IOT2050 Basic/Advance: Installing Mini PCIe card
Applicable Configuration
This operation is only applicable for the following configurations:
• IOT2050 Basic: 6ES7647-0BA00-0YA2
• IOT2050 Advance: 6ES7647-0BA00-1YA2
Requirement
• The device is disconnected from the power supply.
• A Mini PCIe card
• Two M2 screws (supplied in accessory kit)
Procedure
The following example describes the installation of a Mini PCIe card, including mounting of
the antenna jacks. If the Mini PCIe card you install doesn't have an antenna, the work steps 4,
7 and 8 are not required.
Then follow these steps:

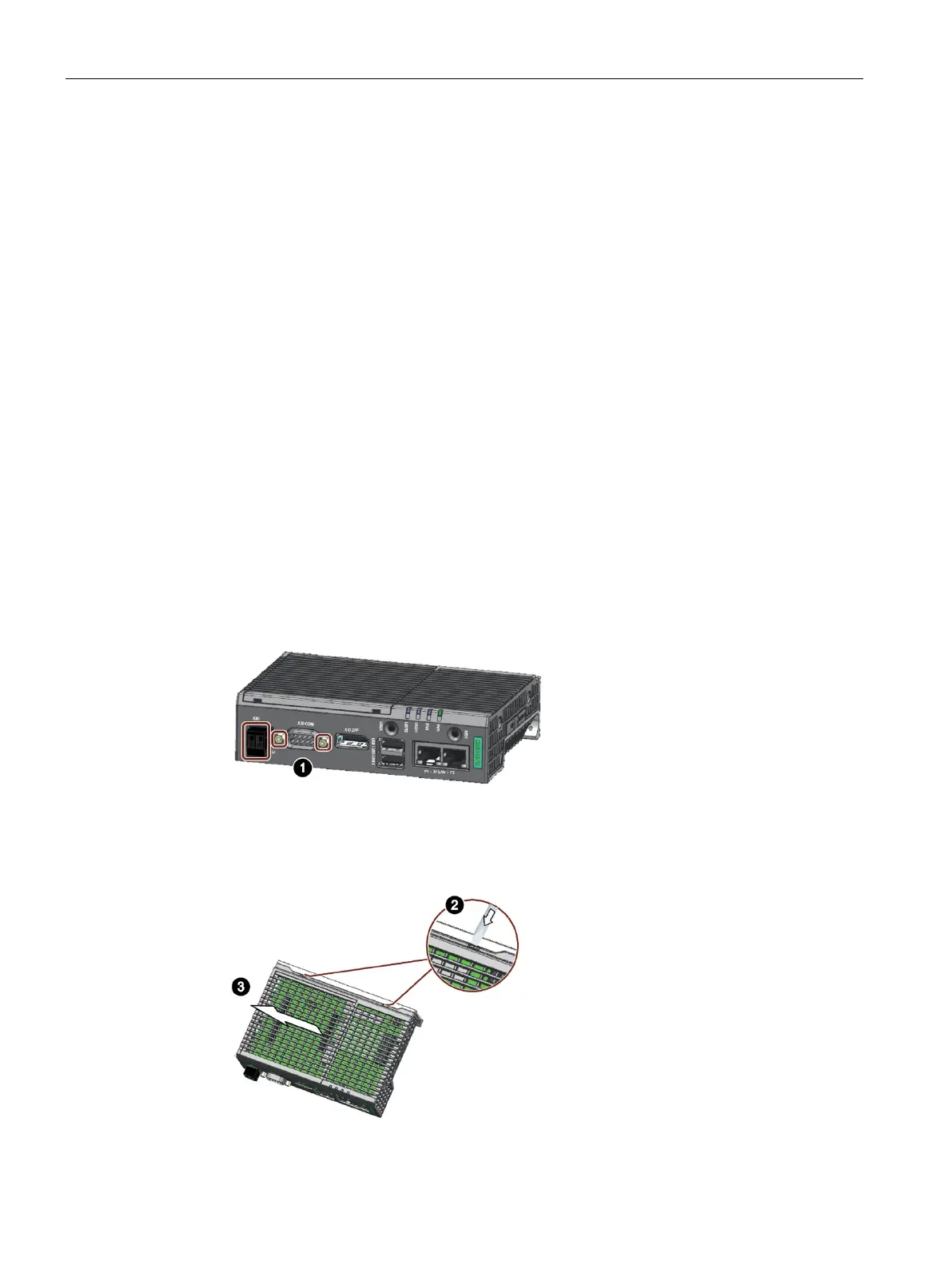

1. Remove the power plug and marked screws.
2. Loosen the top housing. Carefully press with the blade of a flat-blade screwdriver in the
marked recesses and carefully pull on the appropriate place on the top housing of the
enclosure.
3. Remove the top housing of the enclosure.
