5.3 Install Mini PCIe card
SIMATIC IOT2050
Operating Instructions, 03/2024, A5E39456816-AF
59

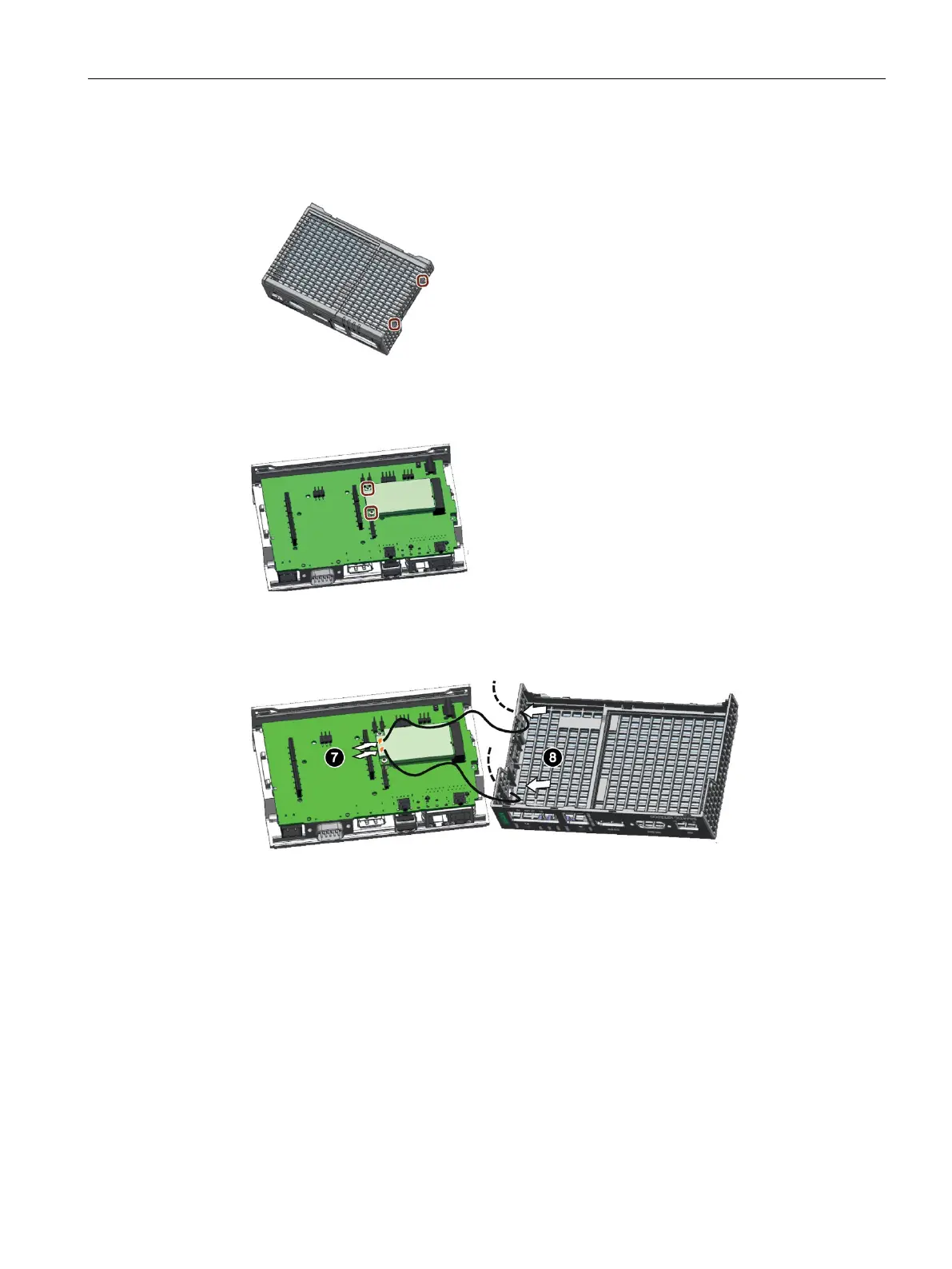

4. Drill holes with a corresponding diameter at the marking shown for mini PCIe installation
accessory. There are four reserved antenna-holes, two one each side of the top housing.
5. Insert the Mini PCIe card in the Mini PCIe interface on the motherboard.
6. Fix the mini PCIe card with two M2 screws.
7. Connect the cables of mini PCIe installation accessory to the Mini PCIe card.
8. Get the cable of mini PCIe installation accessory out of the housing through the whole
drilled in step 4.
