5.3 Install Mini PCIe card
SIMATIC IOT2050
60 Operating Instructions, 03/2024, A5E39456816-AF
Installing the top housing

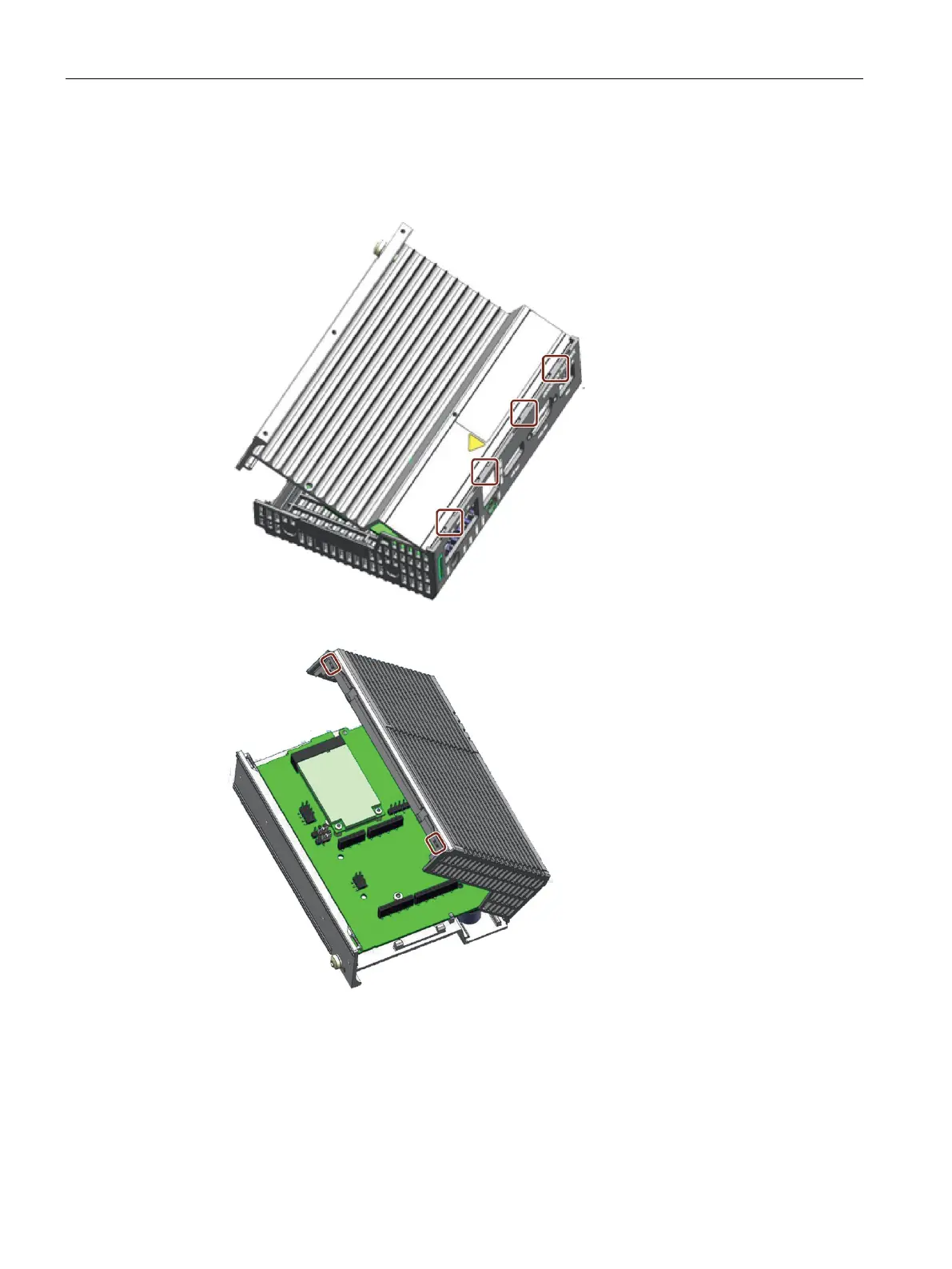

1. Align the bottom of the top housing to the heatsink edge. Make sure the marked hooks
hooked the heatsink. Carefully insert the COM interface into the top housing.
2. Insert the two plastic clips of top housing into the clip holes on heatsink.
3. Press the top housing to fix the clips.
Then install power plug and screws for COM interface.
