5.2 Install Arduino shield
SIMATIC IOT2050
Operating Instructions, 03/2024, A5E39456816-AF
53

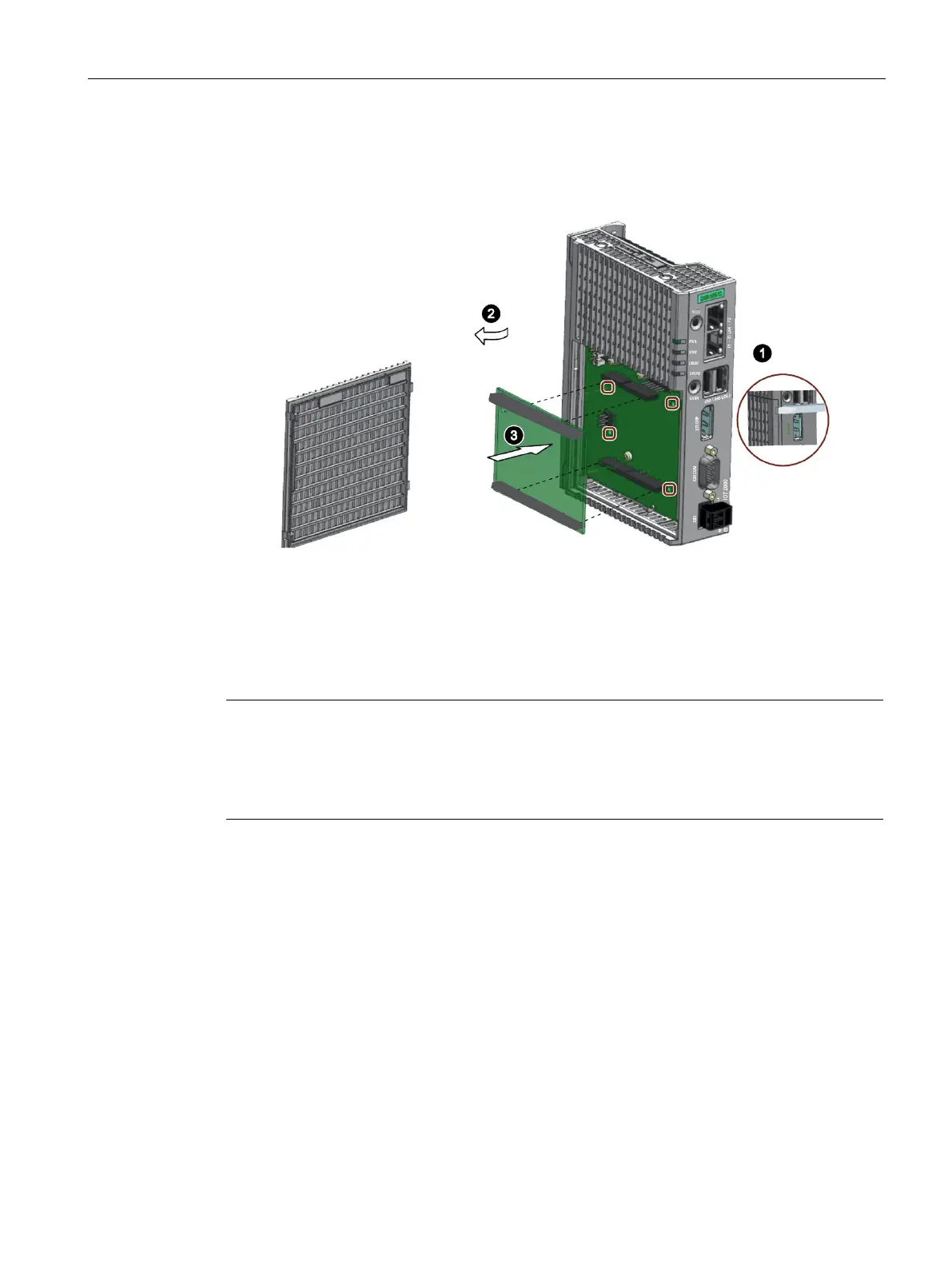

1. Loosen the shield cover. Carefully press with the blade of a flat-blade screwdriver in the
marked recesses and carefully pull on the appropriate place on the shield cover.
2. Remove the shield cover.
3. Insert the Arduino shield into the motherboard. Ensure that the contact pins of the Arduino
shield fit perfectly on the contact strips of the motherboard and that the components of the
Arduino shield do not touch the components of the motherboard.
Note: Customize the shield cover according to the Arduino shield.
Only use fixing elements made from plastic.
You can use the four boreholes in the motherboard to additionally fasten the Arduino shield
on the motherboard. The boreholes are shown in the figure above. Only use fixing elements
made from plastic, not metallic or conductive materials.
