5.3 Install Mini PCIe card
SIMATIC IOT2050
64 Operating Instructions, 03/2024, A5E39456816-AF

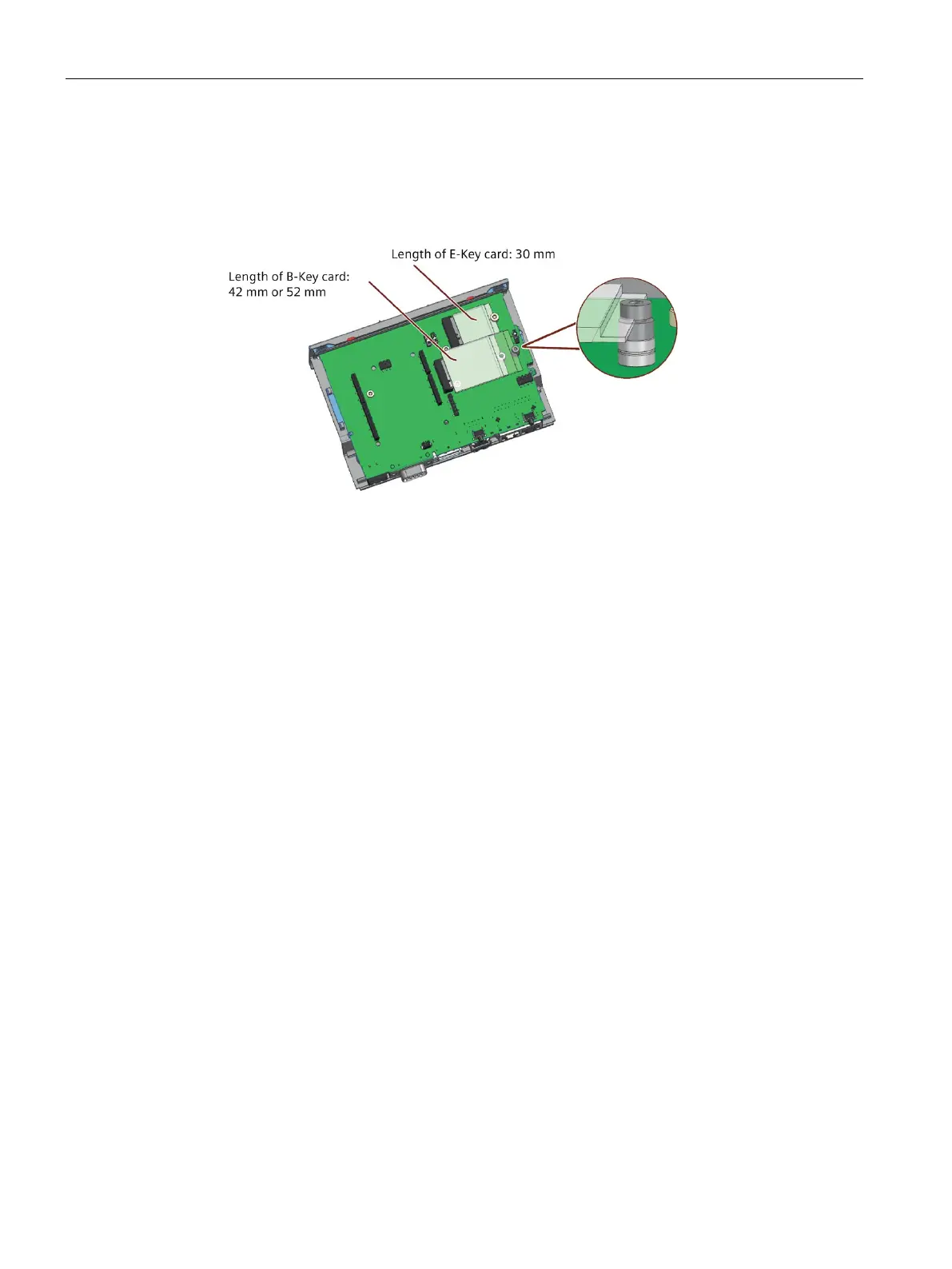

6. Fix the M.2 card.
– For M.2 card on E-key, fix it with a M3 screw.
– For M.2 card on B-key, make sure you fix the card between the spacer and the screw
head.
7. Connect the cables of M.2 installation accessory to the M.2 card.
8. Get the cable of M.2 installation accessory out of the housing through the whole you drilled.
