Mounting the device
3.2 Mounting on DIN rails
SIMATIC IOT2050 Starterkit
12 Product Information, 06/2021, A5E50831253-AA

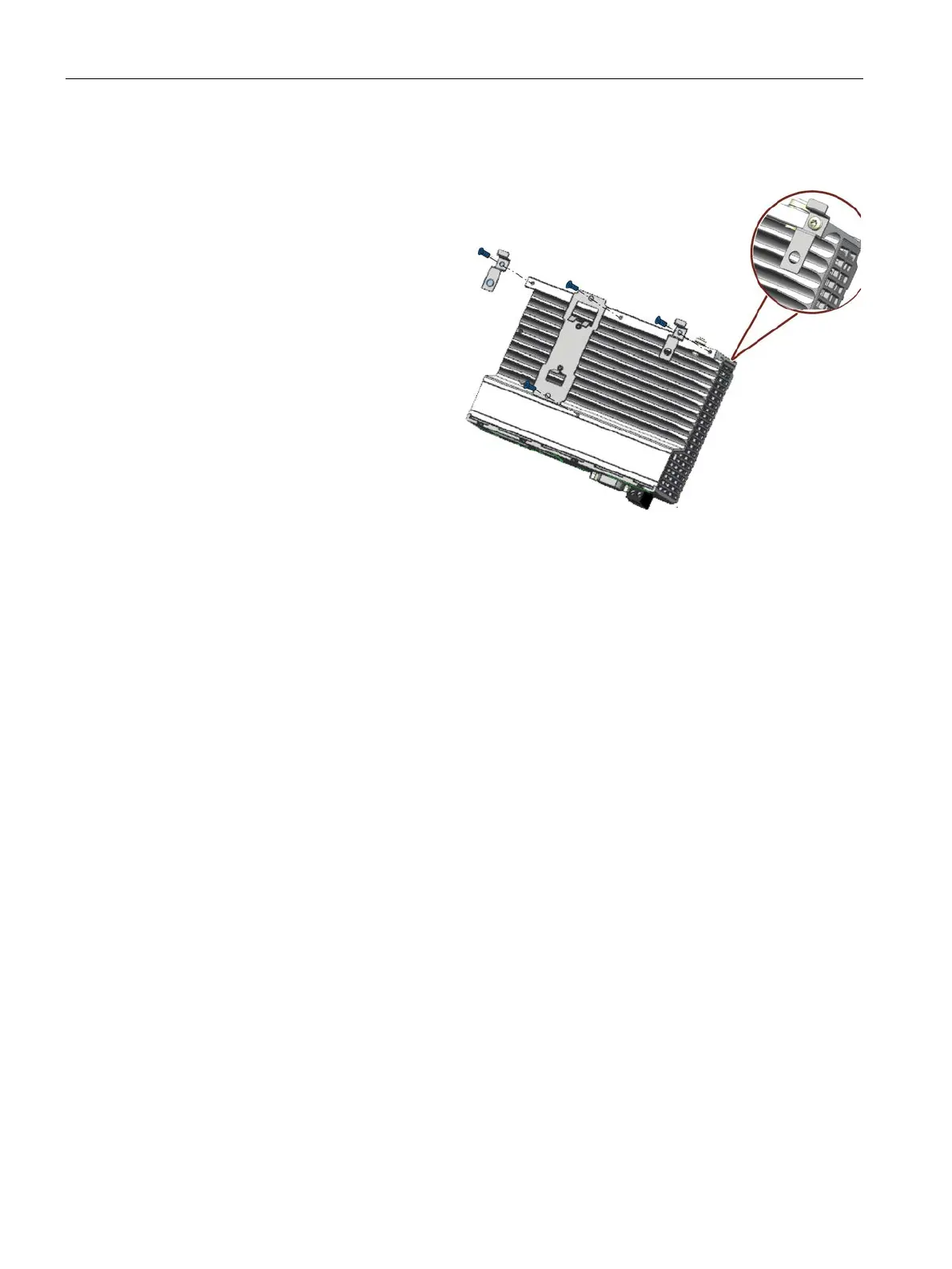

Secure the mounting clips for horizontal mounting
1.
Lay the rail clamp on the rear of
the device.
2.
Fasten the rail clamp with the
two supplied screws.
3.
Lay the brackets on the rear of
the device. Align the bracket edge
with the device edge.
4.
Fasten the brackets with the
supplied screws.
