Mounting the device
3.3 Wall mounting
SIMATIC IOT2050 Starterkit
Product Information, 06/2021, A5E50831253-AA
15
3.3.2 Horizontal wall mounting
The device is suitable for horizontal or vertical wall mounting.
Requirement
• Two mounting brackets
• Two screws
• T8 screwdriver
Procedure for mounting
1.

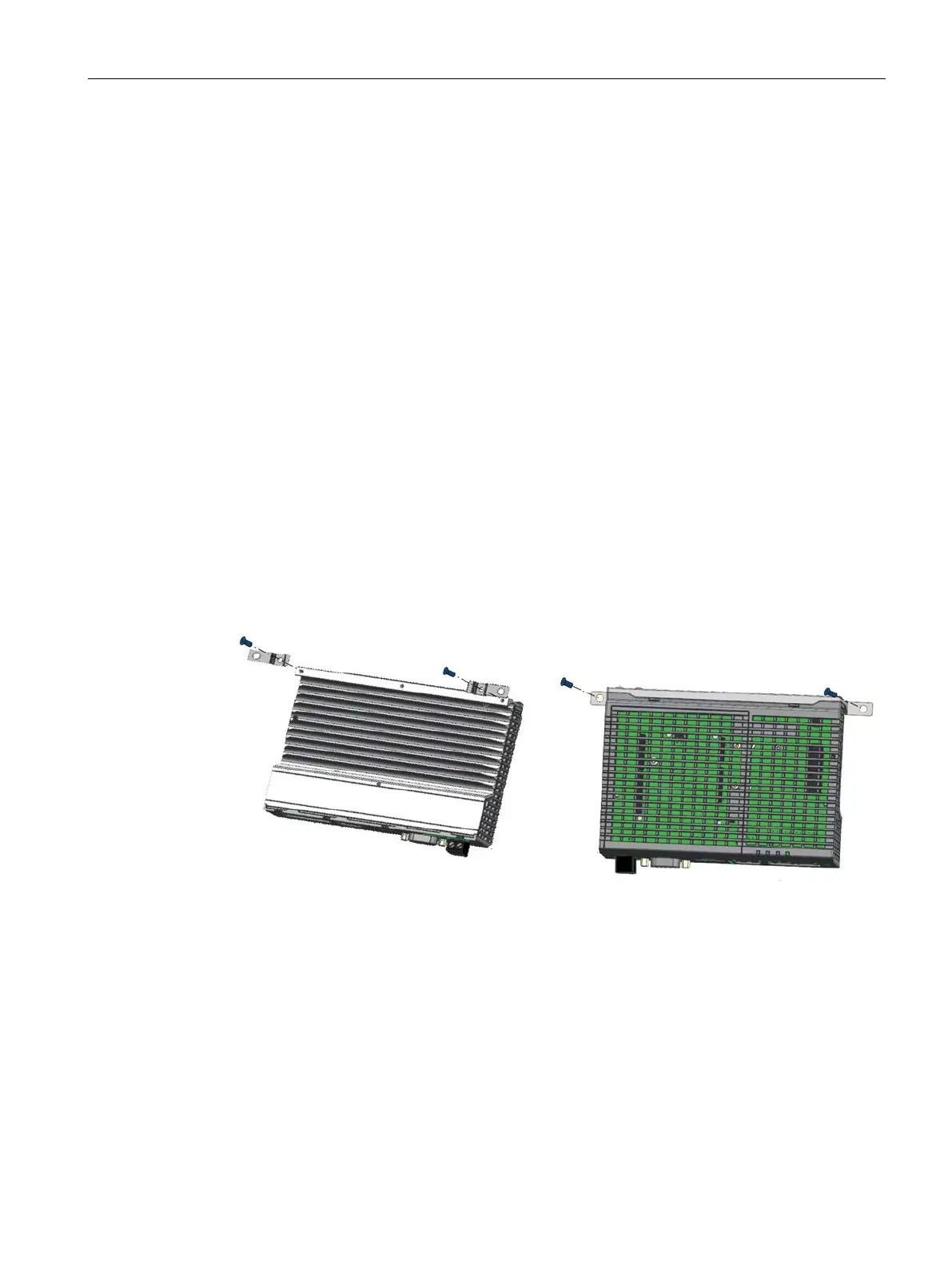

Lay the mounting brackets on the rear of the device.
2.
Fasten the brackets with supplied screws.
3.
Mark the bore holes, drill the required holes in the wall and fasten the device to the wall
using two screws.
