Mounting the device
3.2 Mounting on DIN rails
SIMATIC IOT2050 Starterkit
Product Information, 06/2021, A5E50831253-AA
13
3.2.2 Mounting on DIN rails
Mounting

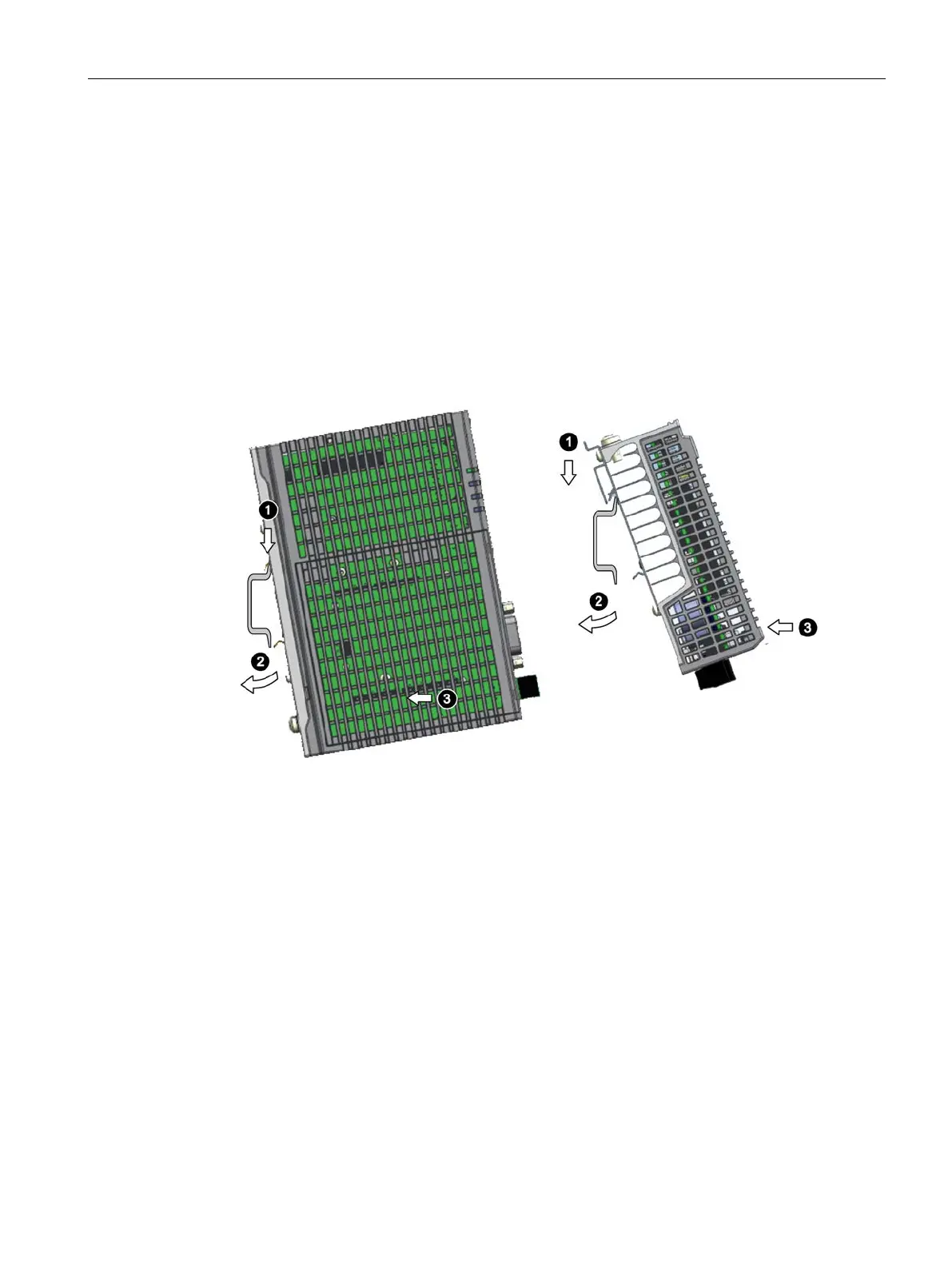

1.
Place the device and rail clamp on the upper edge of the standard profile rail at the position
shown and push the device down.
2.
Swing the rail clamp of the device from below through the standard profile rail.
3.
Push the device in the direction of the standard profile rail. You will hear the device click into
place.
Vertical
Horizontal
Removing
1. Push down the device until it is released by the rail clamp.
2. Swing the device out of the standard profile rail.
3. Lift the device up and off.
