Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC227G
Operating Instructions, 07/2022, A5E50059933-AC
35

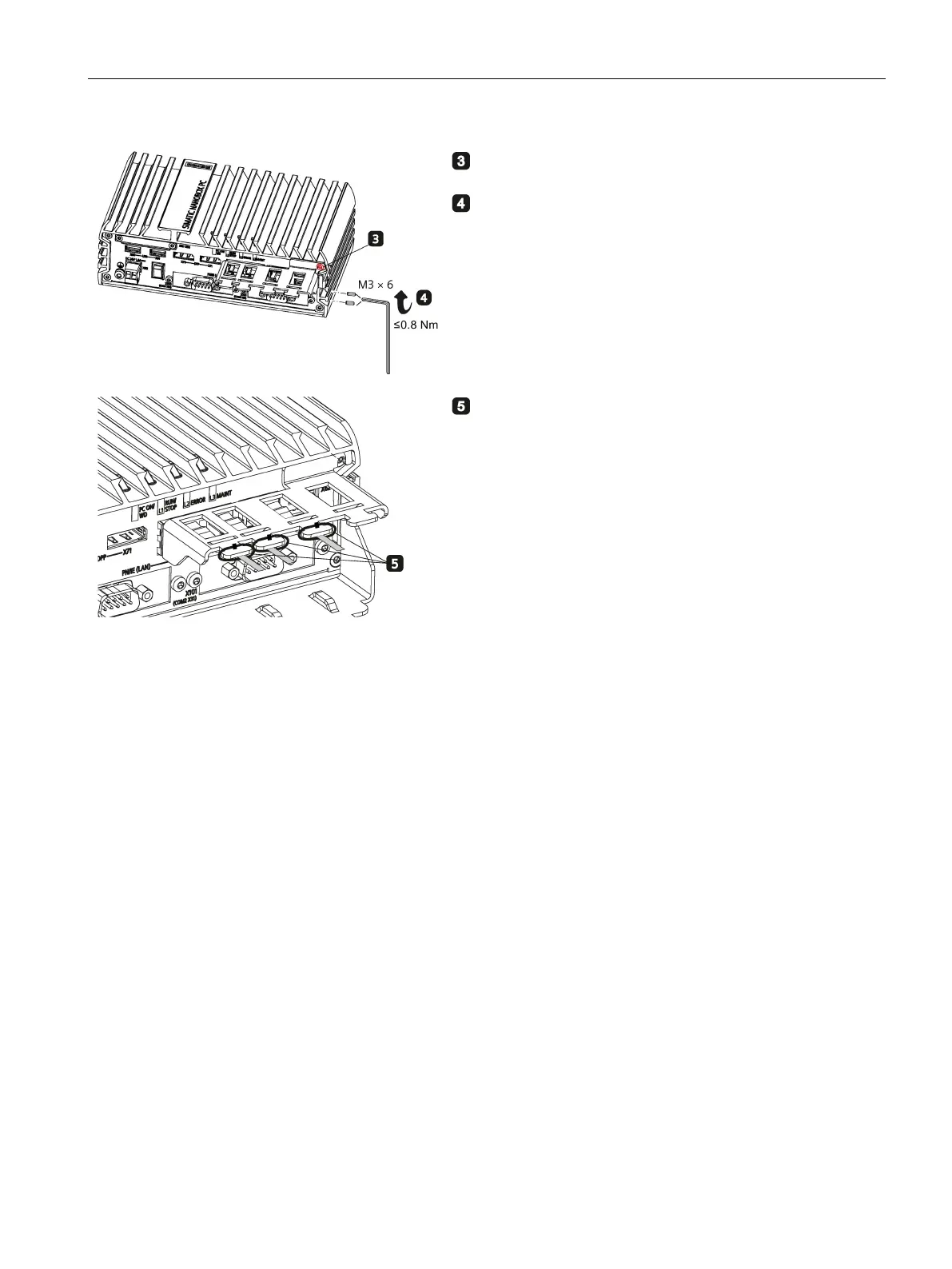

Secure the Ethernet connector strain to the device with
the M3 × 8 panhead screw from the accessory.
Fasten the Ethernet connector strain relief with two M3
× 6 setscrews on the right side.
Secure the Ethernet connector with cable ties for each
port.
