1.2 Structure of the devices
SIMATIC IPC227G
Operating Instructions, 07/2022, A5E50059933-AC
11
1.2 Structure of the devices
1.2.1 Views of the device

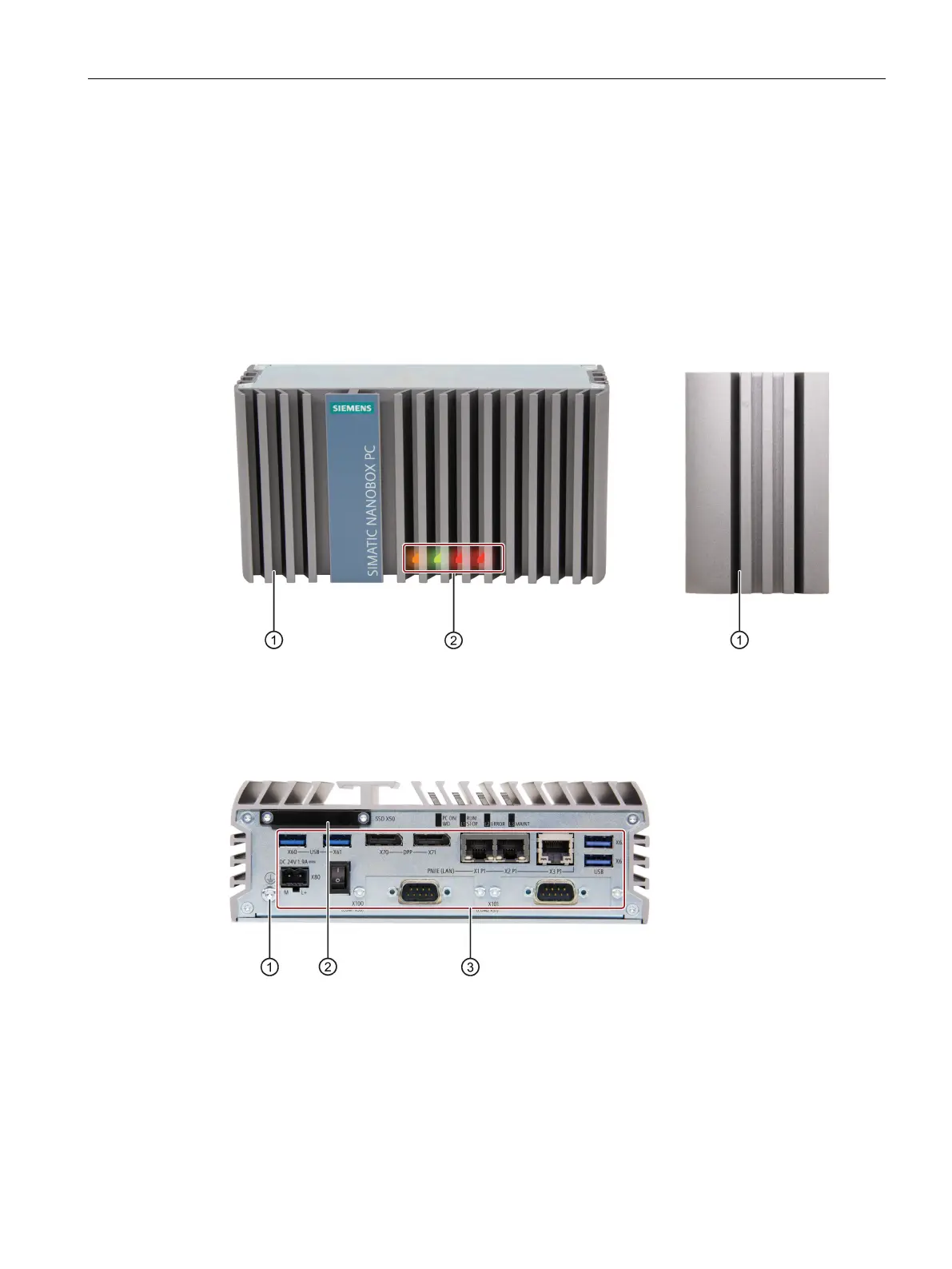

Front view and side view
The front view on the left is the standard mounting position. The side view is on the right.
①
Cooling fins
②
LED display
Bottom view
①
Protective conductor connection
②
M.2 SSD slot
③
Interfaces
