Siemens SIMATIC IPC227G - Hardware Descriptions

Technical specifications

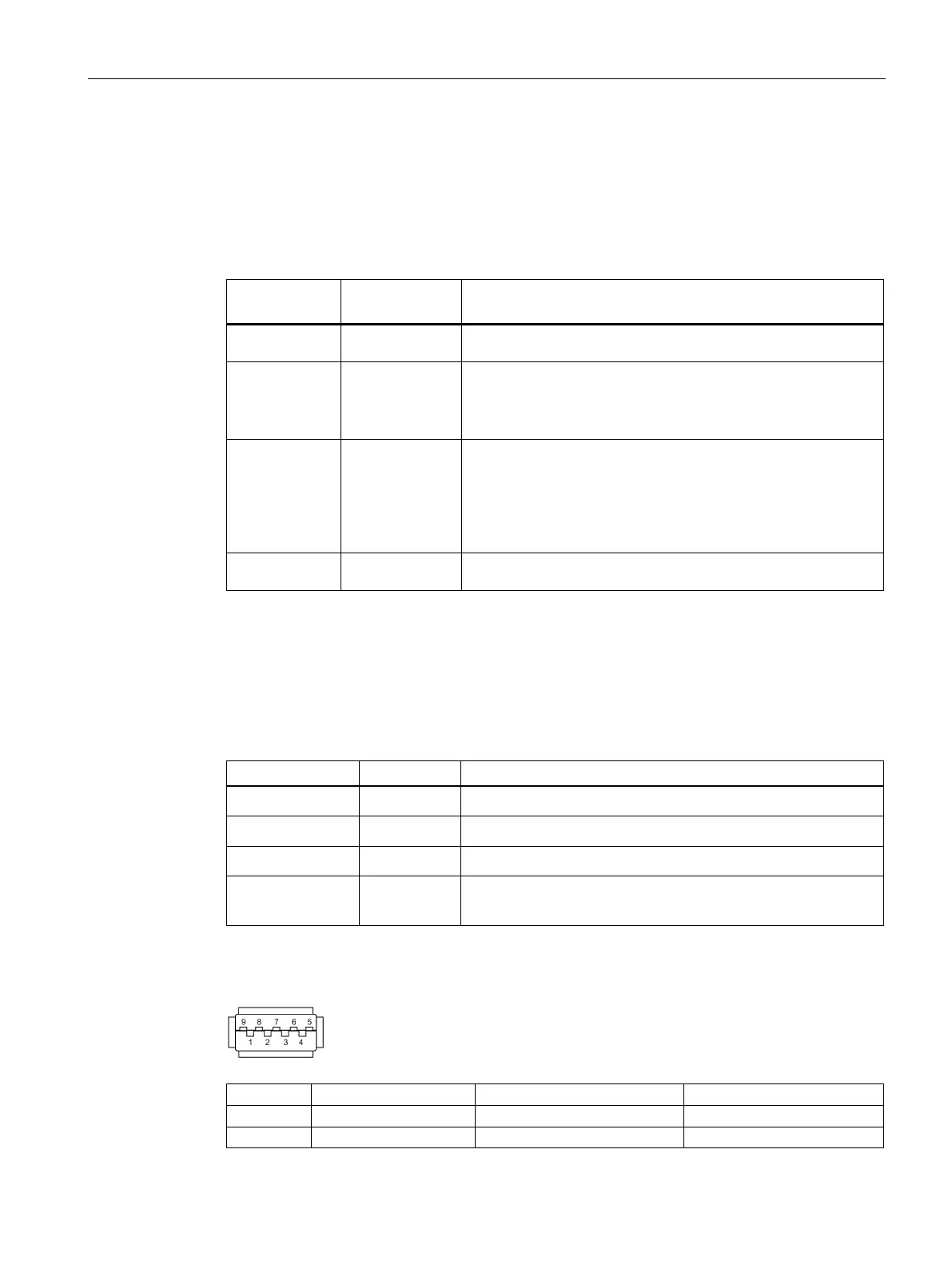

7.5 Hardware descriptions
SIMATIC IPC227G
Operating Instructions, 07/2022, A5E50059933-AC
77
7.5 Hardware descriptions
7.5.1 Technical features of the motherboard
Component /
port
Description Parameters
Chipset
Integrated in
CPU
• Intel Atom® x6000E series
CPU Intel Processor
• Intel Atom® x6211E Processor (up to 3.0 GHz)
• Intel Atom® x6413E Processor (up to 3.0 GHz)
• Intel Atom® x6414RE Processor (1.5 GHz)
Memory
DDR4 SDRAM
Memory expansion up to 16 GB with the following memory
modules:
• 4G DDR4 SDRAM
• 8G DDR4 SDRAM
• 16G DDR4 SDRAM
Graphics
Integrated
graphics
• Intel® UHD Graphics
7.5.2 External interfaces
7.5.2.1 Overview of external interfaces
Interface
Position
Description
USB
External
• 4 × USB 3.1 Gen2 (up to 10Gb/s)
Ethernet port
External
• 3 × RJ45 Ethernet 10/100/1000 Mbps
DisplayPort
External
• 2 × DP++
COM
External
9-pin D-sub, either:
• 2 × RS232/RS485/RS422
7.5.2.2 USB 3.1 port
Pin
Short name
Meaning
Input / output
1
VBUS
+ 5 V (Power switch)
Power out
2
D-
Data channel USB2
Input / output
